10mm To 1200mm Stainless Steel Knitted Wire Mesh Corrosion Resistance
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Strong Corrosion Resistance | Product Name | Knitted Wire Mesh |
|---|---|---|---|
| Standard | Q/SG12-1-79 Q/YSZZ-88-91 | Material | Stainless Steel |
| Type | High Penetrated Type | Model | 20-100, 20-160, 30-150,70-400, 170-600, 180-700 |
| Wire Diameter | 0.1mm To 0.3mm | Roll Width | 10mm To 1600mm |
| Roll Length | 10m To 100m | Applications | For The Separation Of Liquid In The Gas. |
| High Light | 1200mm Stainless Steel Knitted Wire Mesh,10mm Stainless Steel Knitted Wire Mesh,Corrosion Resistance stainless steel filter mesh |
||
Product Description
Abosorbed Type Knitted Wire Mesh Introduction:

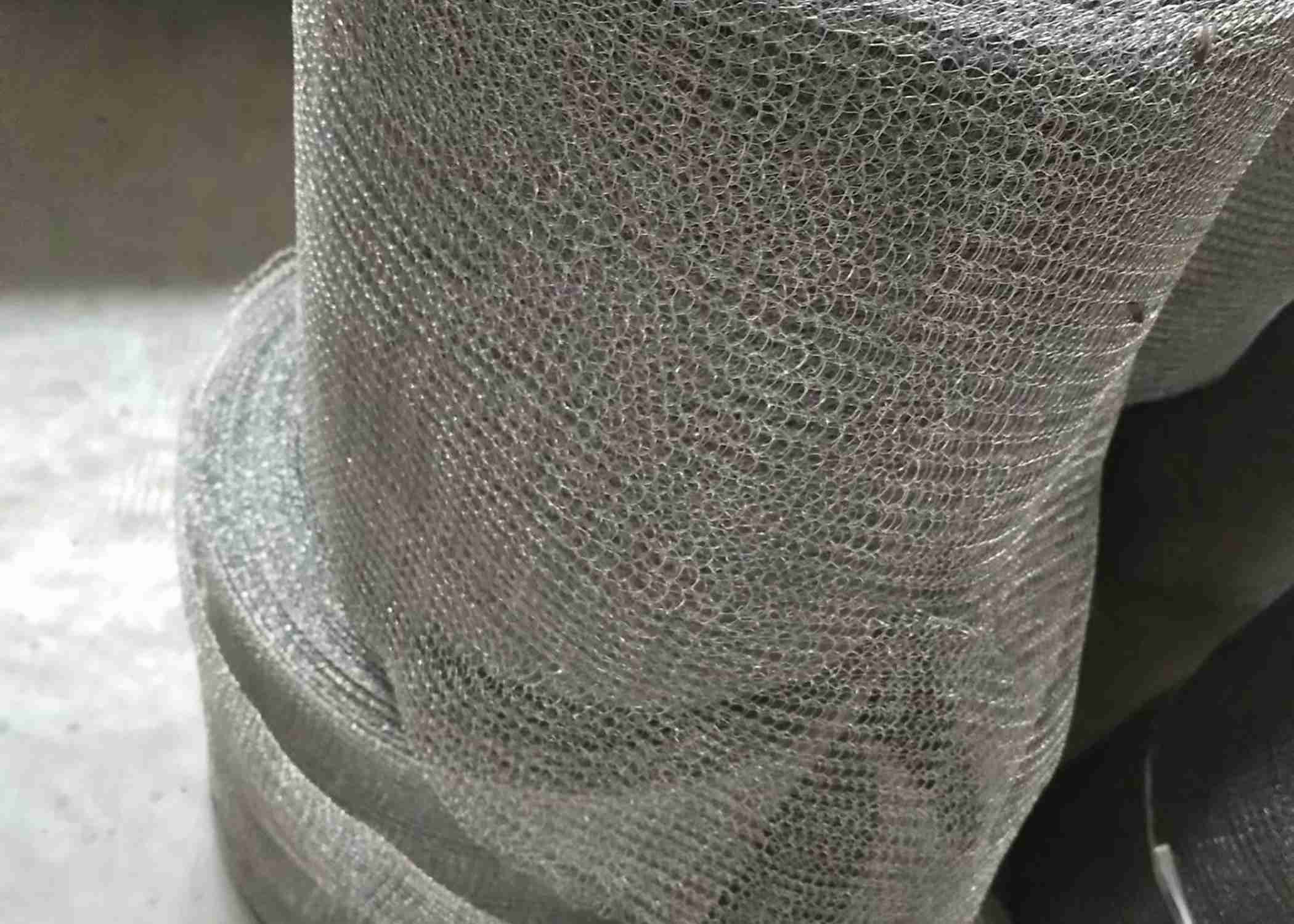

Stainless steel knitted mesh refers to knitted mesh made of stainless steel wire. It is a nonwoven wire mesh or cloth product. The stainless steel knitted mesh is the most widely used type among all material knitted meshes.
Stainless steel knitted mesh can be made of mono-filament or multi-filament. Mono-filament knitted mesh is the simplest type, which can be used in the common applications and the multi-filament knitted mesh has higher strength, which can be used in the heavy duty applications.
The stainless steel knitted mesh is manufactured using a knitting process where the mesh is formed from a series of interlocking loops. The original stainless steel knitted mesh is flattened when complete production, but it can be made into ginning knitted mesh by machine according to customers' requirements. Ginning knitted mesh has different shapes, width and depth of ginning, which can suit more applications. Additional, stainless steel knitted mesh can be compressed into compressed knitted mesh for better filtering efficiency.
Absorbed Type knitted wire mesh use 0.10-0.20mm wire, knitted into a mesh of interlocking loops, application for car seal, shock absorption, silencers, exhaust purification system and airbags important element etc. The mesh has the characteristics of high filtering accuracy, good penetrability, formability, flexibility, electrical conductivity, thermal conductivity etc.
Specifications:
| Model(N-M) | Material | Wire Diameter | Mesh Width | Mesh Length |
|
20-40,30-40,30-50, 30-60,30-80,50-120 |
Stainless Steel | 0.1-0.2mm | 10-120mm | 10-100m |
| Nickel | 0.1-0.2mm | 10-120mm | 10-100m | |
|
Notes: N-M model: it has "N" openings in the mesh width of "M" mm |
||||
Absorbed Type Detail:
Materials:
Stainless steel: 201, 202, 302, 304, 304L, 316, 316L, 321, 430, etc
Nickel: N2, N4, N6, Cr20Ni80, Monel400, Monel600
Properties:
Good distribution of pressure peaks;
Dispersion of air and moisture;
Easy washable and dryable;
Recyclable and non-poisonous.
Dispersion of air and moisture;
Easy washable and dryable;
Recyclable and non-poisonous.
Features:
Perfort performance in salty water;
Low pressure drop;
High collection efficiency;
Fast delivery and service;
Custom-designed for specific applications;
Efficient and economical for a wide range of applications;
It is convenient for installation, operation and maintenance.
High collection efficiency;
Fast delivery and service;
Custom-designed for specific applications;
Efficient and economical for a wide range of applications;
It is convenient for installation, operation and maintenance.
Applications:
*Used for car seal, shock absorption, silencers, exhaust purification system and airbags important element.
*Stainless steel knitted mesh has excellent shielding performance. It can be used in the cable shields as a chassis grounding and electrostatic discharge.
*Stainless steel knitted mesh can be installed onto the machine frames for EMI shielding in military electronic system.
*It can be made into knitted mesh mist eliminator for gas and liquid filtration.
*Stainless steel knitted mesh has outstanding filtering efficiency in various filtration device for air, liquid and gas filtration.
Packing:

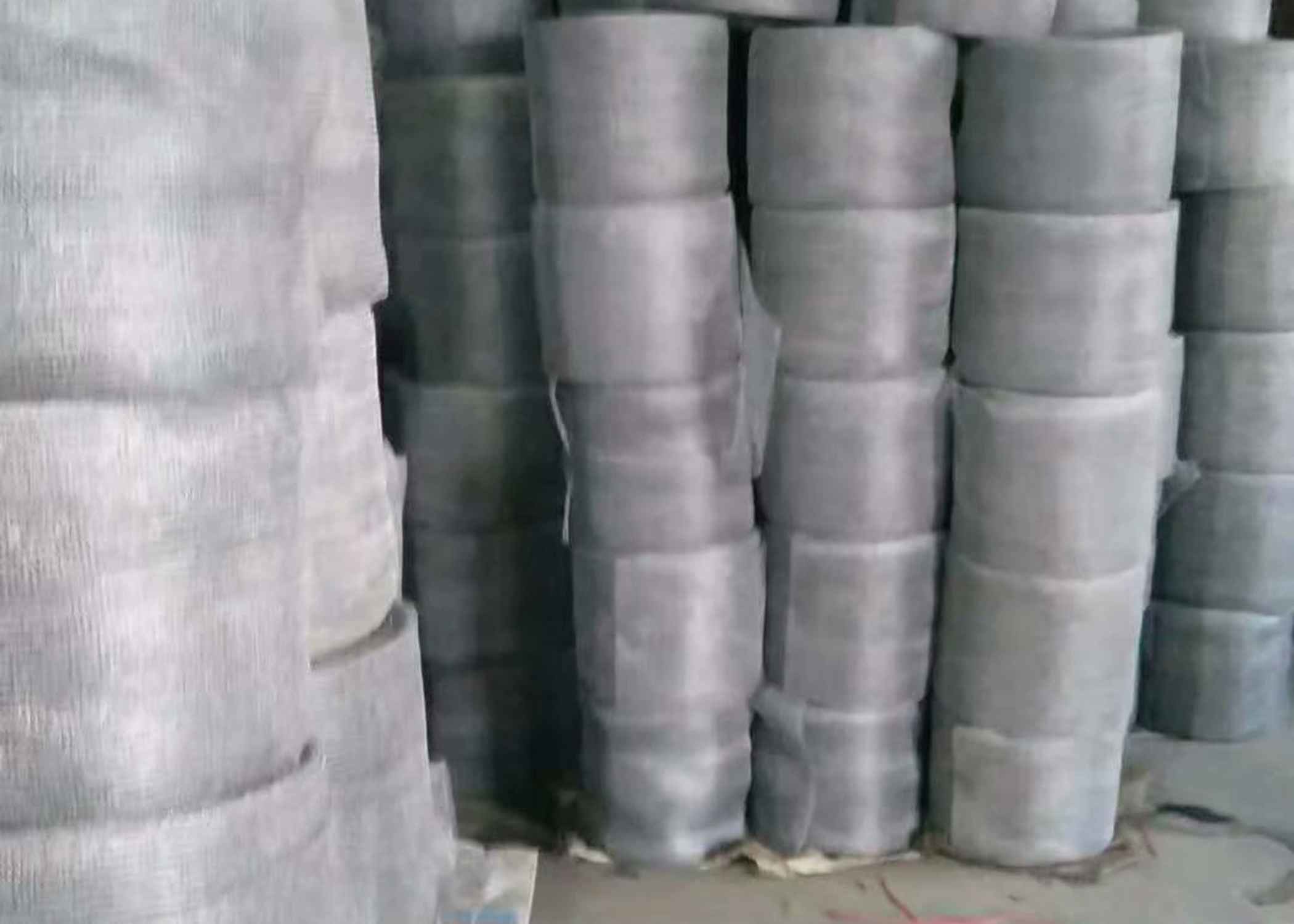

Knitted wire mesh is packed in rolls or plastic spools ,wrapped in moisture-proof paper or plastic film, sutside wooden cases or wooden pallet.
