SS201 SS202 Stainless Steel Filter Screen 10mm To 1600mm

  • SS201 SS202 Stainless Steel Filter Screen 10mm To 1600mm
  • SS201 SS202 Stainless Steel Filter Screen 10mm To 1600mm
  • SS201 SS202 Stainless Steel Filter Screen 10mm To 1600mm
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 50Rolls
Price Negotiable
Packaging Details Warpped with plastic film, then in wooden case or pallets.
Delivery Time a week
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Strong Corrosion Resistance Product Name Knitted Wire Mesh
Standard Q/SG12-1-79 Q/YSZZ-88-91 Material Stainless Steel
Type High Penetrated Type Model 20-100, 20-160, 30-150,70-400, 170-600, 180-700
Wire Diameter 0.1mm To 0.3mm Roll Width 10mm To 1600mm
Roll Length 10m To 100m Applications For The Separation Of Liquid In The Gas.
High Light

SS202 stainless steel filter screen

,

SS201 stainless steel filter screen

,

1600mm filter mesh stainless steel
Leave a Message
Product Description

High Penetrated Type Knitted Wire Mesh Introduction:



Knitted wire fabric is a wire fabric, which is made by a circular knitted machine. The various knitted material wires are knitted into a sleeve of continuous stocking of inter-linked wire loops.



The knitted mesh fabric has various materials, the main materials can be galvanized wire, stainless steel wire, copper wire, brass wire, nickel wire, monel wire and other alloy wires.



Knitted mesh fabric is normally knitted from round or flat wires ranging from various diameters. The round wire knitted mesh fabric is the most widely used type and the flat wire knitted mesh fabric can be used in the special applications according to customers' requirements.



The knitted mesh fabric can be made of mono-filament wires or multi-filament wires. The mono-filament knitted mesh fabric is simple and economical, the multi-filament knitted mesh fabric has higher strength to suitable heavy duty applications.



A variety of metal wire and non-metallic silk production, the specific absorption of evaporation, and high temperatures, strong corrosion resistance, the elimination of steam in the attach the gas or liquid droplets. Mainly used for processing wire mesh demister, for the separation of liquid in the gas. Also can be extrusion forming, used in the manufacture of filter equipment; Metal structured packing, sealing material; Damping; Electromagnetic interference shielding device, etc



High Penetrated Specifications:



Model(N-M) Material Wire Diameter Mesh Width Mesh Length





20-100, 20-160, 30-150,70-400, 170-600, 180-700

 Stainless Steel 0.1-0.3mm 10-1600mm 10-100m
Carbon Steel 0.1-0.3mm 50-500mm 10-100m
Copper Brass 0.1-0.3mm 100-500mm 10-100m
Aluminum 0.1-0.3mm 100-500mm 10-100m
Nickel 0.1-0.3mm 10-1600mm 10-100m
Notes:
1. N-M model: it has "N" openings in the mesh width of "M" mm.
2. Common wire diameter includes 0.20mm, 0.23mm, 0.25mm, 0.28mm.
3. The mesh can be made into single strand, double strand, multi-strand etc.
4. The surface include flattened and crimped.




Gas-Liquid Filter Mesh, High Penetrated(20-100/160, 30-150,70-400, 170-600, 180-700 Model)



Materials:



Stainless steel: 201, 202, 302, 304, 304L, 316, 316L, 321, 430, etc
Nickel: N2, N4, N6, Cr20Ni80, Monel400, Monel600



Properties:


Good distribution of pressure peaks;
Dispersion of air and moisture;
Easy washable and dryable;
Recyclable and non-poisonous.


Features:


A variety of metal wire and non-metallic silk production, the specific absorption of evaporation, and high temperatures, strong corrosion resistance, the elimination of steam in the attach the gas or liquid droplets.


Applications:



Mainly used for processing wire mesh demister, for the separation of liquid in the gas. Also can be extrusion forming, used in the manufacture of filter equipment; Metal structured packing, sealing material; Damping; Electromagnetic interference shielding device, etc.


Gas-Liquid Filter Mesh, High Penetrated(20-100/160, 30-150,70-400, 170-600, 180-700 Model)

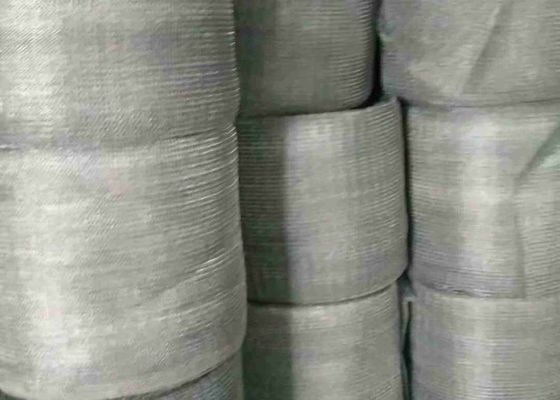

Packing:



Knitted wire mesh is packed in rolls or plastic spools ,wrapped in moisture-proof paper or plastic film, sutside wooden cases or wooden pallet.


Gas-Liquid Filter Mesh, High Penetrated(20-100/160, 30-150,70-400, 170-600, 180-700 Model)
