0.1mm To 0.3mm Stainless Steel Knitted Wire Mesh 300 Openings Per 600mm

Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 50Rolls
Price Negotiable
Packaging Details Warpped with plastic film, then in wooden case or pallets.
Delivery Time a week
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features High Filtering Accuracy, Good Penetrability, Flexibility, Electrical Conductivity, Thermal Conductivity, Etc Product Name Knitted Wire Mesh
Standard Q/SG12-1-79 Q/YSZZ-88-91 Material Stainless Steel, Aluminum, Etc
Type High Efficient Weaving Type Knitted
Wire Diameter 0.1mm To 0.3mm Roll Width 10mm To 1600mm
Roll Length 10m To 100m Applications Gas/ Liquid Separation, Gas/water Separation, Oil/water Separation, Etc
High Light

TENGLU 300 Model 0.3mm Stainless Steel Knitted Wire Mesh

,

TENGLU 300 Model 0.1mm Stainless Steel Knitted Wire Mesh

,

TENGLU 300 Model 0.1mm Stainless Steel mesh wire net

Leave a Message
Product Description

300 Openings Per 600mm Width High Efficient Stainless Steel Knitted Wire Mesh



High Efficient Knitted Wire Mesh Introduction:



Knitted mesh is made of either crochet or knitting of various wire materials including stainless steel, copper, synthetic fiber and other materials.



Knitted wire mesh products are applied to those applications including cryogenic, high temperature, corrosive atmosphere, heat conductive, high usage, or special service applications.



300 - 600 model knitted wire mesh use 0.10 - 0.30mm wire, knitted into a mesh of interlocking loops, application for liquid/ gas separation or gas/ water separation in the process of filtration, screening, distillation, evaporation and absorption etc. The mesh has the characteristics of high filtering accuracy, good penetrability, flexibility, electrical conductivity, thermal conductivity, etc.



Materials:



Stainless steel knitted mesh is often used as a protective final layer over the other knitted mesh gasket, materials on order to provide a wear-resistant contact surface.



Monel knitted wire mesh has good corrosion resistance in all extreme environments and it is reasonably conductive and is tough with high tensile strength, giving good wear characteristics.



Aluminum knitted wire mesh is mechanically weak and will readily take a compression set and this combined with its readiness to form a non-conducting oxide.



300-600 knitted mesh specs:



Model Material Wire Diameter Mesh Width Mesh Length
300-600 Stainless Steel 0.1-0.3mm 10-1600mm 10-100m
Carbon Steel 0.1-0.3mm 50-500mm 10-100m
Copper Brass 0.1-0.3mm 100-500mm 10-100m
Aluminum 0.1-0.3mm 100-500mm 10-100m
Nickel 0.1-0.3mm 10-1600mm 10-100m
Notes:
1. 300-600 model: it has 300 openings in the mesh width of 600mm.
2. Common wire diameter includes 0.20mm, 0.23mm, 0.25mm, 0.28mm.
3. The mesh can be made into single strand, double strand, multi-strand etc.
4. The surface include flattened and crimped.

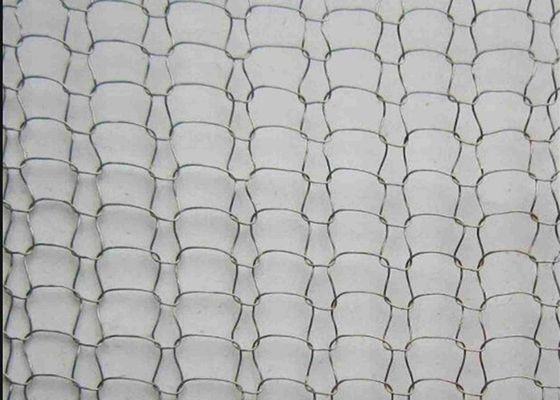

0.1mm To 0.3mm Stainless Steel Knitted Wire Mesh 300 Openings Per 600mm 0



Features:


Perfort performance in salty water;
Low pressure drop;
High collection efficiency;
Fast delivery and service;
Custom-designed for specific applications;
Efficient and economical for a wide range of applications;
It is convenient for installation, operation and maintenance.


Applications:



EMI and RFI shielding

Air filter in the cars or tractors

Gas/ liquid separation, gas/ water separation, oil/ water separation

Making cleaning ball

Medical devices

Textile fabrics

Rangehood filters

Decorative mesh


High Efficient Type Knitted Wire Mesh, 300-600 Model, 0.1-0.3mm Wire



Packing:

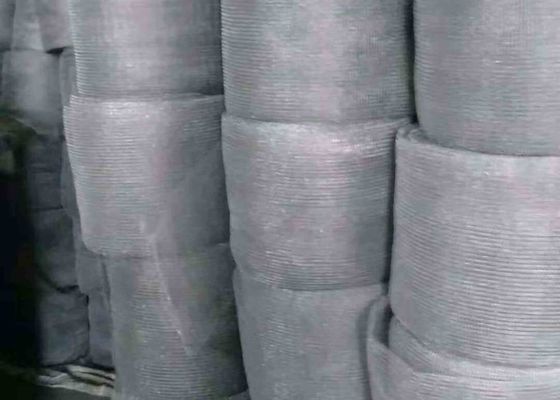

0.1mm To 0.3mm Stainless Steel Knitted Wire Mesh 300 Openings Per 600mm 2



Our factory Photos:



0.1mm To 0.3mm Stainless Steel Knitted Wire Mesh 300 Openings Per 600mm 3
