SUS316L Knitted Mesh 4mm X 4mm Hole 0.28mm Wire Stainless Steel Knitted Wire Mesh

Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 100KG
Price 600-1000 us dollar per ton
Packaging Details Seaworthy wooden packing or as your requirement.
Delivery Time For the mesh we have in stock,5 working days,custom made depend on quantity
Payment Terms T/T, Western Union, L/C
Supply Ability 500 rolls per week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features High Temperature Resistance Product Name Knitted Wire Mesh
Material Stainless Steel Wire 316L Hole Shape Irregular
Weave Style Crochet Weaving Hole 4mm X 4mm
Wire Diameter 0.28mm Length 10mm-50mm
Width 1m, 1.2m, Etc Application Making Demister, Oil Gas Industry
High Light

stainless steel knitted mesh

,

knitted wire mesh gasket

Leave a Message
Product Description

SUS316L Knitted Mesh 4mm X 4mm Hole 0.28mm Wire Stainless Steel Knitted Wire Mesh



Knit Wire Netting can be supplied in various stainless steel grades of flat crimped wire: 316SS, SS304, 302, AISI309 or 321. We mainly supply 316 Flat Wire Knitted Mesh, 304 or 302 Knit Mesh Rolls of Crimped Wire, SS309 Wire Mesh of Continuous Knitted Type. We also supply steel alloy wire mesh fabrics such as Teflon Knitted Mesh, Monel and Inconel Knitted Wire to meet specific filter requirements. We can compress our products into various forms. For example: cylindrical, round disc, ring, oval, rectangle, bottle-shaped, as well as various other special shapes.


The ss wire screen is primary filter material for fabricating of gaskets, demisters, eliminators, breathers, mufflers and other kinds of liquid gas separator filters. Various forms of supply include cylinder, round disc, ring, oval, rectangular and circular pad, and special shapes. 304 stainless steel knitted wire mesh of SWG Gauge 36 is popular for USA Market.



We produce all types of knitted mesh, Maschen knitted wire mesh products main have as follow:
Knitted mesh fabric, Knitted Wire Mesh Gaskets, Knitted Mesh Filter, Knitted Mesh Engine Breathers, Knitted Wire Mufflers, Knitted Wire Demister Pad, Knitted Mesh Mist Eliminator, Stainless Steel Knitted Mesh, Copper Knitted Wire, Knitted Wire Mesh Shielding.



The most current material qualities are:



• Bright steel
• Galvanized steel
• Stainless steel AISI-304 and AISI-316
• Aluminum
• Polypropylene
• Monel
• Refractory 25/20.



Product name

Knitted Wire Mesh

Material

ss304 316 316L wire, copper wire, galvanizes wire, nickel wire, alloy wire

Wire diameter

0.08mm to 0.3mm

Width

40mm to 600mm

Weight

10kg/roll, 15kg/roll, 20kg/roll, 30kg/roll, 50kg/roll

Surface type

Flattened, Wavy



Application:



Filter mesh for gas and liquid serves well in filtering and deleting the particle mixture in foam, liquid and air, by way of distillate, absorbing, evaporating and filtering process, in petroleum, chemicals, metallurgy, machine, pharmaceuticals, automobile and environmental protection.



Package wrapped with plastic film, then use wooden boxes or cartons.



Technical data of knitted wire mesh



A B C D F G
60 60 55 36 2x4 54,24
120 15 100 34 4,5x4/2,5x4 64,54
140 150 120 40 4,5x5,5/2,5x5,5 65
200 205 180 56 4x3,5 /2,5x3,5 105,4
250 260 240 65 4x4/3x4 123,22
410 420 380 94 5,2x3,5/3x3 198
560 565 490 102 7,5x5/2x5 195,16
560 560 470 128 5x4/2,5x4 270



•A:It is the standard width of the mesh going out of the machine ,once flattened (flattened pipe)

•B:It is the maximum width the machine can deliver.

•C:It is the minimum width the machine can deliver.

•D:Number of machine needles.

•F:Mesh opening .Also included in the nominal width.Two mesh openings machines:

The first :opening is that between two needles.

The second:is that of the hole of the needle itself ,i.e,there is one opening of each altrnatively.

•G:Weight of 1linear m of flat mesh,in grammes,0.26 mm wire ,AISI 304 ,mesh at rest not drawn



Knitted wire mesh is also called knitted wire or knitted mesh, Knotted mesh, Knotted wire, Knotted wire mesh, Chain mesh, Wire net, Wire netting, Silt mesh, Mesh stocking, Wire mesh stocking, Sock mesh, Stretchy mesh, Holey mesh, Mesh ribbon, Chicken wire, Metal bag, Knitted copper, Interwoven metal, Interlocked wire, Wire protector and Wine bottle mesh.

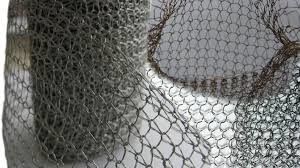

SUS316L Knitted Mesh 4mm X 4mm Hole 0.28mm Wire Stainless Steel Knitted Wire Mesh 0

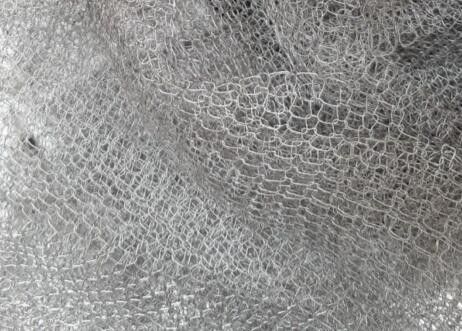

SUS316L Knitted Mesh 4mm X 4mm Hole 0.28mm Wire Stainless Steel Knitted Wire Mesh 1



Anping Qianpu Wire Mesh Products Co., Ltd.is a manufacture and exporter of stainless steel wire mesh product.

We are located in wire mesh industrial base Anping city,Hebei province in China.

Our product range is as below,

Stainless steel woven wire mesh

Welded wire mesh

Crimped wire mesh

Hexagonal wire mesh

Knitted wire mesh

Wire mesh filter

Window screen



It have been 15 years that we manufacture and export wire mesh product,our professional responsible attitude and our strictly management technique ensure us standing in the leading position of wire mesh industry.We welcome your enquiry.

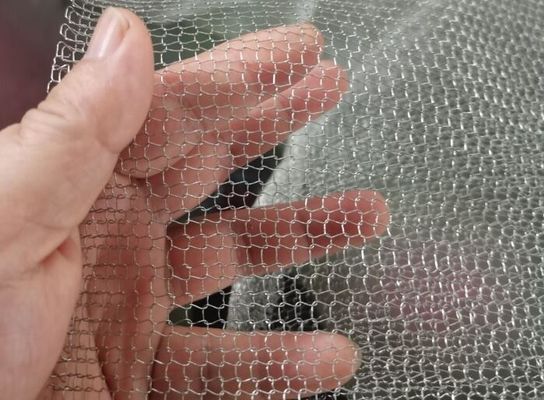

SUS316L Knitted Mesh 4mm X 4mm Hole 0.28mm Wire Stainless Steel Knitted Wire Mesh 2



In order to make an offer,please provide us below wire mesh specification information.

Material

Wire diameter

Mesh size

Wire mesh length

Wire mesh width

If it is possible,please also provide us weight per roll that you required.
