0.25mm 0.28mm Stainless Steel Knitted Wire Mesh 0.20mm 0.23mm

  • 0.25mm 0.28mm Stainless Steel Knitted Wire Mesh 0.20mm 0.23mm
  • 0.25mm 0.28mm Stainless Steel Knitted Wire Mesh 0.20mm 0.23mm
  • 0.25mm 0.28mm Stainless Steel Knitted Wire Mesh 0.20mm 0.23mm
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 50Rolls
Price Negotiable
Packaging Details Warpped with plastic film, then in wooden case or pallets.
Delivery Time a week
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Perfort Performance In Salty Water Product Name Knitted Wire Mesh
Standard Q/SG12-1-79 Q/YSZZ-88-91 Material Stainless Steel
Type Standard Type Weaving Type Knitted
Wire Diameter 0.20mm, 0.23mm, 0.25mm, 0.28mm Roll Width 10mm To 1600mm
Roll Length 10m To 100m Applications EMI And RFI Shielding, Air Filter, Gas/liquid Separation, Gas/water Separation, Oil/water Separation
High Light

0.28mm Stainless Steel Knitted Wire Mesh

,

0.25mm Stainless Steel Knitted Wire Mesh

,

0.23mm stainless steel wire mesh
Leave a Message
Product Description
Stainless Steel Knitted Wire Mesh, Mainly 0.20mm, 0.23mm, 0.25mm, 0.28mm Wire


Knitted Wire Mesh Introduction:


Knitted wire mesh is made of either crochet or knitting of various wire materials including stainless steel, copper, synthetic fiber and other materials.

Knitted wire mesh products are applied to those applications including cryogenic, high temperature, corrosive atmosphere, heat conductive, high usage, or special service applications.

Our knitted wire mesh is made from all material available in wire shapes for processing of the following parts:

Filters Oil and Air Breather Elements Catalytic Converter Mesh Insulator Blanket Mesh Mufflers and Silencers Copper Mesh Oil-Bath Separators Mist Elimination Pads Ground Wire Mesh


Specifications:



Specification of flat wire stainless steel knitted mesh
Wire Diameter (mm) Mesh Opening/ Loop Size (mm) Number of Needles Maximum Width (mm) Minimum Width (mm)
0.1 × 0.3 2 × 4 36 60 55
0.1 × 0.3 4.5 × 4 2.5 × 4 34 150 100
0.1 × 0.4 4.5 × 5.5 2.5 × 5.5 40 150 120
0.1 × 0.4 4 × 3.5 2.5 × 3.5 56 205 180
0.1 × 0.4 4 × 4 3 × 4 65 260 240
0.2 × 0.4 5.2 × 3.5 3 × 3.5 94 420 380
0.2 × 0.4 7.5 × 5 5 × 5 102 565 490
0.2 × 0.5 5 × 4 2.5 × 4 128 560 　470



Specification of round wire stainless steel knitted mesh
Wire Diameter (mm) Width (mm) Number of Stitches Per cm on Length Number of Stitches Per cm Across Lay Flat
0.08 – 0.18 6 - 300 3.5 4.4
0.16 40 - 600 2.4 3.5
0.18 - 0.35 30 - 1000 1.6 1.9
0.25 - 0.40 30 - 1000 1.6 0.74
0.4 - 0.5 100 - 350 0.5 0.5


Other Specifications according to your requests.



Main Materials Applied for Knitted Mesh:


Monel knitted wire mesh has good corrosion resistance in all extreme environments and it is reasonably conductive and is tough with high tensile strength, giving good wear characteristics.


Applications:


Knitted wire mesh made of tinned copper clad steel has the best shielding performance of all wires used in knitted meshes, combining low contact resistance with a small degree of permeability. It is not suitable for highly abrasive applications where the TIN plating may wear away to expose the copper. The corrosion resistance of tinned copper clad steel knitted wire mesh is suitable for most applications

Stainless steel knitted mesh is often used as a protective final layer over the other knitted mesh gasket, materials on order to provide a wear-resistant contact surface.

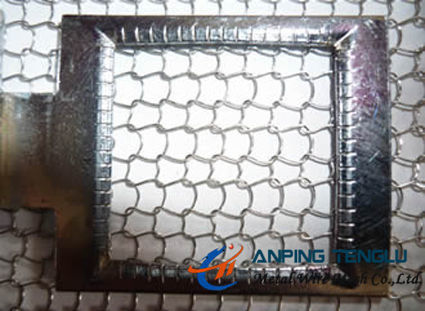

0.25mm 0.28mm Stainless Steel Knitted Wire Mesh 0.20mm 0.23mm 0


Advantages and benefit of stainless steel knitted mesh:

Corrosion resistance.
Alkali and acid resistance.
Rust resistance.
High temperature resistance.
Excellent shielding performance.
Outstanding filtering efficiency.
Durable and long service life.

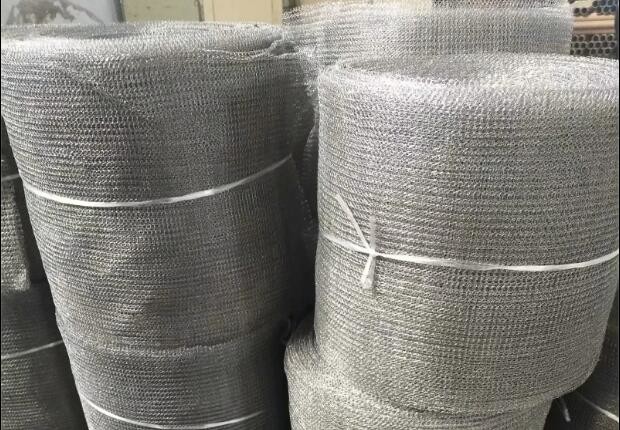

Packing:

0.25mm 0.28mm Stainless Steel Knitted Wire Mesh 0.20mm 0.23mm 1
