Stainless Steel Crimped Wire Mesh with High Loading Capacity Corrosion Resistant and Long Service Life

  • Stainless Steel Crimped Wire Mesh with High Loading Capacity Corrosion Resistant and Long Service Life
  • Stainless Steel Crimped Wire Mesh with High Loading Capacity Corrosion Resistant and Long Service Life
  • Stainless Steel Crimped Wire Mesh with High Loading Capacity Corrosion Resistant and Long Service Life
Place of Origin Hengshui,China
Brand Name QIANPU
Minimum Order Quantity 2 rolls
Price According to order quantity can be negotiable
Packaging Details inner kraft, outside plastic cloth, put into wooden pallet or case
Supply Ability 2300 Meter/Meters per Month
Product Details
Material Galvanized Steel Wire, Galvanized Stainless Technique Woven, Crimped
Weave Style Plain Crimped/flat Top Crimped, Plain Crimped/flat Top Crimped Wire Gauge 1-10mm
Roll Size 1mx30m, 1.22mx30m, 1.5mx30m Hole Shape Square
Sample Available Mesh Size Range 1-3200mesh
Highlight

High Loading Capacity Stainless Steel Crimped Wire Mesh

,

Corrosion Resistant Lock Crimped Wire Mesh

,

Long Service Life Vibrating Screen Mesh
Leave a Message
Product Description

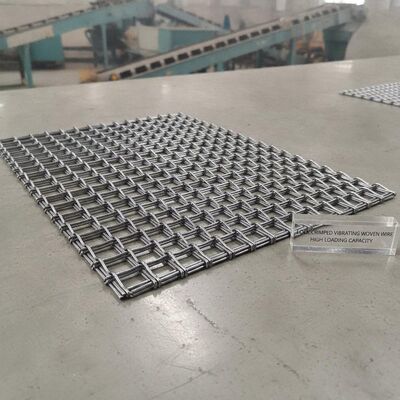

Lock Crimped Vibrating Woven Wire Screen Flat Panel High Loading Capacity
Product Overview

Lock-crimp is characterized by straight sections of wire connected by a well-defined "bump" at the wire intersections, locking the wires together to prevent wire movement. Manganese steel offers excellent abrasion resistance, while stainless steel provides superior corrosion resistance. Different materials are selected based on specific rock characteristics and application requirements.

Technical Specifications
  • Material: High carbon steel, Manganese steel (30Mn, 65Mn), Stainless steel wire
  • Wire Diameter/Thickness: 1.2mm to 22mm
  • Aperture Hole: Square mesh, rectangular mesh, slot mesh, triangle mesh
  • Common Square Mesh Sizes: 3mm, 5mm, 8mm, 10mm, 12mm, 18mm, 20mm, 32mm
  • Mesh Type: Flat panel, with hook, with hook plate, in roll

Our crusher screen mesh is available in different sizes, dimensions, and customized specifications to meet client requirements. Also known as vibrating screen woven mesh, crusher woven wire mesh, quarry vibrating screen mesh, or quarry screen mesh, it features wear resistance, high frequency capability, and extended service life.

Key Features
Great strength and solid structure
Good rust and corrosion resistance
High loading capacity
Long service life
Beautiful surface finish
Applications
  • Vibrating screen and filter element
  • Infill panel and barbecue grill
  • Baking rack and construction industries
  • Mining, chemical, and petroleum applications
  • Decoration and artwork design
Edge Types

Vibrating screen mesh can be produced with raw edge or hooked edge configurations.

Stainless steel wire mesh edge types and configurations
Stainless Steel Wire Mesh Specifications
Mesh/inch Wire Diameter (mm) Aperture (mm) Mesh/inch Wire Diameter (mm) Aperture (mm)
2mesh1.8010.9060mesh0.150.273
3mesh1.606.86670mesh0.140.223
4mesh1.205.1580mesh0.120.198
5mesh0.914.1790mesh0.110.172
6mesh0.803.433100mesh0.100.154
8mesh0.602.575120mesh0.080.132
10mesh0.551.990140mesh0.070.111
12mesh0.501.616150mesh0.0650.104
14mesh0.451.362160mesh0.0650.094
16mesh0.401.188180mesh0.0530.088
18mesh0.351.060200mesh0.0530.074
20mesh0.300.970250mesh0.040.061
26mesh0.280.696300mesh0.0350.049
30mesh0.250.596325mesh0.030.048
40mesh0.210.425350mesh0.030.042
50mesh0.190.318400mesh0.0250.0385

Width of Stainless Steel Wire Mesh: 0.6m - 1.5m

About Our Company

Anping Qianpu Wire Mesh Products Co., Ltd. is a manufacturer and exporter of stainless steel wire mesh products, located in the wire mesh industrial base of Anping City, Hebei Province, China.

Product Range:

  • Stainless steel woven wire mesh
  • Welded wire mesh
  • Crimped wire mesh
  • Hexagonal wire mesh
  • Knitted wire mesh
  • Wire mesh filter
  • Window screen

With 15 years of manufacturing and export experience, our professional, responsible attitude and strict technical management ensure our leading position in the wire mesh industry.

Quotation Requirements

To provide an accurate quotation, please provide the following specifications:

  • Material
  • Wire diameter
  • Mesh size
  • Wire mesh length
  • Wire mesh width
  • Weight per roll (if applicable)
Stainless steel wire mesh manufacturing and product showcase

We specialize in the manufacture and export of stainless steel wire mesh products. Contact us for professional service and guaranteed on-time delivery.
