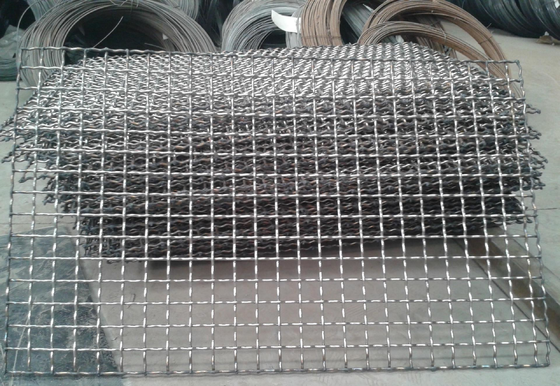

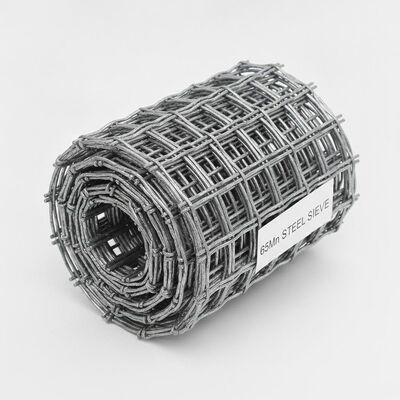

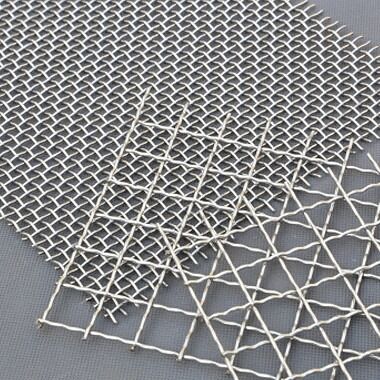

65mn Square Hole Galvanized Steel Crimped Wire Mesh for Mine Sieving and Decorative Use
Product Details
| Material | SS 304 316 304L 316L | Type | Crimped Wire Mesh |
|---|---|---|---|
| Weave Style | Plain Crimped/flat Top Crimped, Plain Crimped/flat Top Crimped | Feature | High Quality With Good Prices |
| Length | 30m Or Customized | Width | 1m, 1.2m, 2m Or Customized |
| Hole Shape | Square | Sample | Available |
| Highlight | 65mn Square Hole Crimped Wire Mesh,Galvanized Steel Crimped Wire Mesh,Mine Sieving Square Hole Wire Mesh |
||
Product Description
Decorative Crimped Woven 65mn Square Hole Mine Sieving Galvanized Steel Material
Decorative crimped mesh for wall applications featuring 65mm square hole crimped wire cloth. This mine sieving galvanized steel crimp wire mesh offers exceptional durability and performance.
Product Specifications
Crimped Wire Mesh Wire Diameter: Thin crimped wire mesh ranges from 0.5mm-2.0mm, while thick crimped wire mesh can be 5mm-22mm.
Crimped Wire Mesh Features: Beautiful and durable structure with various weaving patterns including locked-shaped, bi-directional plain weave, single wave weave, knit two-way flat, two-way wave weaving, and knitting rectangular hole.
Crimped Wire Mesh Applications: Widely used in mining, petroleum, chemical, construction, machinery accessories, protective net, packing net, wire meshes, mesh grill, sintering furnace with a net, mesh hardware, arts and crafts with the network, vibration mesh, mesh basket, food machinery with a net, wall net, cooking with a net, food processing, highways, railways, and infrastructure applications.
Stainless Steel Crimped Wire Mesh Specifications
| Wire Gauge (SWG) | Wire Diameter (mm) | Mesh/Inch | Aperture (mm) | Weight (kg) |
|---|---|---|---|---|
| 6 | 4.8 | 1 | 20.6 | 11.5 |
| 8 | 4.05 | 2 | 9 | 16.5 |
| 10 | 3.2 | 2 | 10 | 10.5 |
| 12 | 2.6 | 3 | 5.9 | 10.5 |
| 14 | 2.0 | 3 | 6.5 | 6 |
| 16 | 1.6 | 4 | 5 | 5.5 |
| 17 | 1.4 | 5 | 5.1 | 5.0 |
| 18 | 1.2 | 5 | 4 | 3.6 |
| 19 | 1.0 | 6 | 3.2 | 3.0 |
| 21 | 0.8 | 7 | 2.8 | 2.3 |
| 22 | 0.7 | 8 | 2.5 | 2 |
Stainless Steel Wire Mesh Specifications
| Mesh/inch | Wire Diameter (mm) | Aperture (mm) | Mesh/inch | Wire Diameter (mm) | Aperture (mm) | |
|---|---|---|---|---|---|---|
| 2mesh | 1.80 | 10.90 | 60mesh | 0.15 | 0.273 | |
| 3mesh | 1.60 | 6.866 | 70mesh | 0.14 | 0.223 | |
| 4mesh | 1.20 | 5.15 | 80mesh | 0.12 | 0.198 | |
| 5mesh | 0.91 | 4.17 | 90mesh | 0.11 | 0.172 | |
| 6mesh | 0.80 | 3.433 | 100mesh | 0.10 | 0.154 | |
| 8mesh | 0.60 | 2.575 | 120mesh | 0.08 | 0.132 | |
| 10mesh | 0.55 | 1.990 | 140mesh | 0.07 | 0.111 | |
| 12mesh | 0.50 | 1.616 | 150mesh | 0.065 | 0.104 | |
| 14mesh | 0.45 | 1.362 | 160mesh | 0.065 | 0.094 | |
| 16mesh | 0.40 | 1.188 | 180mesh | 0.053 | 0.088 | |
| 18mesh | 0.35 | 1.060 | 200mesh | 0.053 | 0.074 | |
| 20mesh | 0.30 | 0.970 | 250mesh | 0.04 | 0.061 | |
| 26mesh | 0.28 | 0.696 | 300mesh | 0.035 | 0.049 | |
| 30mesh | 0.25 | 0.596 | 325mesh | 0.03 | 0.048 | |
| 40mesh | 0.21 | 0.425 | 350mesh | 0.03 | 0.042 | |
| 50mesh | 0.19 | 0.318 | 400mesh | 0.025 | 0.0385 |
Width of Stainless Steel Wire Mesh: 0.6m-1.5m
About Our Company
Anping Qianpu Wire Mesh Products Co., Ltd. is a manufacturer and exporter of stainless steel wire mesh products. We are located in the wire mesh industrial base of Anping city, Hebei province in China.
Our Product Range
• Stainless steel woven wire mesh
• Welded wire mesh
• Crimped wire mesh
• Hexagonal wire mesh
• Knitted wire mesh
• Wire mesh filter
• Window screen
• Welded wire mesh
• Crimped wire mesh
• Hexagonal wire mesh
• Knitted wire mesh
• Wire mesh filter
• Window screen
With 15 years of experience in manufacturing and exporting wire mesh products, our professional responsible attitude and strict management techniques ensure we maintain a leading position in the wire mesh industry.
Request a Quote
To receive an offer, please provide the following wire mesh specification information:
- Material
- Wire diameter
- Mesh size
- Wire mesh length
- Wire mesh width
If possible, please also provide the required weight per roll.
We specialize in the manufacture and export of stainless steel wire mesh products. If you have any requests, please contact us. We provide professional service and guarantee on-time delivery.
