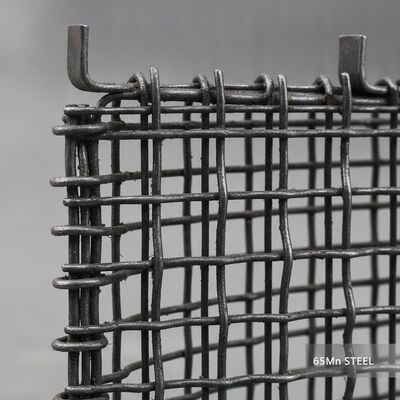

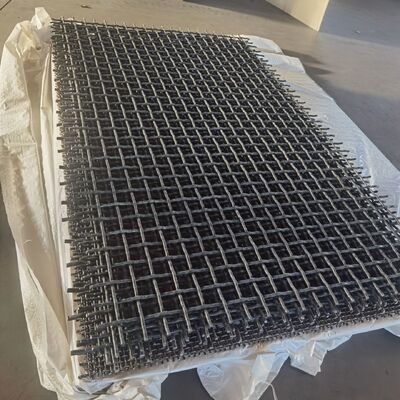

65 Manganese Steel Hooked Crimped Wire Mesh with Square Hole for Stone Crusher Vibrating Screen Mesh
Product Details
| Material | SS 304 316 304L 316L | Type | Crimped Wire Mesh |
|---|---|---|---|
| Weave Style | Plain Crimped/flat Top Crimped, Plain Crimped/flat Top Crimped | Feature | High Quality With Good Prices |
| Length | 30m Or Customized | Width | 1m, 1.2m, 2m Or Customized |
| Hole Shape | Square | Sample | Available |
| Highlight | 65 Manganese Steel Crimped Wire Mesh,Hooked Crimped Vibrating Screen Mesh,Square Hole Stone Crusher Screen Mesh |
||
Product Description
65 Manganese Steel Hooked Crimped Wire Cloth Stone Crusher Vibrating Screen Mesh
Vibrating wire mesh screens crimped wire mesh, crimped wire mesh sand gravel crusher hooked vibrating sieve screen mesh.
Hooked Vibrating Screen Crimped Mesh
Steel Screen Mesh for Crusher Machine, Stone Crusher Screen Mesh
- Material: Black wire, spring steel wire, manganese steel wire and stainless steel wire, 65 Mn materials
- Surface treatment: Galvanized or painted
- Wire diameter: 0.71mm - 12.5mm
- Mesh size: 1mm - 100mm
- Hole type: Square, rectangular and long slot
Features: Longer life, high adhesion, excellent efficiency of mechanical splice.
Heavy duty crimped wire mesh are the most widely used screens in the aggregate and mining industries, due to their high screening area, precision and price ratio.
Crimped wire mesh screen (mining screen wire mesh, square wire mesh) are manufactured in different geometries (square or slotted meshes) and different weaving styles (double crimped, flat mesh, etc.).
Stainless Steel Crimped Wire Mesh Specifications
| Wire Gauge (SWG) | Wire Diameter (mm) | Mesh/Inch | Aperture (mm) | Weight (kg) |
|---|---|---|---|---|
| 6 | 4.8 | 1 | 20.6 | 11.5 |
| 8 | 4.05 | 2 | 9 | 16.5 |
| 10 | 3.2 | 2 | 10 | 10.5 |
| 12 | 2.6 | 3 | 5.9 | 10.5 |
| 14 | 2.0 | 3 | 6.5 | 6 |
| 16 | 1.6 | 4 | 5 | 5.5 |
| 17 | 1.4 | 5 | 5.1 | 5.0 |
| 18 | 1.2 | 5 | 4 | 3.6 |
| 19 | 1.0 | 6 | 3.2 | 3.0 |
| 21 | 0.8 | 7 | 2.8 | 2.3 |
| 22 | 0.7 | 8 | 2.5 | 2 |
Stainless Steel Wire Mesh Specifications
| Mesh/inch | Wire Diameter (mm) | Aperture (mm) | Mesh/inch | Wire Diameter (mm) | Aperture (mm) | |
|---|---|---|---|---|---|---|
| 2mesh | 1.80 | 10.90 | 60mesh | 0.15 | 0.273 | |
| 3mesh | 1.60 | 6.866 | 70mesh | 0.14 | 0.223 | |
| 4mesh | 1.20 | 5.15 | 80mesh | 0.12 | 0.198 | |
| 5mesh | 0.91 | 4.17 | 90mesh | 0.11 | 0.172 | |
| 6mesh | 0.80 | 3.433 | 100mesh | 0.10 | 0.154 | |
| 8mesh | 0.60 | 2.575 | 120mesh | 0.08 | 0.132 | |
| 10mesh | 0.55 | 1.990 | 140mesh | 0.07 | 0.111 | |
| 12mesh | 0.50 | 1.616 | 150mesh | 0.065 | 0.104 | |
| 14mesh | 0.45 | 1.362 | 160mesh | 0.065 | 0.094 | |
| 16mesh | 0.40 | 1.188 | 180mesh | 0.053 | 0.088 | |
| 18mesh | 0.35 | 1.060 | 200mesh | 0.053 | 0.074 | |
| 20mesh | 0.30 | 0.970 | 250mesh | 0.04 | 0.061 | |
| 26mesh | 0.28 | 0.696 | 300mesh | 0.035 | 0.049 | |
| 30mesh | 0.25 | 0.596 | 325mesh | 0.03 | 0.048 | |
| 40mesh | 0.21 | 0.425 | 350mesh | 0.03 | 0.042 | |
| 50mesh | 0.19 | 0.318 | 400mesh | 0.025 | 0.0385 |
Width of Stainless Steel Wire Mesh: 0.6m - 1.5m
About Our Company
Anping Qianpu Wire Mesh Products Co., Ltd. is a manufacturer and exporter of stainless steel wire mesh products. We are located in the wire mesh industrial base Anping city, Hebei province in China.
Our product range includes:
- Stainless steel woven wire mesh
- Welded wire mesh
- Crimped wire mesh
- Hexagonal wire mesh
- Knitted wire mesh
- Wire mesh filter
- Window screen
We have 15 years of experience manufacturing and exporting wire mesh products. Our professional, responsible attitude and strict management techniques ensure we maintain a leading position in the wire mesh industry.
Request a Quote
To receive an offer, please provide the following wire mesh specification information:
- Material
- Wire diameter
- Mesh size
- Wire mesh length
- Wire mesh width
If possible, please also provide the required weight per roll.
We specialize in manufacturing and exporting stainless steel wire mesh products. If you have any requests, please contact us. We provide professional service and guarantee on-time delivery.
