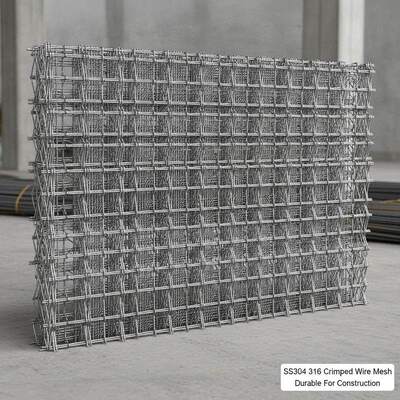

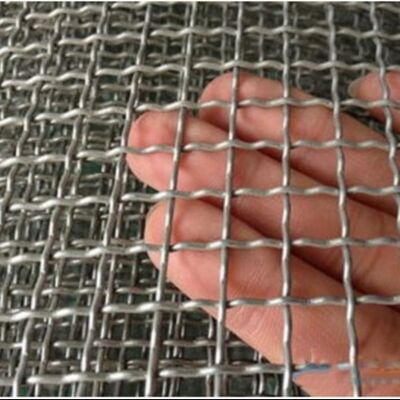

SS304 316 Stainless Steel Crimped Wire Mesh with Square Hole and 30m Length for Construction
Product Details
| Material | SS 304 316 304L 316L | Type | Crimped Wire Mesh |
|---|---|---|---|
| Weave Style | Plain Crimped/flat Top Crimped, Plain Crimped/flat Top Crimped | Feature | High Quality With Good Prices |
| Length | 30m Or Customized | Width | 1m, 1.2m, 2m Or Customized |
| Hole Shape | Square | Sample | Available |
| Highlight | SS304 316 Crimped Wire Mesh,Square Hole Wire Mesh,30m Length Stainless Steel Mesh |
||
Product Description
SS304 316 Crimped Wire Mesh Reinforcing Stainless Steel Durable For Construction
SS304 316 reinforcing stainless steel wire mesh / Crimped Wire Mesh for construction, crimped stainless steel wire mesh
Materials & Weaving
Material: iron, carbon steel, copper, stainless steel 201, 304, 316L.
Weave: Copper plain weave crimped wire mesh is woven using wire crimped prior to weaving. The crimps are made at the points the shute and warp wires intersect which secures the wire, thereby stabilizing the cloth and preventing the wire from intermediate crimp.
Applications
Stainless steel/copper BBQ grill net crimped wire mesh is widely used in:
- BBQ baking grill net
- Filtering and protection in petroleum, chemical industry and ocean industries with acid and alkali environment
- Glass reinforcer
- Various baskets for life and industrial use
- Art crafts
- Baskets used in kitchen and refrigerator
Key Features
Corrosion resistance
Anti-acid and alkali
Anti-high temperature
Good filter performance
Long using life
Technical Specifications
Materials: Stainless Steel Wire, Brass wire, High carbon steel wire, Galvanized iron wire
Weaving Patterns: Weaving after crimping, double crimp, flat top, inter crimp, rectangular slot and long slot
Applications
- Vibrating tray screens
- High pressure filters
- Cooling circuit filters
- Grids and trays for thermal treatments
- Decoration
Stainless Steel Crimped Wire Mesh Specifications
| Wire Gauge (SWG) | Wire Diameter (mm) | Mesh/Inch | Aperture (mm) | Weight (kg) |
|---|---|---|---|---|
| 6 | 4.8 | 1 | 20.6 | 11.5 |
| 8 | 4.05 | 2 | 9 | 16.5 |
| 10 | 3.2 | 2 | 10 | 10.5 |
| 12 | 2.6 | 3 | 5.9 | 10.5 |
| 14 | 2.0 | 3 | 6.5 | 6 |
| 16 | 1.6 | 4 | 5 | 5.5 |
| 17 | 1.4 | 5 | 5.1 | 5.0 |
| 18 | 1.2 | 5 | 4 | 3.6 |
| 19 | 1.0 | 6 | 3.2 | 3.0 |
| 21 | 0.8 | 7 | 2.8 | 2.3 |
| 22 | 0.7 | 8 | 2.5 | 2 |
Weave Selections
Double-Crimp
Flat-Top
Improves material flow with flatter surface than other weaves. Lock weave maintains accurate openings. Also called "Smooth-Top". Most efficient weave for heavy-duty screens when ratio between width and wire diameter permits its use. As a general rule, opening width should be at least 5 times the wire diameter. It is extremely durable because each wire is locked in place to maintain accuracy of openings for the life of the screen.
Tri-Loc
Long openings will keep sticky or wet material flowing freely. Weave holds wires securely yet permits slight vibration to keep openings clear. This specification is often called "Triple Shoot" and is also referred to as "Vibro Type Weave".
Efficient and long wearing in a variety of applications. Providing a level, smooth surface, the Smooth weave employs a type of rigidity interlocked crimp that insures maintenance of accurate, uniform openings. When used in the correct application, because of the level weave, there is considerable reduction of friction from material passing over the screen and, in many cases, far less wear from abrasion than in screens made with surface crimps.
About Our Company
Anping Qianpu Wire Mesh Products Co., Ltd. is a manufacturer and exporter of stainless steel wire mesh products. We are located in the wire mesh industrial base Anping city, Hebei province in China.
Our Product Range
- Stainless steel woven wire mesh
- Welded wire mesh
- Crimped wire mesh
- Hexagonal wire mesh
- Knitted wire mesh
- Wire mesh filter
- Window screen
With 15 years of experience in manufacturing and exporting wire mesh products, our professional responsible attitude and strict management techniques ensure we maintain a leading position in the wire mesh industry.
For Quotation
Please provide the following wire mesh specification information:
- Material
- Wire diameter
- Mesh size
- Wire mesh length
- Wire mesh width
- Weight per roll (if required)
We are specialized in manufacturing and exporting stainless steel wire mesh products. If you have any requests, please contact us. We will provide professional service and guarantee on-time delivery.
