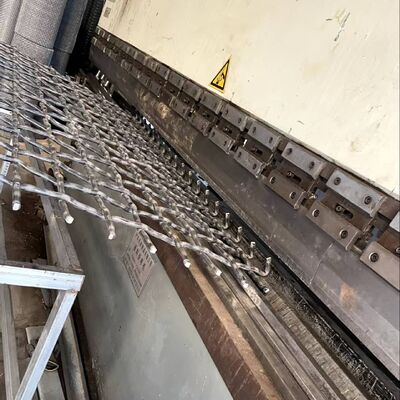

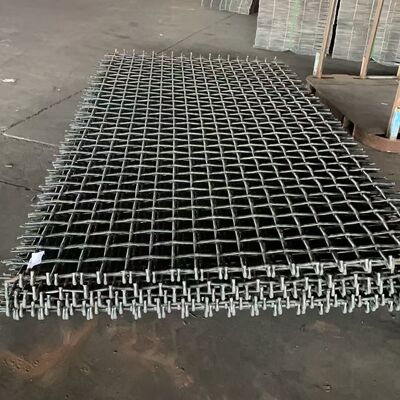

Corrosion Resistant Anti-Acid and Alkali Long Using Life Stainless Steel Crimped Wire Mesh for Vibrating Screen
Product Details
| Hole Shape | Square | Length | 30m Or Customized |
|---|---|---|---|
| Width | 1m, 1.2m, 2m Or Customized | Weave Style | Plain Crimped/flat Top Crimped |
| Material | SS 304 316 304L 316L | Wire Diameter | 4.8mm, 4.05mm, 3.2mm, 2.6mm, 2.0mm, 1.6mm, 1.4mm, 1.2mm, 1.0mm, 0.8mm, 0.7mm |
| Highlight | Corrosion Resistant Crimped Wire Mesh,Anti-Acid and Alkali Vibrating Screen Mesh,Long Using Life Stainless Steel Wire Mesh |
||
Product Description
Sus201 202 304 316 430 410 904l crimped wire mesh for sale, hooked vibrating sieve screen mesh for Mining and Quarry
Features:
- Corrosion resistance.
- Anti-acid and alkai
- Anti-high temperature.
- Good filter performance.
- Long using life
Applicatiosn:
- In acid, alkali environment conditions sieving and filtering.
- Petroleum industry as mud mesh,.
- Chemical fiber industry as screen mesh.
- Plating industry as acid cleaning mesh.
Materials
- Stainless Steel Wire
- Brass wire
- High carbon steel wire
- Galvanized iron wire
Weaving Patterns: Weaving after crimping, double crimp, flat top, inter crimp, rectangular slot and long slot.
Applications
- Vibrating tray screens
- High pressure filters
- Cooling circuit filters
- Grids and trays for thermal treatments
- Decoration
| Stainless Steel Crimped Wire Mesh | ||||
| Wire Gauge(SWG) | Wire Diameter(mm) | Mesh/Inch | Aperture(mm) | Weight(kg) |
| 6 | 4.8 | 1 | 20.6 | 11.5 |
| 8 | 4.05 | 2 | 9 | 16.5 |
| 10 | 3.2 | 2 | 10 | 10.5 |
| 12 | 2.6 | 3 | 5.9 | 10.5 |
| 14 | 2.0 | 3 | 6.5 | 6 |
| 16 | 1.6 | 4 | 5 | 5.5 |
| 17 | 1.4 | 5 | 5.1 | 5.0 |
| 18 | 1.2 | 5 | 4 | 3.6 |
| 19 | 1.0 | 6 | 3.2 | 3.0 |
| 21 | 0.8 | 7 | 2.8 | 2.3 |
| 22 | 0.7 | 8 | 2.5 | 2 |
Weave selections
Double-Crimp
Flat-Top
Improves material flow with flatter surface than other weaves. Lock
weave maintains accurate openings. Also called "Smooth-Top". Most
efficient weave for heavy-duty screens when ratio between width and wire diameter permits its use. As a general rule, opening width should be at least 5 times the wire diameter. It is extremely durable because each wire is locked in place to maintain accuracy of openings for the life of the screen.
Tri-Loc
Long openings will keep sticky or wet material flowing freely. Weave holds wires securely yet permits slight vibration to keep openings clear. This specification is often called "Triple Shoot".
This specification is also referred to as "Vibro Type Weave".
Efficient and long wearing in a variety of applications Providing a level, smooth surface, the Smooth weave employs a type of rigidity interlocked crimp that insures maintenance of accurate, uniform openings. When used in the correct application, because of the level weave, there is considerable reduction of friction from material passing over the screen and, in many cases, far less wear from abrasion than in screens made with surface crimps.
Crimped wire mesh product details
About our company
Anping Qianpu Wire Mesh Products Co., Ltd.is a manufacture and exporter of stainless steel wire mesh product.
We are located in wire mesh industrial base Anping city,Hebei province in China.
Our product range is as below,
- Stainless steel woven wire mesh
- Welded wire mesh
- Crimped wire mesh
- Hexagonal wire mesh
- Knitted wire mesh
- Wire mesh filter
- Window screen
It have been 15 years that we manufacture and export wire mesh product,our professional responsible attitude and our strictly management technique ensure us standing in the leading position of wire mesh industry.We welcome your enquiry.
In order to make an offer,please provide us below wire mesh specification information.
- Material
- Wire diameter
- Mesh size
- Wire mesh length
- Wire mesh width
If it is possible,please also provide us weight per roll that you required.
We are specialized in manufacture and export of stainless steel wire mesh product,if you have request please contact us.We will provide professional service and guarantee on time delivery.
