Stainless Steel Wire Mesh Crimped Mesh Screen Corrosion Resisting For Car Grille Mesh
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Technique | Woven | Feature | High Quality With Good Prices |
|---|---|---|---|
| Length | 30m Or Customized | Width | 0.5-2m |
| Hole Size | 0.1-8" | Product Name | Stainless Steel Wire Mesh Screen |
| Highlight | stainless steel crimped wire mesh,corrosion resistant car grille mesh,stainless steel wire mesh screen |
||
Product Description

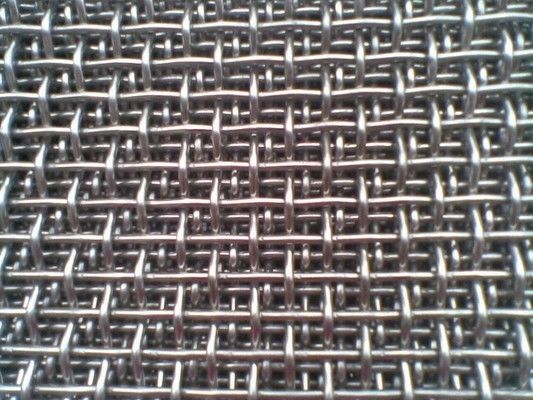

Stainless Steel Wire Mesh Crimped Mesh Screen Corrosion Resisting For Car Grille Mesh
Stainless Steel Woven Crimped Wire Mesh for Car Grille MeshStainless Steel Woven Crimped Wire Mesh/Sand Gravel screen
stainless steel crimped wire mesh, mining screen mesh, square wire mesh description:
Crimped wire mesh made of low carbon steel, galvanized steel wire or stainless steel wire. It is widely
used in industries, where sieving is prevalent. The screens are generally employed in series in order to
generate and separate the finest of particles of chemicals, fertilizers and pharmaceuticals.
Crimped Wire Mesh Weaving: Pre-crimping before Weaving. In two-way separated wave bending, locked bending, flat-topped curved, two-way bending, one-way separated wave bending.
Material:
The Product is made by low carbon iron wire, galvanized steel wire or stainless steel wire.
Specifications:
| Specification | ||||
| Wire diameter (mm) | Aperture(mm) | Wire diameter(mm) | Aperture(mm) | |
| 22.0 | 200 | 4.0 | 15 | |
| 20.0 | 180 | 3.2 | 30 | |
| 16.0 | 150 | 3.0 | 30 | |
| 16.0 | 120 | 3.2 | 25 | |
| 12.0 | 100 | 3.0 | 25 | |
| 12.0 | 90 | 2.6 | 30 | |
| 12.0 | 80 | 2.5 | 30 | |
| 12.0 | 75 | 2.6 | 25 | |
| 12.0 | 70 | 2.5 | 25 | |
| 10.0 | 60 | 2.6 | 20 | |
| 10.0 | 50 | 2.5 | 20 | |
| 9.0 | 45 | 2.0 | 25 | |
| 8.0 | 40 | 1.9 | 25 | |
| 7.5 | 38 | 2.0 | 20 | |
| 7.0 | 37.5 | 1.9 | 20 | |
| 7.0 | 35 | 2.0 | 18 | |
| 7.0 | 32.5 | 1.9 | 18 | |
| 6.5 | 32 | 2.0 | 15 | |
| 6.0 | 30 | 1.9 | 15 | |
| 6.0 | 27.5 | 2.0 | 12 | |
| 6.0 | 25 | 1.9 | 12 | |
| 6.0 | 20 | 2.0 | 10 | |
| 5.0 | 25 | 1.9 | 10 | |
| 5.0 | 22.5 | 1.6 | 15 | |
| 5.0 | 20 | 1.5 | 15 | |
| 4.5 | 22 | 1.6 | 12 | |
| 4.5 | 17.5 | 1.5 | 12 | |
| 4.5 | 15 | 1.6 | 10 | |
| 4.0 | 20 | 1.5 | 10 | |
| wire diameter and mesh list | ||||
| Wire diameter(mm) | Aperture(mm) | Wire diameter(mm) | Aperture(mm) | |
| 2.0--1.6 | 3mesh | 1.0--0.6 | 10mesh | |
| 1.8--1.2 | 3.5mesh | 0.8--0.5 | 12mesh | |
| 1.6--0.7 | 4mesh | 0.7--0.5 | 14mesh | |
| 1.6--0.6 | 5mesh | 0.60--0.4 | 16mesh | |
| 1.5--0.8 | 6mesh | 0.6--0.4 | 18mesh | |
| 1.2--0.7 | 8mesh | 0.5--0.35 | 20mesh | |
Crimped Wire Mesh Features
Crimped wire mesh offers a general feature of strong structure, loading capacity and keeping forms.Crimped wire mesh of different materials offers different specific features.
Galvanized crimped mesh offers firm structure, good strength and economic cost.
Stainless Steel Crimped Mesh Features:
High temperature resisting, acid resisting, alkali resisting, corrosion resisting, etc.

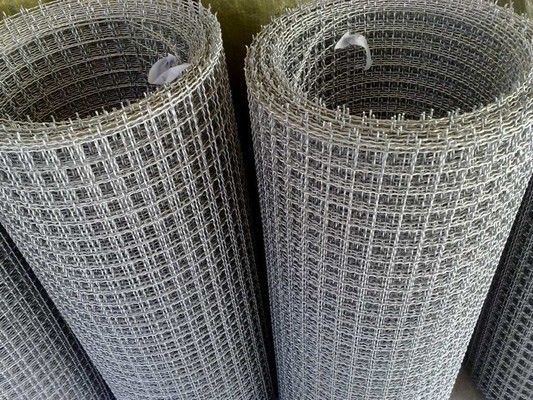

Crimped wire mesh product details
About our company
Anping Qianpu Wire Mesh Products Co., Ltd.is a manufacture and exporter of stainless steel wire mesh product.
We are located in wire mesh industrial base Anping city,Hebei province in China.
Our product range is as below,
Stainless steel woven wire mesh
Welded wire mesh
Crimped wire mesh
Hexagonal wire mesh
Knitted wire mesh
Wire mesh filter
Window screen
It have been 15 years that we manufacture and export wire mesh product,our professional responsible attitude and our strictly management technique ensure us standing in the leading position of wire mesh industry.We welcome your enquiry.
In order to make an offer,please provide us below wire mesh specification information.
Material
Wire diameter
Mesh size
Wire mesh length
Wire mesh width
If it is possible,please also provide us weight per roll that you required.
We are specialized in manufacture and export of stainless steel wire mesh product,if you have request please contact us.We will provide professional service and guarantee on time delivery.
