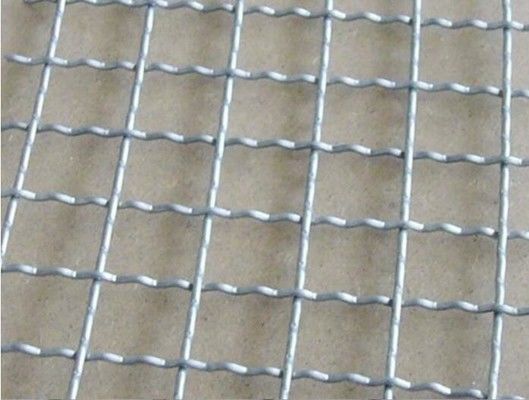

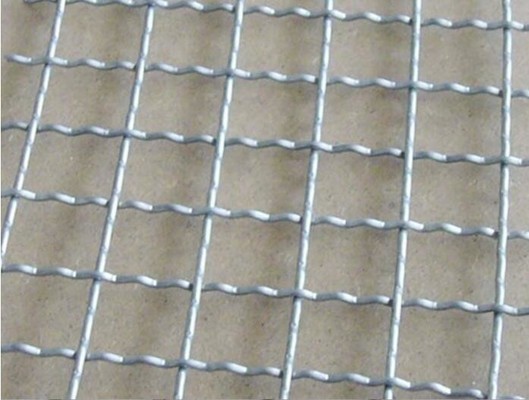

Stainless Steel Wire Mesh SS304 Crimped Mesh Square Hole 1-10mm Wire Gauge

Crimped woven wire mesh is made of high quality carbon steel wire, stainless steel wire, galvanized steel wire and other materials. It has various weaving method, such as the double crimped, flat top crimped, intermediate crimped and lock crimped. The crimped woven wire mesh has square opening and rectangle opening, which has different wire diameters and applications.

The pre-crimped weaving method can assure the accurate open area and make the structure stability and smooth.

The crimped woven wire mesh has various applications. The heavy duty crimped woven wire cloth can be used as vibrating screen in the mining, coal, crusher and other industries. The light crimped woven wire mesh with thinner wire diameter and small opening size can be used as barbecue grill mesh, pig feeding, protective fences for the equipment and stairs.

Flat top crimped

Flat top crimped, also called pressed crimped, is made from round and profiled plain weave wire. All the mesh knuckles is being on the underside. The structure is very heavy and durable. The smooth surface is the characteristic of the weaving method. This structure can allow the materials to move more freely over the screen. It is widely used in the vibrating screen.

Lock crimped

Lock crimped is a refinement of the intermediate crimped. It can lock the wire at their position through pressed at each side of the raised wire. This structure can add the stability of the crimped woven wire mesh.

Double crimped

Double crimped is also called plain weave. Different from the intermediate crimped, both the warp wire and weft wire are woven directly by straight wire. We can get a rigid construction through evenly crimp in warp and weft wire. The wires are under crimped and sprung together thus giving a tight mesh. This is used mainly with lighter wires to ensure tension in a light screen.

Intermediate crimped

Intermediate crimped can be divided into single intermediate crimped and double intermediate crimped.

The single intermediate crimped means the weft wire is pre-crimped and the warp wire is directly woven. The double intermediate crimped means both the weft wire and warp wire is pre-crimped and then woven together.

Pre-crimped process

Using the precision machine, the intermediate crimped wire is pre-crimped by the rotary dies. The pre-crimped wire can assure the spacing of the wires. When the wires are woven together, the structure can ensure the wires will lock firmly together at the intersections.


Specification

• Material: stainless steel wire, spring steel wire, manganese steel wire, galvanized wire, copper wire.
• Weaving method: double crimped, flat top crimped, intermediate crimped and lock crimped.
• Mesh type: square mesh and rectangle mesh.
• Edge type: plain, bent and reinforced hooked.

• Light type crimped woven wire mesh
  • Mesh size: 2 mesh - 22 mesh.
  • Width: 1m - 2m.
  • Length: 30m.
• Heavy duty crimped wire mesh panel
  • Mesh size: 2mm - 30mm.
  • Wire diameter: 1mm - 6mm.
  • Width: 1m.
  • Length: 2m.
• Rectangle pig raising mesh
  • Material: carbon steel wire, galvanized steel wire and stainless steel wire.
  • Wire diameter: 3.8mm - 8mm.
  • Opening size: 10mm × 50mm, 11mm × 50mm, 8mm × 50mm
  • Mesh width: max. 2m.
• Barbecue grill mesh
  • Wire diameter: 0.4mm - 3.0mm.
  • Aperture size: 1mm - 15mm.
  • Mesh diameter: 230mm, 240mm, 260mm, 270mm, 280mm, 300mm, 350mm, 400mm, 500mm.

Anping Qianpu Wire Mesh Products Co., Ltd.is a manufacture and exporter of stainless steel wire mesh product.

We are located in wire mesh industrial base Anping city,Hebei province in China.

Our product range is as below,

Stainless steel woven wire mesh

Welded wire mesh

Crimped wire mesh

Hexagonal wire mesh

Knitted wire mesh

Wire mesh filter

Window screen

It have been 15 years that we manufacture and export wire mesh product,our professional responsible attitude and our strictly management technique ensure us standing in the leading position of wire mesh industry.We welcome your enquiry.

In order to make an offer,please provide us below wire mesh specification information.

Material

Wire diameter

Mesh size

Wire mesh length

Wire mesh width

If it is possible,please also provide us weight per roll that you required.

We are specialized in manufacture and export of stainless steel wire mesh product,if you have request please contact us.We will provide professional service and guarantee on time delivery.
