Galvanized/Stainless Steel 304 Crimped Wire Mesh,Hot Sale 304 Stainless Steel Crimped Wire Mesh
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Stainless Steel Wire | Type | Crimped Wire Mesh |
|---|---|---|---|
| Technique | Woven | Feature | High Quality With Good Prices |
| Length | 30m Or Customized | Width | 1m, 1.2m, 2m Or Customized |
| Highlight | 304 stainless steel crimped wire mesh,galvanized crimped wire mesh,stainless steel crimped mesh with warranty |
||
Product Description
Galvanized/Stainless Steel 304 Crimped Wire Mesh,Hot Sale 304 Stainless Steel Crimped Wire Mesh
They are made of previously corrugated wires or rods and mounted alternately to make a plain cloth. Their manufacturing wire diameter ranges between 1.50 mm and 5 mm, with square meshes within a wide range of possibilities.
The cloth can have more or less stability, consistency and smooth surface according to the number of wire corrugations, their depth and distance between them; these are factors to be borne in mind according to use needs.
Materials
Among others, it is mainly used:
- Plain steel
- Galvanized steel
- Stainless steels
- Refractory steels
Applications
- Vibrating tray screens
- High pressure filters
- Cooling circuit filters
- Grids and trays for thermal treatments
- Decoration
Specifications:
| BWG | Wire Diameter (mm) |
Mesh | Aperture | Weight (kg) |
| 14 | 2.0 | 21 | 1 | 4.2 |
| 8 | 4.05 | 18 | 1 | 15 |
| 25 | 0.50 | 20 | 0.61 | 2.6 |
| 23 | 0.61 | 18 | 0.8 | 3.4 |
| 24 | 0.55 | 16 | 0.1 | 2.5 |
| 24 | 0.55 | 14 | 0.12 | 4 |
| 22 | 0.71 | 12 | 0.14 | 2.94 |
| 19 | 1 | 2.3 | 0.18 | 1.45 |
| 6 | 4.8 | 1.2 | 2 | 20 |
| 6 | 4.8 | 1 | 2 | 20 |
| 6 | 4.8 | 0.7 | 3 | 14 |
| 14 | 2.0 | 5.08 | 0.3 | 12 |
| 14 | 2.0 | 2.1 | 1 | 2.5 |
| 14 | 2.0 | 3.6 | 1.5 |
1.9 |
Double-Crimp
Flat-Top
Improves material flow with flatter surface than other weaves. Lock
weave maintains accurate openings. Also called "Smooth-Top". Most
efficient weave for heavy-duty screens when ratio between width and wire diameter permits its use. As a general rule, opening width should be at least 5 times the wire diameter. It is extremely durable because each wire is locked in place to maintain accuracy of openings for the life of the screen.
Tri-Loc
Long openings will keep sticky or wet material flowing freely. Weave holds wires securely yet permits slight vibration to keep openings clear. This specification is often called "Triple Shoot".
This specification is also referred to as "Vibro Type Weave".
Efficient and long wearing in a variety of applications Providing a level, smooth surface, the Smooth weave employs a type of rigidity interlocked crimp that insures maintenance of accurate, uniform openings. When used in the correct application, because of the level weave, there is considerable reduction of friction from material passing over the screen and, in many cases, far less wear from abrasion than in screens made with surface crimps.

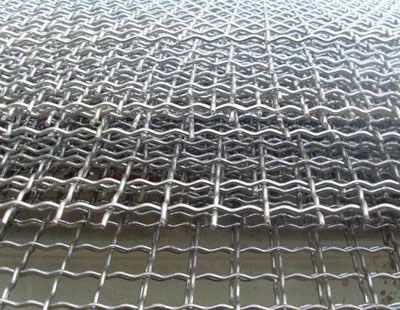

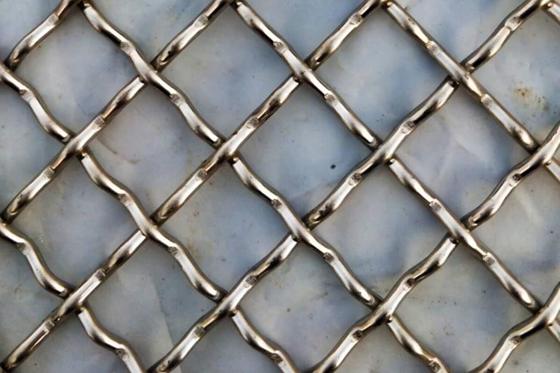

Crimped wire mesh product details
About our company
Anping Qianpu Wire Mesh Products Co., Ltd.is a manufacture and exporter of stainless steel wire mesh product.
We are located in wire mesh industrial base Anping city,Hebei province in China.
Our product range is as below,
Stainless steel woven wire mesh
Welded wire mesh
Crimped wire mesh
Hexagonal wire mesh
Knitted wire mesh
Wire mesh filter
Window screen
It have been 15 years that we manufacture and export wire mesh product,our professional responsible attitude and our strictly management technique ensure us standing in the leading position of wire mesh industry.We welcome your enquiry.
In order to make an offer,please provide us below wire mesh specification information.
Material
Wire diameter
Mesh size
Wire mesh length
Wire mesh width
If it is possible,please also provide us weight per roll that you required.
We are specialized in manufacture and export of stainless steel wire mesh product,if you have request please contact us.We will provide professional service and guarantee on time delivery.
