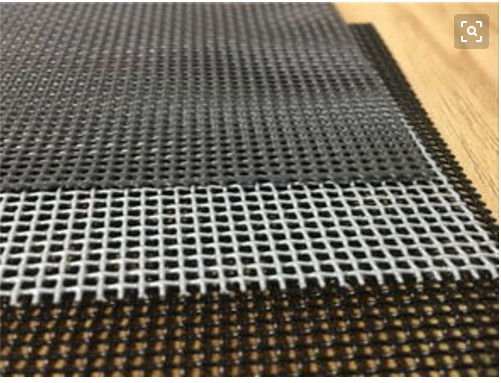

10 Mesh Fine Stainless Steel Security Screen Protection Net Anti - Mosquito
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Stainless Steel | Application | Moisquito Proof |
|---|---|---|---|
| Color | White,black,grey Etc | Feature | Anti-theft, Anti-missile, Anti-mosquito, Anti-rat |
| Wire Diameter | 0.5-1.9mm | Mesh Size | 10 Mesh, 11 Mesh, 12 Mesh, 14 Mesh, 18 Mesh |
| Hole Shape | Square Hole | Surface Treatment | Powder Coated,PVC Coated |
| Width | 1.2m,1.5m Or Customized | Length | 30 M Or Customized |
| Highlight | 10 mesh stainless steel security screen,fine stainless steel mosquito net,stainless steel security screen mesh |
||
Product Description
Stainless Steel Security Screen /stainless Steel Wire Mesh For Window Door 0.8mm X 11 Mesh Powder Coated
|
Material
|
SS wire 201,304,316,316L
|
||
|
Wire diameter
|
0.018-2.03mm
|
||
|
Woven type
|
plain weave,twill weave,dutch weave,reversed dutch weave,crimped weave
|
||
|
Mesh counts
|
plain weave wire mesh can be woven up to 400 mesh
twill weave wire mesh can be woven from 30 to 635 mesh
|
||
Stainless Steel Security Screen Doors
Security screen mesh is our main product ,Our Stainless Steel Security door is made of high tensile AISI316 stainless steel wire, tolerance(+/-0.01mm), tensile strength is more than 900Mpa (900N).
The holes are square and the wires are very strong (not sliding), screen surface is flattened after we weave the wires to mesh screen.
Characteristic:
Private live: No one can peep at room
Beautiful: Gorgeous surface
Durable: More than 10years Warranty
Specifications
Specification| Material | Mesh per inch | Wire Dia mm / inch |
Open (mm) | Open Area |
| SS 316 or 304 | 10 x 10 | 0.9mm /0.035" | 1.64 | 41.7 |
| SS 316 or 304 | 10 x 10 | 1.2mm /0.028" | 1.34 | 27.8 |
| SS 316 or 304 | 10 x 10 | 0.8mm / 0.032" | 1.74 | 46.9 |
| SS 316 or 304 | 10 x 10 | 1.15mm / 0.045" | 1.39 | 29.9 |
| SS 316 or 304 | 11 x 11 | 0.8mm /0.032" | 1.5 | 42.5 |
| SS 316 or 304 | 11 x 11 | 0.7mm / 0.027" | 1.6 | 48.3 |
| SS 316 or 304 | 12 x 12 | 0.7mm / 0.027" | 1.42 | 44.8 |
| SS 316 or 304 | 12 x 12 | 0.58mm / 0.023" | 1.54 | 52.8 |
| Special mesh can be made according to customers requirement. | ||||
Features
Excellent flact surface
High tension,Equal aperture and dia
Corrosion resistance,easy to install
10 years not to corrode,face or bubble
Black color filter 60% of UV rays
Mass stock
Application
About us
Anping Qianpu Wire Mesh Products Co., Ltd.is a manufacture and exporter of stainless steel wire mesh product.
We are located in wire mesh industrial base Anping city,Hebei province in China.
Our product range is as below,
Stainless steel woven wire mesh
Welded wire mesh
Crimped wire mesh
Hexagonal wire mesh
Knitted wire mesh
Wire mesh filter
Window screen
It have been 15 years that we manufacture and export wire mesh product,our professional responsible attitude and our strictly management technique ensure us standing in the leading position of wire mesh industry.We welcome your enquiry.
In order to make an offer,please provide us below wire mesh specification information.
Material
Wire diameter
Mesh size
Wire mesh length
Wire mesh width
If it is possible,please also provide us weight per roll that you required.
