2 To 600 Mesh Titanium Woven Wire Mesh In Marine / Chemical Environments

  • 2 To 600 Mesh Titanium Woven Wire Mesh In Marine / Chemical Environments
  • 2 To 600 Mesh Titanium Woven Wire Mesh In Marine / Chemical Environments
  • 2 To 600 Mesh Titanium Woven Wire Mesh In Marine / Chemical Environments
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 2Rolls
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
Delivery Time 2weeks
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Corrosion Resistance Product Name Titanium Wire Mesh
Material Titanium Wire Woven Type Plain Weave, Twill Weave
Mesh Counts 3 To 600 Width 2000mm Or As Required
Length 30m Standard Usages Chemical Processing
Highlight

600 Mesh Titanium Woven Wire Mesh

,

2mesh Titanium Woven Wire Mesh

,

Chemical Environments Titanium Woven Wire Mesh
Leave a Message
Product Description

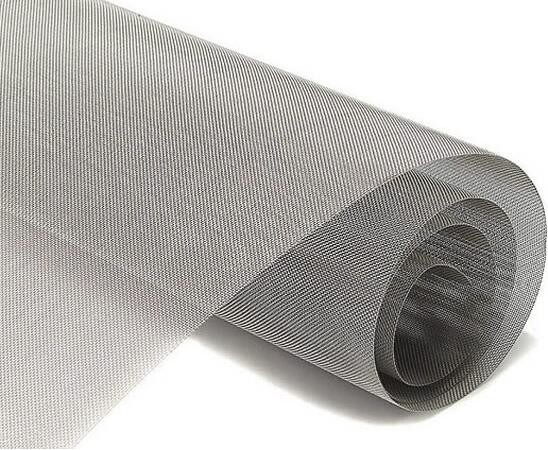

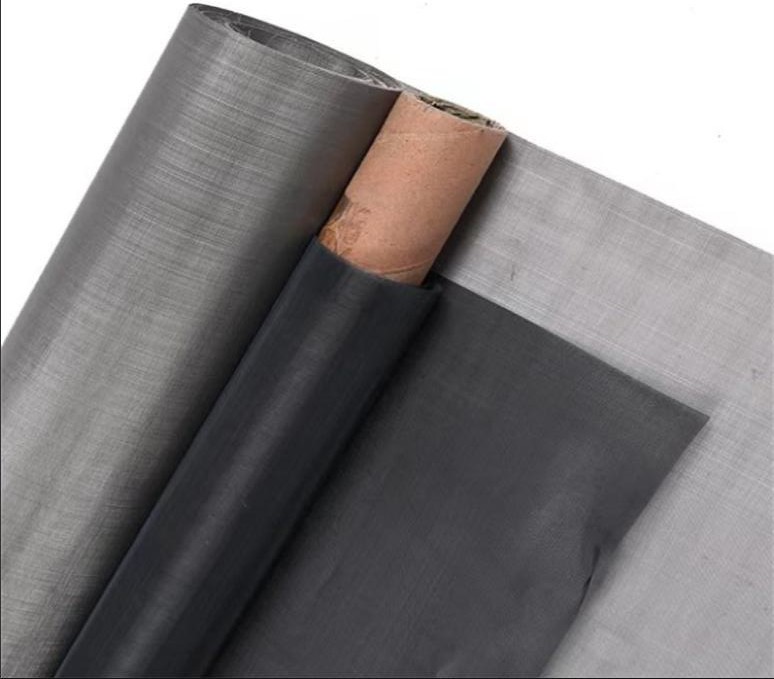

2 To 600 Mesh Titanium Woven Wire Mesh 30+ Years In Marine/Chemical Environments



Titanium woven wire mesh introduction:



Titanium woven wire mesh is a kind of products with outstanding corrosion resistance, low density and nontoxic performance. In the corrosion environment, the surface of high purity titanium mesh will form an oxidation film layer to protect wire mesh from being corroded. The layer is compact and inert, which has strong resistance to the corrosion. It has excellent corrosion resistant performance in below environment: Seawater, wet chlorine, chlorite and hypochlorite solution, nitric acid, chromic acid, metal chlorides and organic salts. Because of the outstanding corrosion resistance, the titanium woven wire mesh has become the replacement material of nickel-free stainless steel wire mesh, aluminum wire mesh.



Titanium wire mesh is woven from commercially pure titanium (CP Ti) or titanium alloys, including:
Grade 1 (CP Ti, 99.5% Ti) – Most ductile, excellent corrosion resistance
Grade 2 (CP Ti, 99.2% Ti) – Balanced strength & formability (most common)
Grade 5 (Ti-6Al-4V) – High-strength aerospace alloy
Grade 7 (Ti-0.15% Pd) – Enhanced acid resistance





Specs:



Specifications of Titanium Wire Mesh
Mesh/Inch

Wire Diameter

(mm)

Opening

(mm)

Open Area

(%)
3 0.800 7.670 82.0%
4 1.000 5.350 71.0%
4 0.890 5.460 74.0%
5 1.000 4.080 64.5%
6 0.800 3.433 65.8%
8 0.810 2.365 55.40%
9 0.800 2.022 51.3%
10 1.000 1.540 36.8%
10 0.635 1.905 56.2%
12 0.600 1.517 51.3%
14 0.406 1.408 60.2%
16 0.450 1.138 51.3%
18 0.254 1.157 67.2%
20 0.300 0.970 58.30%
20 0.350 0.920 52.5%
24 0.250 0.808 57.9%
30 0.280 0.567 45.0%
32 0.250 0.544 46.5%
35 0.230 0.496 46.9%
40 0.250 0.385 36.0%
40 0.210 0.425 44.8%
50 0.180 0.328 41.7%
60 0.150 0.273 41.7%
80 0.120 0.198 38.7%
80 0.100 0.218 46.9%
100 0.100 0.154 36.8%



2 To 600 Mesh Titanium Woven Wire Mesh In Marine / Chemical Environments 0



Characteristics:



✔ Corrosion Resistance
Impervious to seawater, chlorine, hypochlorite, and oxidizing acids
Superior to stainless steel in chloride-rich environments
Forms a self-healing oxide layer
✔ Strength-to-Weight Ratio
45% lighter than steel with comparable strength (Grade 5: 130 ksi tensile)
Ideal for weight-sensitive applications
✔ Biocompatibility
Non-toxic, non-allergenic – Perfect for medical implants & food processing
✔ Temperature Range
Cryogenic to 600°F (315°C) for CP Ti
Up to 1000°F (540°C) for Ti-6Al-4V




Applications:

Aerospace & Defense

Aircraft engine firewalls

Satellite shielding

Chemical Processing

Chlor-alkali cell anodes

Acid leaching filters

Medical & Pharmaceutical

Surgical mesh implants

Sterile filtration screens

Marine & Offshore

Seawater intake screens

Offshore rig components

Architecture & Design

Decorative façades

Artistic installations


Nine titanium expanded wire meshes on the ground.



Weave Types & Specifications



Weave Type Mesh Count Wire Diameter Best For
Plain Weave 2-400 mesh 0.025–2.0 mm General-purpose filtration
Twill Weave 50-300 mesh 0.05–1.0 mm High-strength applications
Dutch Weave 200-600 mesh 0.02–0.5 mm Sub-micron filtration






Packing:



Inside with a paper core, outside with a piece of waterproof, the in wooden case.
