Product Details
Features Extreme Corrosion Resistance Temperature Performance Mechanical Strength Product Name Hastelloy Wire Mesh
Material Hastelloy C-276 Wire Woven Type Plain Weave, Twill Weave, Dutch Weave
Mesh Counts 2 To 300 Roll Length 30m
Roll Width 0.5m - 3.0m Usages Chemical Processing Pollution Control Marine Engineering Pharmaceutical
Highlight

Extreme Corrosion Resistance Wire Mesh

,

Hastelloy C 276 Wire Mesh

,

Mechanical Strength Wire Mesh
Leave a Message
Product Description

Hastelloy C 276 Wire Mesh Extreme Corrosion Resistance Temperature Performance Mechanical Strength

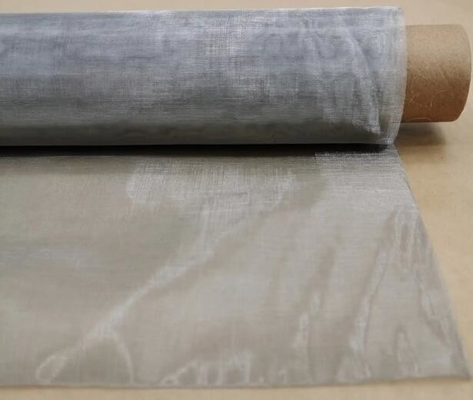

Hastelloy Woven Wire Mesh Introduction:



Hastelloy C276 (UNS N10276) is a nickel-molybdenum-chromium superalloy with tungsten reinforcement, featuring:

Primary Elements:

57% Nickel (base matrix)

15-17% Molybdenum (chloride resistance)

14.5-16.5% Chromium (oxidation resistance)

3-4.5% Tungsten (strength enhancement)

Low Carbon (≤0.02%) – Minimizes carbide precipitation

Key Standards:

ASTM B575 (Plate, Sheet, Strip)

ASTM B622 (Seamless Pipe/Tube)



Materials:

Table 1: Hastelloy C-276 Wire Mesh Chemical Composition (%)
Mo Cr Fe W Co C Si Mn V P S Ni
15–17 14.5–16.5 4–7 3–4.50 2.5 0.02 0.08 1 0.35 0.03 0.03 balance



Features:



✔ Extreme Corrosion Resistance
Handles hot concentrated hydrochloric, sulfuric, and phosphoric acids
Resists pitting/crevice corrosion in seawater (better than titanium in some cases)
Immune to chloride-induced stress corrosion cracking (SCC)
✔ Temperature Performance
Continuous service: -325°F to 1900°F (-198°C to 1038°C)
Short-term exposure up to 2100°F (1149°C)
✔ Mechanical Strength
Tensile: 115 ksi min (793 MPa)
Yield: 52 ksi min (358 MPa)




Application:



Chemical Processing
Reactor screens for HCl production
Flue gas desulfurization (FGD) filters
Acetic acid condenser meshes
Pollution Control
Scrubber system demisters
Waste incineration filters
Marine Engineering
Offshore platform seawater screens
Desalination plant components
Pharmaceutical
High-purity fermentation filters
Aggressive drug intermediate processing



Main Specs:

Mesh Wire Diameter Opening (mm)
mm inch
2 mesh 1.8 0.071 10.9
3 mesh 1.6 0.063 6.866
4 mesh 1.2 0.047 5.15
5 mesh 0.91 0.036 4.17
6 mesh 0.711 0.028 3.522
8 mesh 0.61 0.024 2.565
10 mesh 0.508 0.02 2.032
12 mesh 0.457 0.018 1.66
14 mesh 0.417 0.016 1.397
16 mesh 0.345 0.014 1.243
18 mesh 0.315 0.012 1.096
20 mesh 0.315 0.0124 0.955
22 mesh 0.315 0.0124 0.84
24 mesh 0.315 0.0124 0.743
26 mesh 0.295 0.0116 0.682
28 mesh 0.295 0.0116 0.612
30 mesh 0.274 0.011 0.573
32 mesh 0.254 0.01 0.54
34 mesh 0.234 0.0092 0.513
36 mesh 0.234 0.0092 0.472
38 mesh 0.213 0.0084 0.455
40 mesh 0.193 0.0076 0.442
42 mesh 0.193 0.0076 0.412
44 mesh 0.173 0.0068 0.404
46 mesh 0.173 0.0068 0.379
48 mesh 0.173 0.0068 0.356
50 mesh 0.173 0.0068 0.335
60 × 50 mesh 0.193 0.0076 -
60 × 50 mesh 0.173 0.0068 -
60 mesh 0.173 0.0068 0.25
70 mesh 0.132 0.0052 0.231
80 mesh 0.122 0.0048 0.196
90 mesh 0.112 0.0044 0.17
100 mesh 0.012 0.004 0.152
120 × 108 mesh 0.091 0.0036 -
120 mesh 0.081 0.0032 0.131
140 mesh 0.061 0.0024 0.12
150 mesh 0.061 0.0024 0.108
160 mesh 0.061 0.0024 0.098
180 mesh 0.051 0.002 0.09
200 mesh 0.051 0.002 0.076
220 mesh 0.051 0.002 0.065
250 mesh 0.041 0.0016 0.061
280 mesh 0.035 0.0014 0.056
300 mesh 0.031 0.0012 0.054



There is a filter disc made of hastelloy C-276 wire mesh with stainless steel frame.

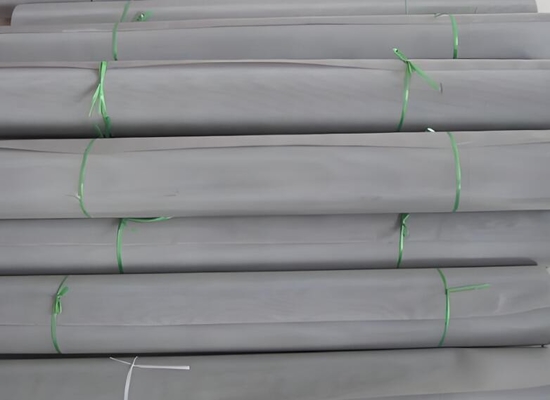

Packing:

Inside with a paper core, outside with a piece of waterproof, the in wooden case.
