Alloy20 Wire Mesh Standard UNS N08020 Resists Sulfuric Phosphoric Nitric And Organic Acids

  • Alloy20 Wire Mesh Standard UNS N08020 Resists Sulfuric Phosphoric Nitric And Organic Acids
  • Alloy20 Wire Mesh Standard UNS N08020 Resists Sulfuric Phosphoric Nitric And Organic Acids
  • Alloy20 Wire Mesh Standard UNS N08020 Resists Sulfuric Phosphoric Nitric And Organic Acids
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 2Rolls
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
Delivery Time 2weeks
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Excellent Resistance To High Temperature And Oxidation Product Name Alloy L605 Wire Mesh
Material Alloy L605 Woven Type Plain Weave, Twill Weave, Dutch Weave
Mesh Counts 2 To 400 Wire 0.025-1.80mm
Alloy Cobalt-nickel-chromium-tungsten Alloy Application Can Be Made Into Filter Disc, Heating Element Or Be Widely Used In Gas Turbine Engine Components, Artificial Heart Valve, Metal Materials Filter Equipment
Highlight

Organic Acids Wire Mesh

,

Alloy20 Wire Mesh

,

UNS N08020 Wire Mesh
Leave a Message
Product Description

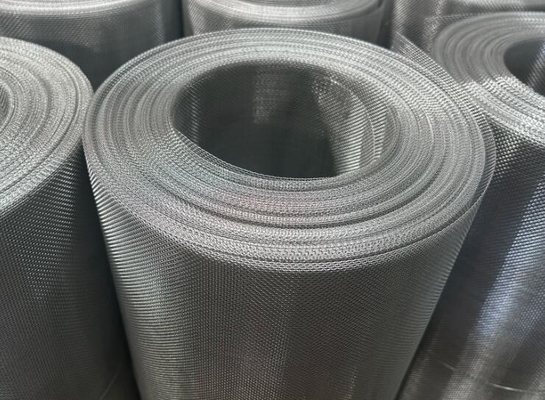

Alloy20 Wire Mesh Standard UNS N08020 Resists Sulfuric Phosphoric Nitric And Organic Acids



Alloy 20  Wire Mesh Introduction:



Alloy 20 wire mesh is crafted from a nickel-iron-chromium superalloy with molybdenum and copper additions, offering:
Primary Composition:
35% Nickel (corrosion resistance)
20% Chromium (oxidation resistance)
3.5% Molybdenum + 2% Copper (acid resistance)
Stabilized with Niobium (Cb) – Prevents carbide precipitation
Key Standards:
ASTM B473 (Alloy 20 Bar & Wire)
ASME SB473 (Pressure Vessel Applications)



Alloy 20 wire mesh delivers optimum performance-to-cost ratio for:
✔ Sulfuric/phosphoric acid systems (where stainless steels fail)
✔ Moderate chloride environments (less severe than seawater)
✔ Applications requiring both corrosion resistance and fabricability









Features:



✔ Unrivaled Corrosion Resistance
Resists sulfuric, phosphoric, nitric, and organic acids
Excellent in chloride and pitting environments (better than 316L SS)
Immune to stress corrosion cracking (SCC)
✔ Mechanical Performance
Tensile Strength: 90-110 ksi (620-760 MPa)
Operating Temp: -325°F to 1000°F (-198°C to 537°C)
✔ Fabrication Advantages
Easier to weld than Hastelloy (no post-weld heat treatment needed)
Good ductility for forming and weaving





Applications:



Chemical Processing
Sulfuric acid concentrator screens
Phosphoric acid reactor filters
Pickling tank components
Pharmaceutical & Food
Citric acid filtration
Vinegar production screens
Bioreactor mesh
Oil & Gas
Downhole screens in sour wells
Flue gas desulfurization (FGD) systems
Pollution Control
Scrubber system meshes
Wastewater treatment filters





Specifications:

Specifications of Nickel 200 Wire Mesh
Mesh Wire Diameter Opening
mm inch (mm)
2 mesh 1.8 0.071 10.9
3 mesh 1.6 0.063 6.866
4 mesh 1.2 0.047 5.15
5 mesh 0.91 0.036 4.17
6 mesh 0.711 0.028 3.522
8 mesh 0.61 0.024 2.565
10 mesh 0.508 0.02 2.032
12 mesh 0.457 0.018 1.66
14 mesh 0.417 0.016 1.397
16 mesh 0.345 0.014 1.243
18 mesh 0.315 0.012 1.096
20 mesh 0.315 0.0124 0.955
22 mesh 0.315 0.0124 0.84
24 mesh 0.315 0.0124 0.743
26 mesh 0.295 0.0116 0.682
28 mesh 0.295 0.0116 0.612
30 mesh 0.274 0.011 0.573
32 mesh 0.254 0.01 0.54
34 mesh 0.234 0.0092 0.513
36 mesh 0.234 0.0092 0.472
38 mesh 0.213 0.0084 0.455
40 mesh 0.193 0.0076 0.442
42 mesh 0.193 0.0076 0.412
44 mesh 0.173 0.0068 0.404
46 mesh 0.173 0.0068 0.379
48 mesh 0.173 0.0068 0.356
50 mesh 0.173 0.0068 0.335
60 mesh 0.173 0.0068 0.25
70 mesh 0.132 0.0052 0.231
80 mesh 0.122 0.0048 0.196
90 mesh 0.112 0.0044 0.17
100 mesh 0.012 0.004 0.152
120 mesh 0.081 0.0032 0.131
140 mesh 0.061 0.0024 0.12
150 mesh 0.061 0.0024 0.108
160 mesh 0.061 0.0024 0.098
180 mesh 0.051 0.002 0.09
200 mesh 0.051 0.002 0.076
220 mesh 0.051 0.002 0.065
250 mesh 0.041 0.0016 0.061
280 mesh 0.035 0.0014 0.056
300 mesh 0.031 0.0012 0.054
320 mesh 0.031 0.0012 0.046
330 mesh 0.031 0.0012 0.042
350 mesh 0.031 0.0012 0.039
360 mesh 0.025 0.00098 0.0385
400 mesh 0.025 0.00098 0.0385

Other specifications according to your request.

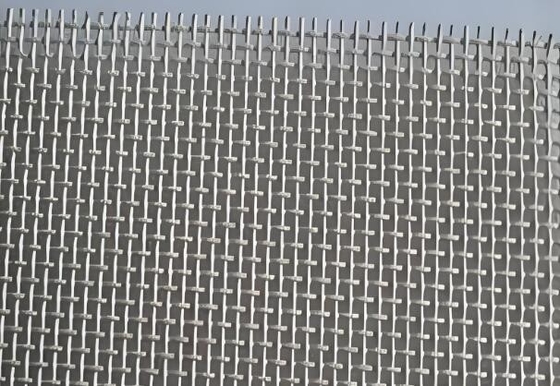

Alloy20 Wire Mesh Standard UNS N08020 Resists Sulfuric Phosphoric Nitric And Organic Acids 0



Packing: Wrapped with waterproof paper, plastic film;
In wooden boxes, carton or pallets.



Pure Nickel Plain Weave Wire Mesh, 80mesh to 200mesh With 0.04-0.15mm Wire
