Nickel Wire Mesh Outstanding Corrosion Resistance In Brine Sulfuric Acid Hydrofluoric Acid

  • Nickel Wire Mesh Outstanding Corrosion Resistance In Brine Sulfuric Acid Hydrofluoric Acid
  • Nickel Wire Mesh Outstanding Corrosion Resistance In Brine Sulfuric Acid Hydrofluoric Acid
  • Nickel Wire Mesh Outstanding Corrosion Resistance In Brine Sulfuric Acid Hydrofluoric Acid
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 2Rolls
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
Delivery Time 2weeks
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Excellent Mechanical Properties And Ductility Product Name Nickel 200 Wire Mesh
Material Nickel Wire Woven Type Plain Weave, Twill Weave, Dutch Weave
Mesh Counts 2 To 400 Wire 0.025-1.80mm
Thickness ≥ 0.08 Mm Application In Fiber Chemical Electrical Industry
Highlight

Brine Sulfuric Acid Nickel Wire Mesh

,

Hydrofluoric Acid Nickel Wire Mesh

,

Outstanding Corrosion Resistance Nickel Wire Mesh
Leave a Message
Product Description

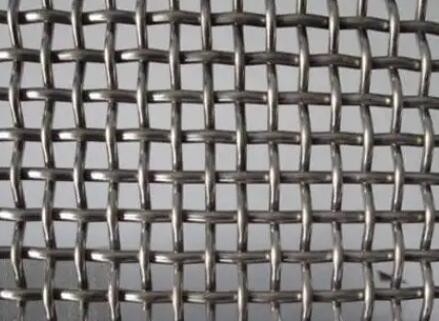

Nickel Wire Mesh Outstanding Corrosion Resistance In Brine Sulfuric Acid Hydrofluoric Acid



Nickel Woven Wire Mesh Introduction:



Nickel wire mesh is woven from pure nickel (Ni 200/201) or nickel alloys (e.g., Inconel, Monel, Hastelloy). The manufacturing process includes:

Wire Drawing: Nickel rods are drawn into fine wires (0.025 mm – 2.0 mm diameter).

Weaving: Wires are woven into plain, twill, or Dutch weave patterns.

Heat Treatment: Annealing may be applied to improve ductility and reduce brittleness.





Plain Weave – Most common and cost-effective
Twill Weave – For higher strength and density
Dutch Weave – Ideal for fine filtration and pressure resistance



Material:



Pure Nickel Series: Nickel 200 (EN 2.4060), Nickel 201 (EN 2.4061), Nickel 270 (EN 2.4050)
Nickel Alloy Series: Cr20Ni80 (EN 2.4869)



Table 1: Nickel 200 Wire Mesh Chemical Composition (%)
Ni Fe ≤ C ≤ Mn ≤ Si ≤ Cu ≤ S ≤
balance 0.4 0.15 0.35 0.35 0.25 0.01



Nickel 200 and 201 are considered as commercially pure. With 99.6% grade, the low carbon content of 201 prevents the metal alloy from becoming brittle when exposed to temperatures 600F and above. The Nickel 270 is considered as high purity grade metal alloy, produced through powder metallurgy.





Pure Nickel Mesh (Ni 200/201):

Ni 200 (99.6% Ni) – Standard grade for general use.

Ni 201 (99.9% Ni) – Low carbon, better for high-temperature welding.

Nickel Alloy Mesh:

Inconel (Ni-Cr) – Extreme heat/corrosion resistance.

Monel (Ni-Cu) – Superior marine/chemical resistance.

Hastelloy (Ni-Mo-Cr) – Best for harsh acids.



Features:



High Corrosion Resistance: Excellent resistance to alkalis, acids, and saltwater (better than stainless steel in some environments).

Heat Resistance: Maintains strength at high temperatures (up to 1000°F / 538°C for Ni 200, higher for alloys).

Electrical Conductivity: Moderate conductivity, useful for battery and fuel cell applications.

Non-Magnetic (Ni 201): Ideal for electronic shielding where magnetic interference is a concern.

Ductility & Formability: Easier to shape than Monel or Inconel.

Oxidation Resistance: Forms a protective oxide layer at high temperatures.



Applications:



Chemical Processing: Filters, screens, and gaskets in corrosive environments.

Battery & Fuel Cells: Electrode support meshes in NiMH and alkaline batteries.

Aerospace & Defense: Heat shields, exhaust filters, and sensor protection.

Electronics: EMI/RFI shielding, conductive gaskets.

Pharmaceutical & Food: Non-reactive sieves and filters.

Nuclear Industry: Radiation-resistant components.

Decorative Use: Architectural accents due to its metallic luster.





Specifications:

Specifications of Nickel 200 Wire Mesh
Mesh Wire Diameter Opening
mm inch (mm)
2 mesh 1.8 0.071 10.9
3 mesh 1.6 0.063 6.866
4 mesh 1.2 0.047 5.15
5 mesh 0.91 0.036 4.17
6 mesh 0.711 0.028 3.522
8 mesh 0.61 0.024 2.565
10 mesh 0.508 0.02 2.032
12 mesh 0.457 0.018 1.66
14 mesh 0.417 0.016 1.397
16 mesh 0.345 0.014 1.243
18 mesh 0.315 0.012 1.096
20 mesh 0.315 0.0124 0.955
22 mesh 0.315 0.0124 0.84
24 mesh 0.315 0.0124 0.743
26 mesh 0.295 0.0116 0.682
28 mesh 0.295 0.0116 0.612
30 mesh 0.274 0.011 0.573
32 mesh 0.254 0.01 0.54
34 mesh 0.234 0.0092 0.513
36 mesh 0.234 0.0092 0.472
38 mesh 0.213 0.0084 0.455
40 mesh 0.193 0.0076 0.442
42 mesh 0.193 0.0076 0.412
44 mesh 0.173 0.0068 0.404
46 mesh 0.173 0.0068 0.379
48 mesh 0.173 0.0068 0.356
50 mesh 0.173 0.0068 0.335
60 mesh 0.173 0.0068 0.25
70 mesh 0.132 0.0052 0.231
80 mesh 0.122 0.0048 0.196
90 mesh 0.112 0.0044 0.17
100 mesh 0.012 0.004 0.152
120 mesh 0.081 0.0032 0.131
140 mesh 0.061 0.0024 0.12
150 mesh 0.061 0.0024 0.108
160 mesh 0.061 0.0024 0.098
180 mesh 0.051 0.002 0.09
200 mesh 0.051 0.002 0.076
220 mesh 0.051 0.002 0.065
250 mesh 0.041 0.0016 0.061
280 mesh 0.035 0.0014 0.056
300 mesh 0.031 0.0012 0.054
320 mesh 0.031 0.0012 0.046
330 mesh 0.031 0.0012 0.042
350 mesh 0.031 0.0012 0.039
360 mesh 0.025 0.00098 0.0385
400 mesh 0.025 0.00098 0.0385



Mesh Count Wire Diameter (mm) Opening Size (mm) Application Example
10 0.5 2.04 Marine ventilation screens
40 0.2 0.43 Saltwater filtration
100 0.1 0.154 Chemical processing filters
200+ <0.07 <0.06 Ultra-fine particulate filtration

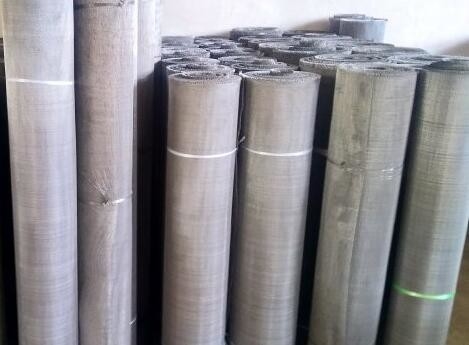

Packing:



Pure Nickel Plain Weave Wire Mesh, 80mesh to 200mesh With 0.04-0.15mm Wire
