Monel Wire Mesh​ 8 To 200 Per Inch Performs Well In High-Temperature Environments

  • Monel Wire Mesh​ 8 To 200 Per Inch Performs Well In High-Temperature Environments
  • Monel Wire Mesh​ 8 To 200 Per Inch Performs Well In High-Temperature Environments
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 2Rolls
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
Delivery Time 2weeks
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Monel Woven Wire Mesh Material Monel Wire
Composed Typically 67% Ni, 30% Cu, With Small Amounts Of Iron, Manganese, And Other Elements Wire Diameter 0.05 To 1.80mm
Mesh Counts 8 To 200 Per Inch Weave Type Plain, Twill
Feature Performs Well In High-Temperature Environments Applicatioin Filtration In Acid, Alkali, And Solvent Environments.
Highlight

200 per inch Monel Wire Mesh

,

8 per inch Monel Wire Mesh

,

High Temperature Monel Wire Mesh
Leave a Message
Product Description

Monel Wire Mesh 8 to 200 per inch  Performs Well In High-Temperature Environments



Monel wire mesh introduction:



Monel wire mesh is woven from Monel alloy, a nickel-copper alloy (typically 67% Ni, 30% Cu, with small amounts of iron, manganese, and other elements). It is manufactured through:

Wire Drawing: Monel rods are drawn into fine wires.

Weaving: Wires are woven into plain, twill, or Dutch weaves for different densities.

Heat Treatment: Annealing may be applied to enhance ductility.



Monel wire mesh is a premium material for extreme environments where corrosion resistance, strength, and durability are critical. While costly, its superior performance in marine, chemical, and high-temperature applications justifies the investment. Proper selection of weave type, alloy grade, and mesh size ensures optimal performance.
Best for: Harsh chemical, marine, and high-stress industrial applications where standard metals fail.



Material:


Monel400, Monel401, Monel404, Monel R405, Moenl K500 and Inconel wire. Monel400 alloy wire is the most common material that corrosion resisting in the hydrofluoric acid, muriatic acid, phosphoric acid, organic acid and alkaline medium.



Monel-400 Chemical Composition(%)
C Mn Fe Cu Ni Si S
Max Max Max Min/Max Min Max Max
0.3 2 2.5 28.0-34.0 63 0.5 0.024



Weave Pattern: plain weave, twill weave, dutch weave.



The most popular specification:


Monel Wire Mesh
Mesh Wire Dia. (mm) Aperture (mm)
2mesh 1.80 10.90
3mesh 1.60 6.866
4mesh 1.20 5.15
5mesh 0.91 4.17
6mesh 0.80 3.433
8mesh 0.60 2.575
10mesh 0.55 1.990
12mesh 0.50 1.616
14mesh 0.45 1.362
16mesh 0.40 1.188
18mesh 0.35 1.060
20mesh 0.30 0.970
26mesh 0.28 0.696
30mesh 0.25 0.596
40mesh 0.21 0.425
50mesh 0.19 0.318
60mesh 0.15 0.273
70mesh 0.14 0.223
80mesh 0.12 0.198
90mesh 0.11 0.172
100mesh 0.10 0.154
120mesh 0.08 0.132
140mesh 0.07 0.111
150mesh 0.065 0.104
160mesh 0.065 0.094
180mesh 0.053 0.088
200mesh 0.053 0.074

Other specifications according to your requirements.

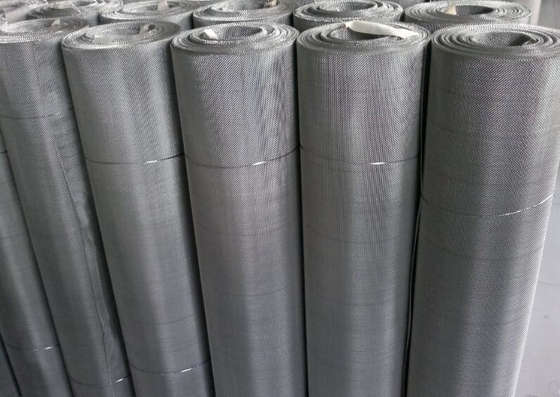

Monel Wire Mesh​ 8 To 200 Per Inch Performs Well In High-Temperature Environments 0


Features:


Exceptional Corrosion Resistance: Resists saltwater, acids (hydrochloric, sulfuric), and alkalis better than stainless steel.
High Strength & Durability: Stronger than pure copper or brass, with good fatigue resistance.
Heat Resistance: Performs well in high-temperature environments (up to 1000°F / 538°C).
Non-Magnetic: Ideal for marine and electronic applications.
Good Conductivity: Lower than copper but better than steel.
Resistance to Biofouling: Used in marine and chemical processing where microbial growth is a concern.


Usage:



Marine & Offshore: Anti-corrosion screens, boat filters, underwater equipment.

Chemical Processing: Filtration in acid, alkali, and solvent environments.

Oil & Gas: Sieves, scrubbers, and safety screens in refineries.

Aerospace: Lightweight, high-strength components.

Medical & Pharmaceutical: Non-reactive filters and sieves.

Food Processing: Corrosion-resistant screens for harsh cleaning agents.

Nuclear Industry: Radiation-resistant shielding and filters.

Marine: Anti-fouling screens for ship hulls.

Chemical Plants: Acid-resistant filter meshes.

Aerospace: Engine component shielding.

Pharmaceutical: Non-reactive sieves for drug manufacturing.




Packing:


Inside with a paper core, outside with a piece of waterproof, the in wooden case.

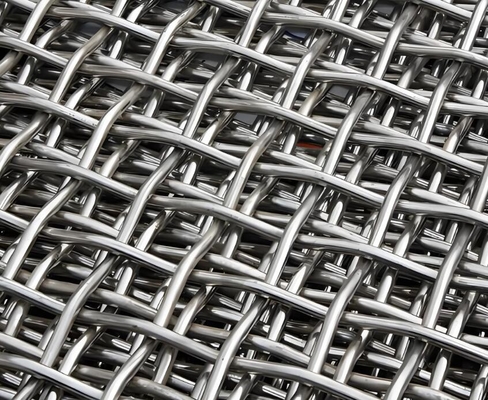

Monel Wire Mesh​ 8 To 200 Per Inch Performs Well In High-Temperature Environments 1
