Phosphor Bronze Wire Mesh Excellent Corrosion Resistance Especially In Marine And Industrial Environments

  • Phosphor Bronze Wire Mesh Excellent Corrosion Resistance Especially In Marine And Industrial Environments
  • Phosphor Bronze Wire Mesh Excellent Corrosion Resistance Especially In Marine And Industrial Environments
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 5Rolls
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
Delivery Time 2weeks
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Corrosion, Wear, Tear, Rust, Fatigue, Acid And Alkali Resistance. Product Name Phosphor Bronze Woven Wire Mesh
Material Phosphor Bronze Wire Woven Type Plain Weave, Twill Weave, Dutch Weave
Mesh Counts 6 To 400 Per Inch Width 0.5m To 3.0m
Length 30m Application Filters, Decorative Grills, Lamps And Light Shades, Fireplace, Etc
Highlight

Industrial Phosphor Bronze Wire Mesh

,

Marine Phosphor Bronze Wire Mesh

,

Phosphor Bronze woven wire mesh
Leave a Message
Product Description

Phosphor Bronze Wire Mesh Excellent Corrosion Resistance Especially In Marine And Industrial Environments



Phosphor Bronze Woven Wire Mesh Introduction:



Copper woven wire mesh is crafted from pure copper wires (99.9% Cu) or high-copper alloys. The wires are woven into grids using techniques like plain, twill, or Dutch weaves. The process involves drawing copper into thin wires, followed by annealing (heat treatment) to enhance flexibility for intricate weaving. Unlike brass or aluminum, copper’s natural softness requires careful handling during fabrication.



Copper woven wire mesh is unparalleled in applications demanding conductivity, corrosion resistance, and antimicrobial properties. While softer and costlier than steel or aluminum, its unique benefits make it indispensable in electronics, medical, marine, and decorative sectors. Proper selection of weave, mesh size, and surface treatment ensures optimal performance and longevity.



Weaving Methods: Plain Weave, Twill Weave


Specifications


Phosphor Bronze Woven Wire Mesh
Mesh Count

Wire Diameter

(mm)

Aperture Size

(mm)

Open Area Rate

(%)
6 0.40 3.833 81.99
0.50 3.733 77.77
0.60 3.633 73.66
0.70 3.533 69.66
8 0.40 2.775 76.39
0.50 2.675 70.98
10 0.35 2.190 74.30
0.40 2.140 70.98
0.50 2.040 64.50
12 0.35 1.770 69.66
0.40 1.716 65.77
0.50 1.616 58.33
14 0.30 1.514 69.66
0.35 1.464 65.13
0.40 1.414 60.76
0.50 1.314 52.47
16 0.25 1.337 70.98
0.27 1.317 68.87
0.40 1.187 55.95
18 0.15 1.261 79.87
0.17 1.241 77.35
0.19 1.221 74.88
0.21 1.201 72.45
0.25 1.161 67.7
0.30 1.111 62.00
0.40 1.011 51.34
20 0.19 1.080 72.31
0.21 1.060 69.66
0.25 1.020 64.50
0.30 1.970 58.33
0.40 0.870 46.92
22 0.25 0.904 61.38
24 0.15 0.908 73.66
0.20 0.858 65.77
0.30 0.758 51.34
0.35 0.708 44.79
30 0.12 0.726 73.66
0.13 0.716 71.64
0.15 0.696 67.70
0.17 0.676 63.87
0.19 0.656 60.15
0.20 0.646 58.33
0.27 0.576 46.39
40 0.12 0.515 0.020
0.15 0.485 0.019
0.18 0.455 0.018
0.20 0.435 0.017
50 0.12 0.388 58.33
0.13 0.378 55.36
0.15 0.358 49.66
0.20 0.308 36.75
60 0.10 0.323 58.30
0.11 0.313 54.76
0.12 0.303 51.34
0.15 0.273 41.68
0.17 0.253 35.81
0.19 0.233 30.38
80 0.08 0.237 55.72
0.09 0.227 51.34
0.10 0.217 46.92
0.12 0.197 38.69
100 0.07 0.184 52.48
0.08 0.174 46.92
0.09 0.164 41.69
0.10 0.154 36.75
120 0.05 0.162 40.51
0.06 0.152 35.65
0.07 0.142 31.11
0.08 0.132 38.69
150 0.06 0.109 41.68
0.07 0.099 34.41
180 0.05 0.091 41.68
0.06 0.081 33.03
200 0.05 0.077 36.75
250 0.04 0.061 36.75
300 0.04 0.044 27.83
325 0.035 0.043 30.48
0.04 0.038 23.83
400 0.03 0.033 27.83







Mesh Count Wire Diameter (mm) Opening Size (mm) Application Example
10 0.6 1.94 Coarse filtration, screens
40 0.25 0.39 Dust filtering, insect screening
100 0.1 0.154 Fine filtration, EMI shielding
200+ <0.07 <0.06 Ultra-fine filtration

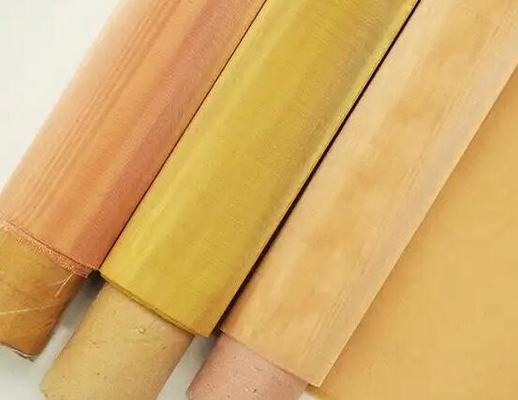

Phosphor Bronze Wire Mesh Excellent Corrosion Resistance Especially In Marine And Industrial Environments 0



Features of Phosphor Bronze Wire Mesh(cloth):

High Conductivity: Exceptional electrical and thermal conductivity, superior to most metals.

Corrosion Resistance: Resists atmospheric and moisture corrosion; forms a protective green patina over time.

Antimicrobial: Naturally inhibits bacterial growth, ideal for sanitary environments.

Malleability/Ductility: Easily shaped without cracking, suitable for complex designs.

Non-Sparking: Safe for flammable or explosive environments.

Aesthetic Appeal: Distinctive reddish-gold color, often used decoratively.

Weight: Heavier than aluminum but lighter than steel.

Unmatched electrical/thermal conductivity.

Antimicrobial and corrosion-resistant.

Aesthetic versatility and non-sparking safety.

Fully recyclable and eco-friendly.



Types and Variations:



Weave Patterns: Plain weave (standard), twill (dense), Dutch weave (ultra-fine filtration).

Mesh Specifications: Wire diameter (0.03–2.0 mm), mesh count (1–200 openings per inch).

Surface Treatments: Lacquered, tin-plated, or coated to prevent tarnishing.

Alloys: Rarely alloyed but may include trace elements for enhanced strength.

Application of Phosphor Bronze wire mesh(cloth):

Electrical/Electronics: EMI/RFI shielding, grounding meshes, and circuit board components.

Decorative: Architectural facades, light fixtures, and artistic installations.

Filtration/Sieving: Fine filtration in laboratories, food processing, and pharmaceutical industries.

HVAC Systems: Corrosion-resistant air vents and anti-microbial screens.

Medical: Antimicrobial screens for hospitals and cleanrooms.

Marine: Components for boats and coastal structures due to saltwater resistance.

Agriculture: Pest barriers and plant supports.

Roofing: Lightning protection and architectural detailing.

EMI shielding in electronic devices.

Decorative room dividers in luxury interiors.

Laboratory sieves for particle analysis.

Antimicrobial screens in hospital ventilation systems.

Sculptural elements in public art installations.



Industry Use Case
Electronics EMI/RFI shielding in sensitive equipment
Marine Seawater filters, corrosion-resistant screens
Aerospace Fuel and hydraulic system filters
Chemical Precision filtration of corrosive fluids
Music Used in reeds and springs (non-mesh form)
Crafts/Art Jewelry, sculpture, model making

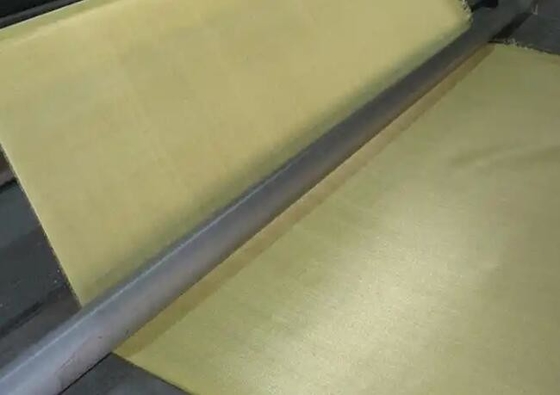

Phosphor Bronze Wire Mesh Excellent Corrosion Resistance Especially In Marine And Industrial Environments 1



Packing:



Phosphor Bronze wire mesh is packed in rolls,winding on a paper tube,wrapped in moisture-proof paper or plastic film, outside wooden cases or wooden pallet.



Phosphor Bronze Wire Mesh Excellent Corrosion Resistance Especially In Marine And Industrial Environments 2
