Slot Hole Crimped Wire Mesh With Ratio Reasonable Flat Surface Strong Wear Resistance And Firm Structure
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Firm Structure, Good Strength, Economy Cost | Product Name | Slot Hole Crimped Wire Mesh |
|---|---|---|---|
| Material | Stainless Steel Wire, Carbon Steel Wire | Type | Lock Crimped |
| Hole Shape | Slot Hole | Clear Opening | 1x4mm To 10x50100mm |
| Wire Diameter | 0.8mm To 5mm | Application | Architectural & Decorative Industries, For The Screen Of Window, Fence And Ceiling. |
| Highlight | Strong Wear Resistance Crimped Wire Mesh,Firm Structure Crimped Wire Mesh,Flat Surface Crimped Wire Mesh |
||
Product Description

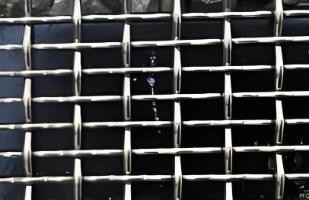

Slot Hole Crimped Wire Mesh With Ratio Reasonable Flat Surface Strong Wear Resistance And Firm Structure
Slot Hole Crimped Wire Mesh Introduction:
Slot hole crimped wire mesh/screen is produced on looms as screen panels, it is a special style hat the warp wire and weft wire are pre crimped by different weaving process before weaving, that create a rectangular hole and ensure maximum open areas. Crimped wire mesh are most widely used in the agricultural and construction industries.
We can offer slot hole crimped wire mesh in the standard specifications, opening sizes range from 1.0 x 4.0 mm to 10.0 x 50.0 mm, while wire diameters range from 0.8 mm to 5.0 mm, and the manufactured widths are between 1 m and 4 m. The wire screens is commonly constructed with materials of carbon steel and stainless steel.
Specifications:

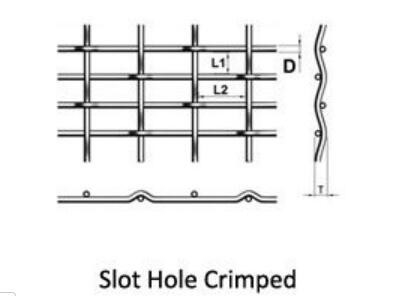

| Opening(L1×L2) | Wire Diameter | Open Area | ||
| mm | Inch | mm | Inch | % |
| 1.0×4.0 | 0.039×0.157 | 0.8 | 0.031 | 46.3 |
| 1.0×5.0 | 0.039×0.197 | 1 | 0.039 | 41.67 |
| 1.2×7.0 | 0.047×0.276 | 1 | 0.039 | 47.73 |
| 1.5×4.5 | 0.059×0.177 | 1 | 0.039 | 49.09 |
| 2.0×6.0 | 0.079×0.236 | 1.2 | 0.047 | 52.08 |
| 2.0×14.0 | 0.079×0.551 | 2 | 0.079 | 43.75 |
| 2.0×20.0 | 0.079×0.787 | 1.5 | 0.059 | 53.16 |
| 2.5×7.5 | 0.098×0.295 | 1.2 | 0.047 | 58.25 |
| 3.0×12.0 | 0.118×0.472 | 2 | 0.079 | 51.43 |
| 4.0×10.0 | 0.157×0.394 | 2 | 0.079 | 55.56 |
| 4.0×16.0 | 0.157×0.630 | 2.5 | 0.098 | 53.22 |
| 5.0×15.0 | 0.197×0.591 | 2.5 | 0.098 | 57.14 |
| 8.0×18.0 | 0.315×0.709 | 3 | 0.118 | 62.34 |
| 8.0×18.0 | 0.315×0.709 | 3.5 | 0.138 | 58.24 |
| 10.0×20.0 | 0.394×0.787 | 4 | 0.157 | 59.52 |
| 10.0×50.0 | 0.394×1.969 | 4 | 0.157 | 66.14 |
| 10.0×50.0 | 0.394×1.969 | 5 | 0.197 | 60.61 |
Other sizes as your special request.
Material:
Standard materials of flat top crimped wire mesh are low/mild/high carbon steel and stainless steel 201, 202, 304, 316, 321, 410, 430.
Besides above following material available:
Copper: brass, pure copper, phosphor bronze
Aluminum: 1050, 1060, 1100, 5052, 5056
Nickel: pure nickel, nickel alloy, monel
Features:
Greater precision;
Particularly smooth surface;
Keep the wires in a specific position;
Wear resistance and firm structure;
Strong and durable, long life.
Applicatioins:
Agricultural
Architectural & Artistic
Building & Construction
Cabinetry & Furniture
Cages & Enclosures
Fan Guards
Filtration & Particle Separation Disks
Fireplace Screen
Fuel Industries
Heat Treatment
Hydraulic Applications
Railing & Guardrail Infill Panels
Mining & Quarrying
Oil Strainers
ety Fencing & Machine Guards
Security & Prison
Window Guards
Wine Lockers
Packing:
in waterproof paper and film, then in pallets. Custom packing available at request.
