4mm To 100mm Opening Lock Crimped Wire Mesh With Lock Feature At Intersections

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xFeatures | Firm Structure, Good Strength, Economy Cost | Product Name | Lock Crimped Wire Mesh |
---|---|---|---|
Material | Aluminum, Stainless Steel, Steel | Type | Lock Crimped |
Hole Shape | Square Hole Or Slot Hole | Clear Opening | 0.787" = 20mm |
Wire Diameter | 0.189" 0.177" 0.157" 0.138" 0.118" 0.098" 0.079" Or According To Your Requests | Application | Infill Panel & Railing Systems, Ceiling Panels, Etc |
Highlight | Intersections Lock Crimped Wire Mesh,4mm opening Lock Crimped Wire Mesh,100mm opening Lock Crimped Wire Mesh |

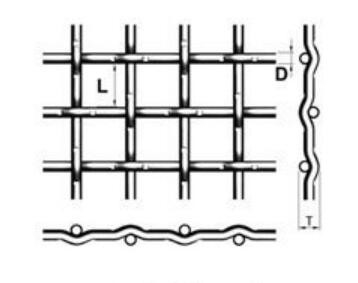

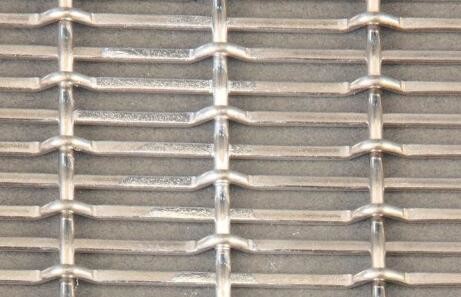

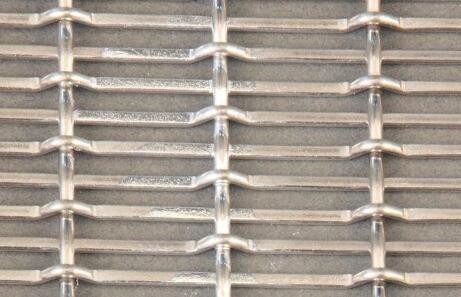

Lock Crimped Wire Mesh 4mm to 100mm opening with lock feature at the intersections
Lock Crimped Wire Mesh Introduction:
A more modern and versatile crimp style, lockcrimp is formed by a straight section of wire weaved with distinct crimp or pockets at wire intersections. Yields a truly tight dimensionally stable mesh. Designers find the visual look of lockcrimp aesthetically pleasing.
Weaving Patterns: Weaving after crimping.
Aperture width: 0.157" - 4"
Wire diameter: 0.039" - 0.189"
Mesh width: up to 80"
Specifications:
Lock Crimp Wire Mesh | ||||
Opening | Wire Diameter | Open Area | ||
mm | Inch | mm | Inch | % |
4.0 | 0.157 | 1.0 | 0.039 | 64.00 |
0.8 | 0.031 | 69.44 | ||
5.0 | 0.197 | 1.2 | 0.047 | 65.04 |
1.0 | 0.039 | 69.44 | ||
0.8 | 0.031 | 74.32 | ||
6.0 | 0.236 | 2.0 | 0.079 | 56.25 |
1.8 | 0.071 | 59.17 | ||
1.6 | 0.063 | 62.33 | ||
1.4 | 0.055 | 65.74 | ||
1.2 | 0.047 | 69.44 | ||
1.0 | 0.039 | 73.47 | ||
8.0 | 0.315 | 2.0 | 0.079 | 64.00 |
1.8 | 0.071 | 66.64 | ||
1.6 | 0.063 | 69.44 | ||
1.4 | 0.055 | 72.43 | ||
1.2 | 0.047 | 75.61 | ||
1.0 | 0.039 | 79.01 | ||
10.0 | 0.394 | 2.5 | 0.098 | 64.00 |
2.0 | 0.079 | 69.44 | ||
1.8 | 0.071 | 71.82 | ||
1.6 | 0.063 | 74.32 | ||
1.5 | 0.059 | 75.61 | ||
1.4 | 0.055 | 76.95 | ||
1.2 | 0.047 | 79.72 | ||
1.0 | 0.039 | 82.64 | ||
12.0 | 0.472 | 4.0 | 0.157 | 56.25 |
3.5 | 0.138 | 59.93 | ||
2.6 | 0.102 | 67.55 | ||
1.5 | 0.059 | 79.01 | ||
12.7 | 1/2” | 4.0 | 0.157 | 57.83 |
3.5 | 0.138 | 61.46 | ||
3.0 | 0.118 | 65.43 | ||
2.5 | 0.098 | 69.81 | ||
2.0 | 0.079 | 74.64 | ||
1.8 | 0.071 | 76.71 | ||
15.0 | 0.591 | 4.8 | 0.189 | 57.39 |
4.5 | 0.177 | 59.17 | ||
4.0 | 0.157 | 62.33 | ||
3.5 | 0.138 | 65.74 | ||
3.0 | 0.118 | 69.44 | ||
2.6 | 0.102 | 72.63 | ||
2.5 | 0.098 | 73.47 | ||
2.0 | 0.079 | 77.85 | ||
19.0 | 0.748 | 4.8 | 0.189 | 63.73 |
4.0 | 0.157 | 68.24 | ||
3.5 | 0.138 | 71.30 | ||
20.0 | 0.787 | 4.8 | 0.189 | 65.04 |
4.5 | 0.177 | 66.64 | ||
4.0 | 0.157 | 69.44 | ||
3.5 | 0.138 | 72.43 | ||
3.0 | 0.118 | 75.61 | ||
2.5 | 0.098 | 79.01 | ||
2.0 | 0.079 | 82.64 | ||
25.0 | 0.984 | 4.8 | 0.189 | 70.37 |
3.5 | 0.138 | 76.94 | ||
3.0 | 0.118 | 79.71 | ||
2.0 | 0.079 | 85.73 | ||
25.4 | 1” | 4.8 | 0.189 | 70.74 |
4.5 | 0.177 | 72.16 | ||
4.0 | 0.157 | 74.64 | ||
3.5 | 0.138 | 77.25 | ||
3.0 | 0.118 | 79.99 | ||
2.5 | 0.098 | 82.88 | ||
30.0 | 1.181 | 4.8 | 0.189 | 74.32 |
4.5 | 0.177 | 75.61 | ||
4.0 | 0.157 | 77.85 | ||
3.5 | 0.138 | 80.20 | ||
3.0 | 0.118 | 82.64 | ||
2.5 | 0.098 | 85.21 | ||
38.1 | 1-1/2” | 4.8 | 0.189 | 78.87 |
4.5 | 0.177 | 79.99 | ||
4.0 | 0.157 | 71.90 | ||
3.5 | 0.138 | 83.88 | ||
3.0 | 0.118 | 85.93 | ||
2.5 | 0.098 | 88.06 | ||
50.8 | 2” | 4.8 | 0.189 | 83.48 |
4.5 | 0.177 | 84.39 | ||
4.0 | 0.157 | 85.93 | ||
3.5 | 0.138 | 87.52 | ||
3.0 | 0.118 | 89.16 | ||
70.0 | 2.756 | 4.8 | 0.189 | 87.58 |
76.2 | 3” | 4.8 | 0.189 | 88.50 |
4.5 | 0.177 | 89.16 | ||
4.0 | 0.157 | 90.27 | ||
3.5 | 0.138 | 91.41 | ||
88.9 | 3-1/2” | 3.5 | 0.138 | 92.57 |
101.6 | 4” | 4.8 | 0.189 | 91.18 |
Other sizes as your special request.
Features and usages:
Lock crimped wire mesh is a type of woven wire mesh where the wires are pre-crimped in such a way that they have a "lock" feature at the intersections. This locking mechanism ensures that the wires are securely connected at the points where they intersect, providing additional stability and strength to the mesh. Here are some key features and characteristics of lock crimped wire mesh:
Secure Intersections: The lock crimped design creates a strong interlocking feature at the wire intersections, enhancing the stability and preventing the wires from moving or shifting within the mesh.
Increased Rigidity: The locking mechanism of lock crimped wire mesh adds rigidity and structural integrity to the mesh, making it suitable for applications where a sturdy and stable material is required.
Uniform Mesh Opening: Despite the lock crimped design, the mesh maintains a uniform mesh opening size throughout, ensuring consistent filtration and screening properties.
Versatility: Lock crimped wire mesh is versatile and finds applications in industries such as mining, construction, agriculture, landscaping, and architectural design where a strong and durable mesh material is needed.
Effective Screening: The secure interlocking feature of lock crimped wire mesh provides effective screening capabilities, making it suitable for applications requiring precise separation of materials.
Material Options: Lock crimped wire mesh can be manufactured using various materials such as stainless steel, galvanized steel, and other metals, offering customization options based on specific application requirements.
Durability: The locking mechanism in lock crimped wire mesh enhances its durability and longevity, making it resistant to wear, abrasion, and external forces.
Customization: Lock crimped wire mesh can be customized in terms of wire diameter, aperture size, and mesh dimensions to meet specific requirements for different applications.
Overall, lock crimped wire mesh is a robust and reliable material that offers secure intersections, increased rigidity, and effective screening properties, making it suitable for a wide range of industrial and commercial applications.
Packing:
in waterproof paper and film, then in pallets. Custom packing available at request.
