Corrosion Resistance Hastelloy C 276 Wire Mesh Used In Waste Treatment Material Filter

  • Corrosion Resistance Hastelloy C 276 Wire Mesh Used In Waste Treatment Material Filter
  • Corrosion Resistance Hastelloy C 276 Wire Mesh Used In Waste Treatment Material Filter
  • Corrosion Resistance Hastelloy C 276 Wire Mesh Used In Waste Treatment Material Filter
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 2Rolls
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
Delivery Time 2weeks
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Prevent Corrosion In Chloride And Fluoride Media Product Name Hastelloy C-276 Wire Mesh
Material Hastelloy C-276 Standard ASTM
Hole Shapes Square Woven Type Plain Weave, Twill Weave
Mesh Counts 2 To 300 Roll Length 30m
Roll Width 0.5m - 3.0m Usages Used In Flue Gas Desulfurization, Pulp And Paper Production, Pollution Control, Environmental Protection, Marine Engineering.
High Light

Corrosion Resistance hastelloy c 276 wire mesh

,

Material Filter hastelloy c 276 wire mesh

,

Waste Treatment hastelloy c 276 wire mesh
Leave a Message
Product Description

Hastelloy C-276 Wire Mesh With Excellent Corrosion Resistance Used In Hot Concentrated Sulfuric Acid Solution

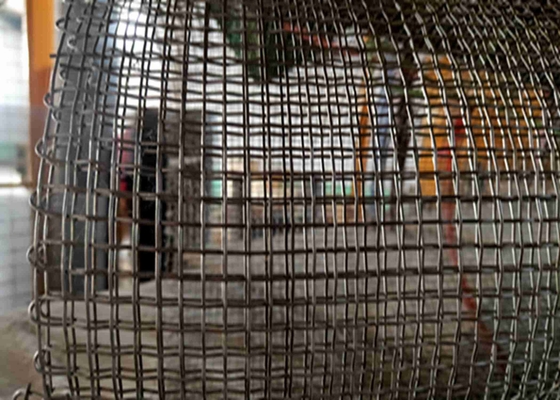

Hastelloy Woven Wire Mesh Introduction:



Hastelloy C-276 wire mesh is nickel-molybdenum-chromium alloy with the addition of tungsten, and has excellent corrosion resistance to pitting and crevice corrosion. It is also the rare materials that can be used in hot concentrated sulfuric acid solution.



With good performance, hastelloy C276 wire mesh can be made into gas-liquid filter, demister or be widely used in petrochemical, flue gas desulfurization, pulp and paper production, waste treatment, environmental protection industry, etc.



Materials:

Table 1: Hastelloy C-276 Wire Mesh Chemical Composition (%)
Mo Cr Fe W Co C Si Mn V P S Ni
15–17 14.5–16.5 4–7 3–4.50 2.5 0.02 0.08 1 0.35 0.03 0.03 balance



Features:



Prevent corrosion in chloride and fluoride media;
Excellent resistance to chloride and stress corrosion cracking;
Resistant to high temperature;
Great strength and toughness;
High resistivity and expansion rate.

Application:



Used for filter and demister;
Used in flue gas desulfurization, pulp and paper production, pollution control, environmental protection, marine engineering.



Main Specs:

Mesh Wire Diameter Opening (mm)
mm inch
2 mesh 1.8 0.071 10.9
3 mesh 1.6 0.063 6.866
4 mesh 1.2 0.047 5.15
5 mesh 0.91 0.036 4.17
6 mesh 0.711 0.028 3.522
8 mesh 0.61 0.024 2.565
10 mesh 0.508 0.02 2.032
12 mesh 0.457 0.018 1.66
14 mesh 0.417 0.016 1.397
16 mesh 0.345 0.014 1.243
18 mesh 0.315 0.012 1.096
20 mesh 0.315 0.0124 0.955
22 mesh 0.315 0.0124 0.84
24 mesh 0.315 0.0124 0.743
26 mesh 0.295 0.0116 0.682
28 mesh 0.295 0.0116 0.612
30 mesh 0.274 0.011 0.573
32 mesh 0.254 0.01 0.54
34 mesh 0.234 0.0092 0.513
36 mesh 0.234 0.0092 0.472
38 mesh 0.213 0.0084 0.455
40 mesh 0.193 0.0076 0.442
42 mesh 0.193 0.0076 0.412
44 mesh 0.173 0.0068 0.404
46 mesh 0.173 0.0068 0.379
48 mesh 0.173 0.0068 0.356
50 mesh 0.173 0.0068 0.335
60 × 50 mesh 0.193 0.0076 -
60 × 50 mesh 0.173 0.0068 -
60 mesh 0.173 0.0068 0.25
70 mesh 0.132 0.0052 0.231
80 mesh 0.122 0.0048 0.196
90 mesh 0.112 0.0044 0.17
100 mesh 0.012 0.004 0.152
120 × 108 mesh 0.091 0.0036 -
120 mesh 0.081 0.0032 0.131
140 mesh 0.061 0.0024 0.12
150 mesh 0.061 0.0024 0.108
160 mesh 0.061 0.0024 0.098
180 mesh 0.051 0.002 0.09
200 mesh 0.051 0.002 0.076
220 mesh 0.051 0.002 0.065
250 mesh 0.041 0.0016 0.061
280 mesh 0.035 0.0014 0.056
300 mesh 0.031 0.0012 0.054



There is a filter disc made of hastelloy C-276 wire mesh with stainless steel frame.

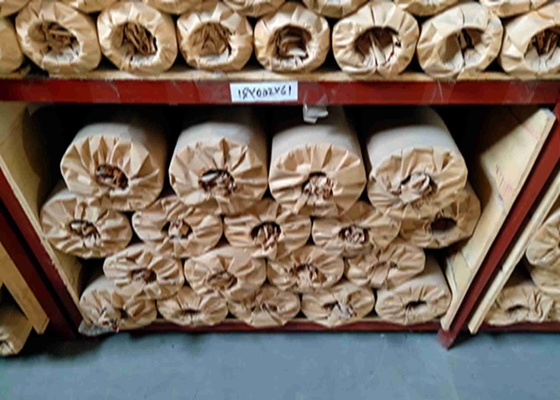

Packing:

Inside with a paper core, outside with a piece of waterproof, the in wooden case.
