Excellent Resistance Incoloy 825 Wire Mesh For Dipping Tube / Heating Element
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xFeatures | Resist Oxidizing Acids And Non-oxidizing Acids | Product Name | Incoloy 825 Wire Mesh |
---|---|---|---|
Material | Incoloy 825 | Woven Type | Plain Weave, Twill Weave, Dutch Weave |
Mesh Counts | 2 To 400 | Wire | 0.025-1.80mm |
Alloy | Contains A Lot Of Chromium, Molybdenum, Nickel | Application | Used For Filter, Sieve, Dipping Tube, Heating Element |
High Light | Heating Element Incoloy 825 Wire Mesh,Excellent Resistance Incoloy 825 Wire Mesh,Dipping Tube Incoloy 825 Wire Mesh |
Excellent Resistance Incoloy 825 Wire Mesh Used For Dipping Tube, Heating Element

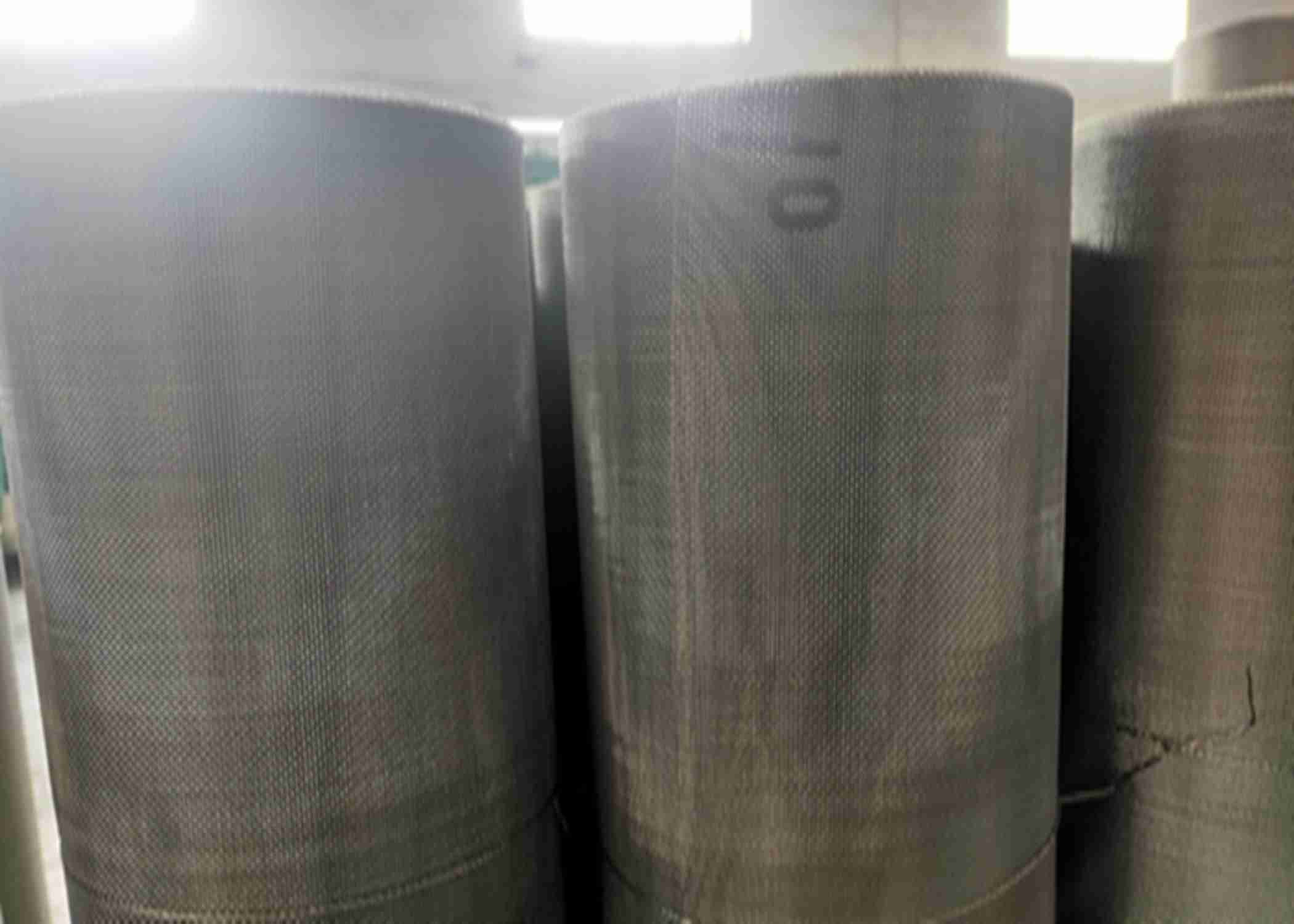

Incoloy825 Wire Mesh Introduction:
Incoloy 825 wire mesh contains a lot of chromium, molybdenum, nickel, which makes it resist to pitting, crevice corrosion and stress corrosion cracking. With low carbon content, incoloy wire mesh has good welding performance.
Incoloy 825 wire mesh can filter or sieve materials in acid condition or be used for dipping tube, heating element. 825 wire mesh can also widely used in oil refining, sulfuric acid pickling plant, marine industry, food processing, etc.
Material:
Table 1: Incoloy 825 Wire Mesh Chemical Composition (%) | |||||||||||
Ni | Cr | Fe | C ≤ | Mn ≤ | Si ≤ | Cu | Mo | Al ≤ | Ti | P ≤ | S ≤ |
38–46 | 19.5–23.5 | balance | 0.05 | 1 | 0.5 | 1.5–3 | 2.5–3.5 | 0.2 | 0.6–1.2 | 0.03 | 0.03 |
Features:
Excellent resistance to pitting, crevice corrosion and stress corrosion cracking;
Resist oxidizing acids and non-oxidizing acids;
Good mechanical behavior in high temperature;
Good welding performance.
Applications:
Used for filter, sieve, dipping tube, heating element;
As the elements of washing tube, heat exchanger, acid gas pipes;
Used in sulfuric acid pickling plant, oil refining, food processing, marine industry.
Specifications:
Mesh | Wire Diameter | Opening (mm) | |
mm | inch | ||
2 mesh | 1.8 | 0.071 | 10.9 |
3 mesh | 1.6 | 0.063 | 6.866 |
4 mesh | 1.2 | 0.047 | 5.15 |
5 mesh | 0.91 | 0.036 | 4.17 |
6 mesh | 0.711 | 0.028 | 3.522 |
8 mesh | 0.61 | 0.024 | 2.565 |
10 mesh | 0.508 | 0.02 | 2.032 |
12 mesh | 0.457 | 0.018 | 1.66 |
14 mesh | 0.417 | 0.016 | 1.397 |
16 mesh | 0.345 | 0.014 | 1.243 |
18 mesh | 0.315 | 0.012 | 1.096 |
20 mesh | 0.315 | 0.0124 | 0.955 |
22 mesh | 0.315 | 0.0124 | 0.84 |
24 mesh | 0.315 | 0.0124 | 0.743 |
26 mesh | 0.295 | 0.0116 | 0.682 |
28 mesh | 0.295 | 0.0116 | 0.612 |
30 mesh | 0.274 | 0.011 | 0.573 |
32 mesh | 0.254 | 0.01 | 0.54 |
34 mesh | 0.234 | 0.0092 | 0.513 |
36 mesh | 0.234 | 0.0092 | 0.472 |
38 mesh | 0.213 | 0.0084 | 0.455 |
40 mesh | 0.193 | 0.0076 | 0.442 |
42 mesh | 0.193 | 0.0076 | 0.412 |
44 mesh | 0.173 | 0.0068 | 0.404 |
46 mesh | 0.173 | 0.0068 | 0.379 |
48 mesh | 0.173 | 0.0068 | 0.356 |
50 mesh | 0.173 | 0.0068 | 0.335 |
60 × 50 mesh | 0.193 | 0.0076 | - |
60 × 50 mesh | 0.173 | 0.0068 | - |
60 mesh | 0.173 | 0.0068 | 0.25 |
70 mesh | 0.132 | 0.0052 | 0.231 |
80 mesh | 0.122 | 0.0048 | 0.196 |
90 mesh | 0.112 | 0.0044 | 0.17 |
100 mesh | 0.012 | 0.004 | 0.152 |
120 × 108 mesh | 0.091 | 0.0036 | - |
120 mesh | 0.081 | 0.0032 | 0.131 |
140 mesh | 0.061 | 0.0024 | 0.12 |
150 mesh | 0.061 | 0.0024 | 0.108 |
160 mesh | 0.061 | 0.0024 | 0.098 |
180 mesh | 0.051 | 0.002 | 0.09 |
200 mesh | 0.051 | 0.002 | 0.076 |
220 mesh | 0.051 | 0.002 | 0.065 |
250 mesh | 0.041 | 0.0016 | 0.061 |
280 mesh | 0.035 | 0.0014 | 0.056 |
300 mesh | 0.031 | 0.0012 | 0.054 |
320 mesh | 0.031 | 0.0012 | 0.046 |
330 mesh | 0.031 | 0.0012 | 0.042 |
350 mesh | 0.031 | 0.0012 | 0.039 |
360 mesh | 0.025 | 0.001 | 0.0385 |
400 mesh | 0.025 | 0.001 | 0.0385 |
Other specifications according to your request.
