HAYNES 214 Wire Mesh Oxidation Resistance In Ceramics And Metallurgy

Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 2Rolls
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
Delivery Time 2weeks
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Remains Stable In High Temperature, Corrosion Product Name Incoloy 800 Wire Mesh
Material Incoloy 800 Woven Type Plain Weave, Twill Weave, Dutch Weave
Mesh Counts 2 To 400 Wire 0.025-1.80mm
Alloy Nickel, Iron And Chromium Application It Is Used Including Chemical, Nuclear, Petroleum, Food Processing Industries.
High Light

Ceramics HAYNES 214 Wire Mesh

,

Metallurgy HAYNES 214 Wire Mesh

,

Oxidation Resistance HAYNES 214 Wire Mesh

Leave a Message
Product Description

HAYNES 214 Wire Mesh Has Oxidation Resistance in Ceramics and Metallurgy



HAYNES 214 Wire Mesh Introduction:



HAYNES 214 wire mesh is a kind of nickel base alloy with excellent resistance to oxidation and corrosion in high temperature. It also has good strength and abrasion resistance. Haynes 214 wire mesh can service as filter disc, heating element. It can be also widely used in ceramics, chemical, electronic, aerospace, metallurgy industries.



Material:



Pure Nickel Series: Nickel 200 (EN 2.4060), Nickel 201 (EN 2.4061), Nickel 270 (EN 2.4050)
Nickel Alloy Series: Cr20Ni80 (EN 2.4869)



HAYNES 214 Wire Mesh Chemical Composition (%)
Ni Cr Fe C Al Mn Si Zr
75 16 3 0.05 4.5 0.5 0.2 0.1



Nickel 200 and 201 are considered as commercially pure. With 99.6% grade, the low carbon content of 201 prevents the metal alloy from becoming brittle when exposed to temperatures 600F and above. The Nickel 270 is considered as high purity grade metal alloy, produced through powder metallurgy.



Features:



Excellent resistance to oxidation, high temperature, corrosion;
Resist to arburization and chlorine;
Good welding performance and strength.



Applications:



Used for filter or heating element, furnace component;
Service in ceramics, aerospace, chemical, metallurgy, electronic industries, etc.



Specifications:

Specifications of Nickel 200 Wire Mesh
Mesh Wire Diameter Opening
mm inch (mm)
2 mesh 1.8 0.071 10.9
3 mesh 1.6 0.063 6.866
4 mesh 1.2 0.047 5.15
5 mesh 0.91 0.036 4.17
6 mesh 0.711 0.028 3.522
8 mesh 0.61 0.024 2.565
10 mesh 0.508 0.02 2.032
12 mesh 0.457 0.018 1.66
14 mesh 0.417 0.016 1.397
16 mesh 0.345 0.014 1.243
18 mesh 0.315 0.012 1.096
20 mesh 0.315 0.0124 0.955
22 mesh 0.315 0.0124 0.84
24 mesh 0.315 0.0124 0.743
26 mesh 0.295 0.0116 0.682
28 mesh 0.295 0.0116 0.612
30 mesh 0.274 0.011 0.573
32 mesh 0.254 0.01 0.54
34 mesh 0.234 0.0092 0.513
36 mesh 0.234 0.0092 0.472
38 mesh 0.213 0.0084 0.455
40 mesh 0.193 0.0076 0.442
42 mesh 0.193 0.0076 0.412
44 mesh 0.173 0.0068 0.404
46 mesh 0.173 0.0068 0.379
48 mesh 0.173 0.0068 0.356
50 mesh 0.173 0.0068 0.335
60 mesh 0.173 0.0068 0.25
70 mesh 0.132 0.0052 0.231
80 mesh 0.122 0.0048 0.196
90 mesh 0.112 0.0044 0.17
100 mesh 0.012 0.004 0.152
120 mesh 0.081 0.0032 0.131
140 mesh 0.061 0.0024 0.12
150 mesh 0.061 0.0024 0.108
160 mesh 0.061 0.0024 0.098
180 mesh 0.051 0.002 0.09
200 mesh 0.051 0.002 0.076
220 mesh 0.051 0.002 0.065
250 mesh 0.041 0.0016 0.061
280 mesh 0.035 0.0014 0.056
300 mesh 0.031 0.0012 0.054
320 mesh 0.031 0.0012 0.046
330 mesh 0.031 0.0012 0.042
350 mesh 0.031 0.0012 0.039
360 mesh 0.025 0.00098 0.0385
400 mesh 0.025 0.00098 0.0385

Other specifications according to your request.

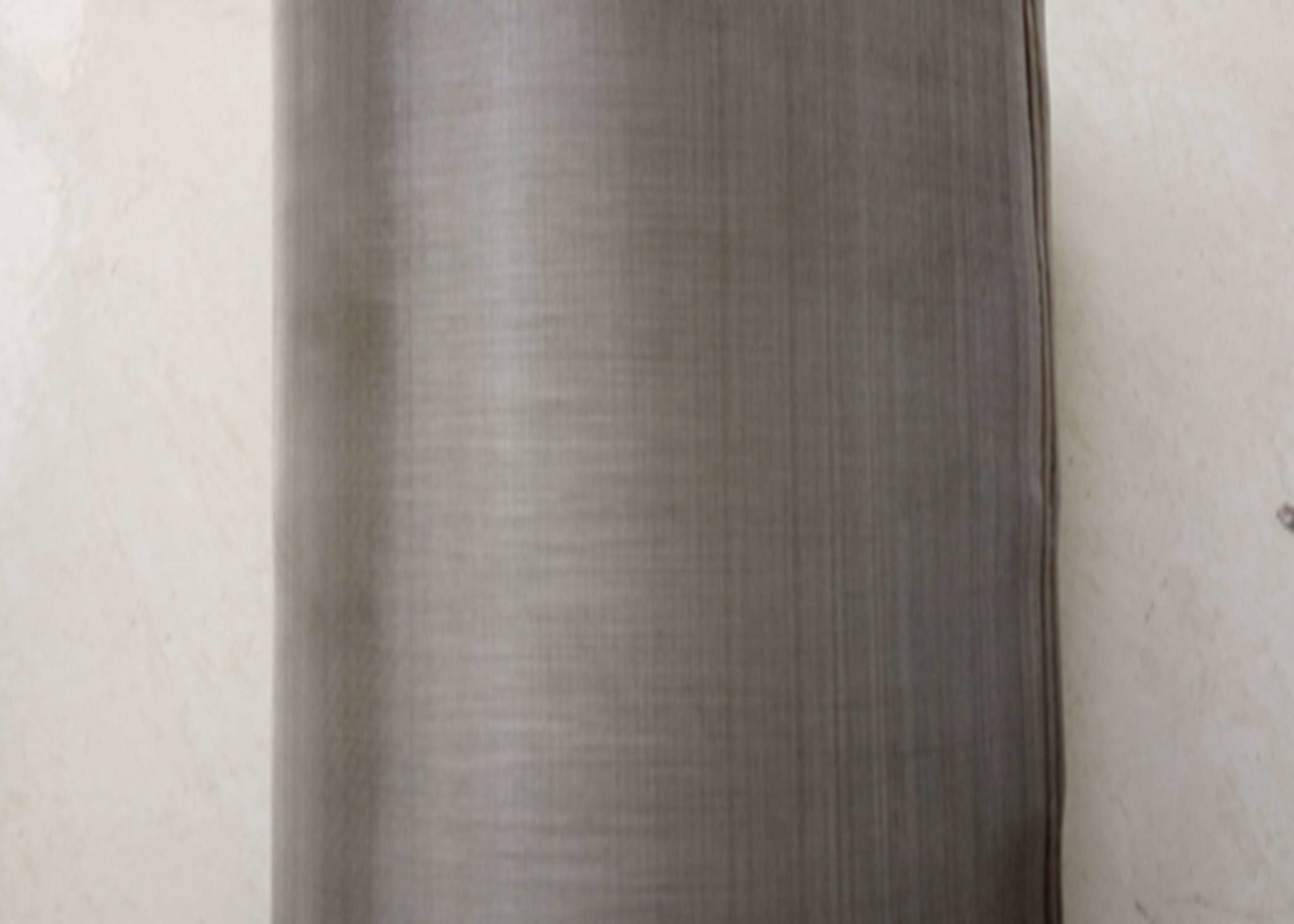

HAYNES 214 Wire Mesh Oxidation Resistance In Ceramics And Metallurgy 0

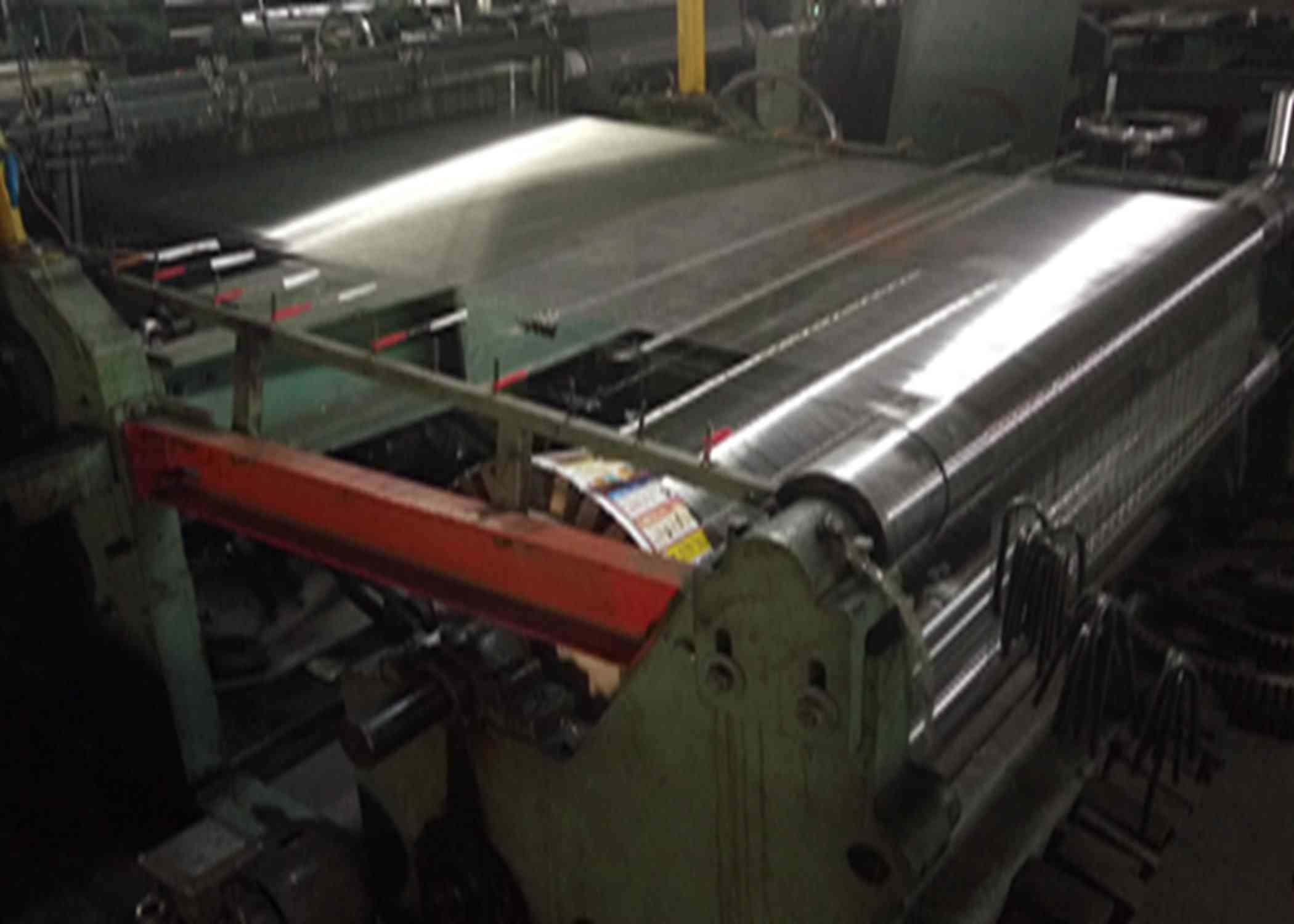

HAYNES 214 Wire Mesh Oxidation Resistance In Ceramics And Metallurgy 1



Packing: Wrapped with waterproof paper, plastic film;
In wooden boxes, carton or pallets.
