Monel K500 Weave Wire Mesh With High Strength Used In Aerospace Chemical
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Monel K500 Wire Mesh | Material | Monel K500. |
|---|---|---|---|
| Standard | ASTM | Composed | Primarily Of Copper And Nickel |
| Wire Diameter | 0.0021" - 0.028". | Hole Shapes | Square |
| Mesh Counts | 8 To 200 Per Inch | Weave Type | Plain Weave And Twill Weave. |
| Feature | Excellent Hardness. | Applicatioin | In Chemical, Petroleum, Aerospace, Marine, Paper Making Equipment. |
| Highlight | High Strength Monel K500 Wire Mesh,Aerospace Monel K500 Wire Mesh,Chemical Monel K500 Wire Mesh |
||
Product Description
Monel K500 Weave Wire Mesh With High Strength Used In Aerospace, Chemical
Monel wire mesh introduction:
Monel K500 wire mesh possesses good corrosion resistance like the monel 400 wire mesh. Adding aluminum, titanium, it has higher tensile and yield strength.

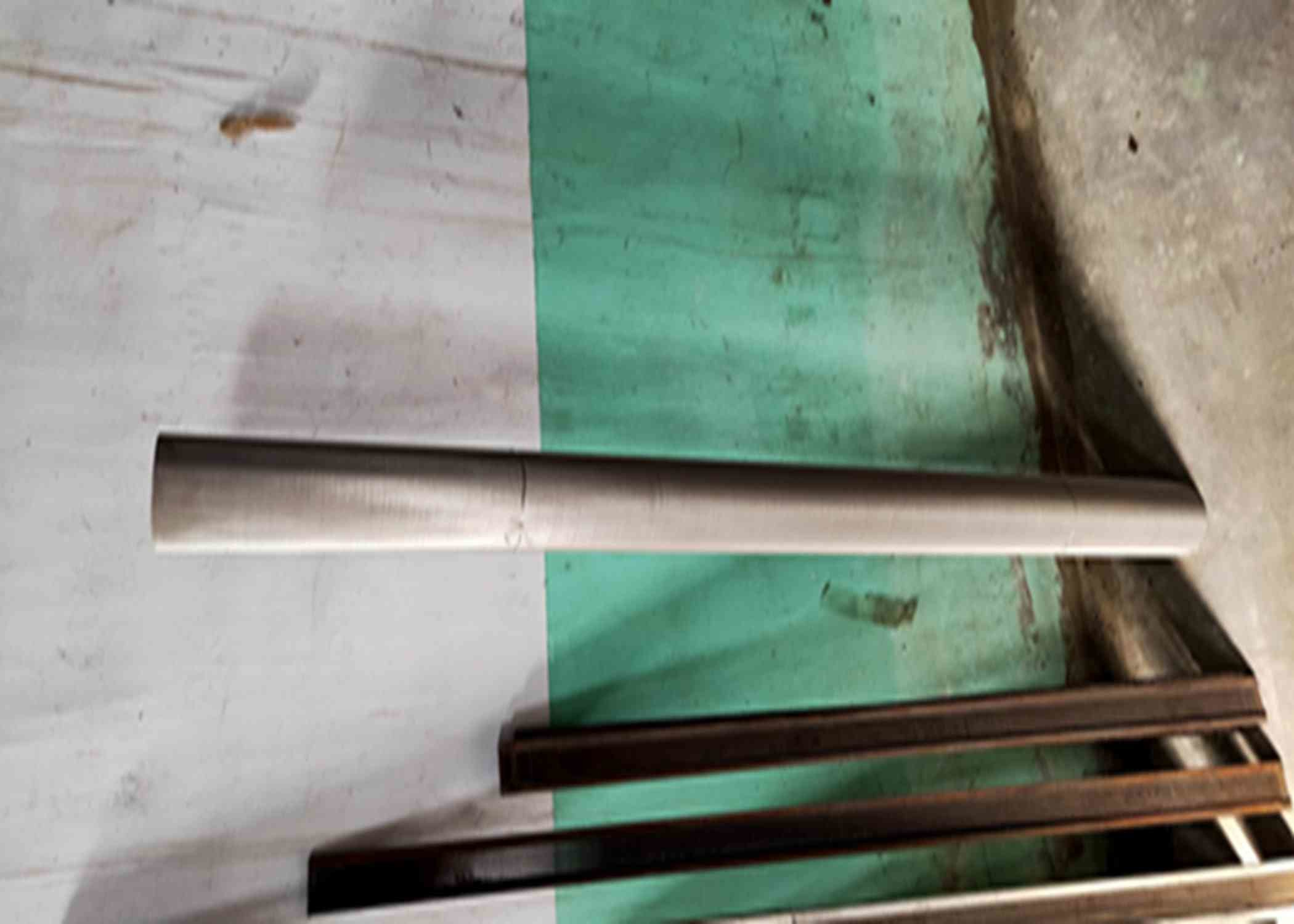

Monel wire mesh can be made into filter disc or tube, heat exchanger, etc. And it play an important role in chemical, petroleum, aerospace, marine, paper making equipment.
Material:
Monel400, Monel401, Monel404, Monel R405, Moenl K500 and Inconel wire. Monel400 alloy wire is the most common material that corrosion resisting in the hydrofluoric acid, muriatic acid, phosphoric acid, organic acid and alkaline medium.
| Ni ≥ | Cu | Al | Ti | Fe ≤ | Mn ≤ | S ≤ | C ≤ | Si ≤ |
|---|---|---|---|---|---|---|---|---|
| 63 | 27.0–33.0 | 2.30–3.15 | 0.35–0.85 | 2.0 | 1.5 | 0.01 | 0.25 | 0.5 |
Weave Pattern: plain weave, twill weave, dutch weave.
The most popular specification:
Material: monel 400 and monel K500.
Weaving type: plain weave and twill weave.
Wire diameter: 0.0021" - 0.028".
Mesh size: 8 mesh to 200 mesh.
|
Mesh |
Wire Diameter |
Opening |
|
|
mm |
inch |
(mm) |
|
|
2 mesh |
1.8 |
0.071 |
10.9 |
|
3 mesh |
1.6 |
0.063 |
6.866 |
|
4 mesh |
1.2 |
0.047 |
5.15 |
|
5 mesh |
0.91 |
0.036 |
4.17 |
|
6 mesh |
0.711 |
0.028 |
3.522 |
|
8 mesh |
0.61 |
0.024 |
2.565 |
|
10 mesh |
0.508 |
0.02 |
2.032 |
|
12 mesh |
0.457 |
0.018 |
1.66 |
|
14 mesh |
0.417 |
0.016 |
1.397 |
|
16 mesh |
0.345 |
0.014 |
1.243 |
|
18 mesh |
0.315 |
0.012 |
1.096 |
|
20 mesh |
0.315 |
0.0124 |
0.955 |
|
22 mesh |
0.315 |
0.0124 |
0.84 |
|
24 mesh |
0.315 |
0.0124 |
0.743 |
|
26 mesh |
0.295 |
0.0116 |
0.682 |
|
28 mesh |
0.295 |
0.0116 |
0.612 |
|
30 mesh |
0.274 |
0.011 |
0.573 |
|
32 mesh |
0.254 |
0.01 |
0.54 |
|
34 mesh |
0.234 |
0.0092 |
0.513 |
|
36 mesh |
0.234 |
0.0092 |
0.472 |
|
38 mesh |
0.213 |
0.0084 |
0.455 |
|
40 mesh |
0.193 |
0.0076 |
0.442 |
|
42 mesh |
0.193 |
0.0076 |
0.412 |
|
44 mesh |
0.173 |
0.0068 |
0.404 |
|
46 mesh |
0.173 |
0.0068 |
0.379 |
|
48 mesh |
0.173 |
0.0068 |
0.356 |
|
50 mesh |
0.173 |
0.0068 |
0.335 |
|
60 mesh |
0.173 |
0.0068 |
0.25 |
|
70 mesh |
0.132 |
0.0052 |
0.231 |
|
80 mesh |
0.122 |
0.0048 |
0.196 |
|
90 mesh |
0.112 |
0.0044 |
0.17 |
|
100 mesh |
0.012 |
0.004 |
0.152 |
|
120 mesh |
0.081 |
0.0032 |
0.131 |
|
140 mesh |
0.061 |
0.0024 |
0.12 |
|
150 mesh |
0.061 |
0.0024 |
0.108 |
|
160 mesh |
0.061 |
0.0024 |
0.098 |
|
180 mesh |
0.051 |
0.002 |
0.09 |
|
200 mesh |
0.051 |
0.002 |
0.076 |
Other specifications according to your requirements.
Features:
Corrosion resistance in the sea water.
Corrosion resistance in the chemical solvent.
Corrosion resistance in the acidoid, such as hydrofluoric acid, phosphoric acid.
Corrosion resistance in the alkaline matter.
Resist to stress corrosion cracking.
High tensile strength.
Excellent hardness.
Long lasting and durable.
Usage:
The monel woven wire mesh has outstanding corrosion resistance features, so it is widely used in the marine industries, such as the piping system and strainer baskets.
The monel woven wire mesh can remain a perfect condition in the chemicals, so it is widely used in the petrochemical industries, like the chemical processing equipment and heat exchanger.
Packing:
Inside with a paper core, outside with a piece of waterproof, the in wooden case.
