Strong Corrosion Resistance Tantalum Wire Cloth Used As Substitute For Platinum Or Filter

  • Strong Corrosion Resistance Tantalum Wire Cloth Used As Substitute For Platinum Or Filter
  • Strong Corrosion Resistance Tantalum Wire Cloth Used As Substitute For Platinum Or Filter
  • Strong Corrosion Resistance Tantalum Wire Cloth Used As Substitute For Platinum Or Filter
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 2Rolls
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
Delivery Time 2weeks
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Good Ductility And Toughness Product Name Tantalum Woven Wire Mesh
Material Tantalum Hole Shapes Square
Woven Type Plain Weave, Twill Weaveplain Weave, Twill Weave, Dutch Weave Wire 0.06mm To 1.8mm
Mesh Counts Up To 150 Mesh Common Width 0.3–2 M
Common Length 10–30 M Or Customized Application Used In Sieving Or Gas-liquid Filtration And Other Media Separation Processes
High Light

Substitute Platinum Tantalum Wire Cloth

,

Strong Corrosion Resistance Tantalum Wire Cloth

,

Filter Tantalum Wire Cloth
Leave a Message
Product Description

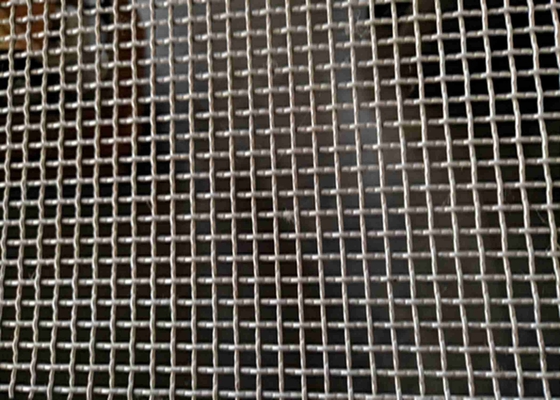

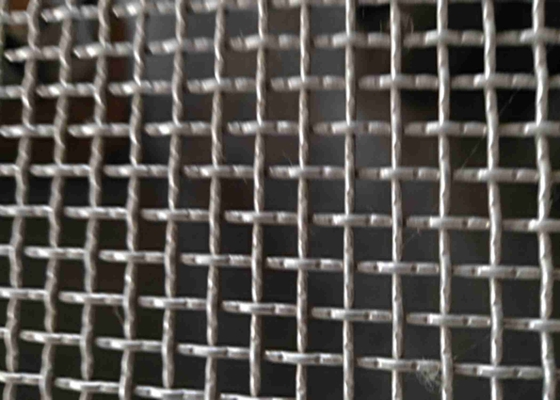

Strong Corrosion Resistance Tantalum Wire Cloth Used As Substitute For Platinum Or Filter



Tantalum Woven Wire Mesh Introduction:



Tantalum wire cloth is a kind of rare metal wire mesh possessing good physical and chemical properties. And because of its good ductility, we can design it into various application products according to your needs.



Tantalum wire mesh has high melting point and good corrosion resistance, and it can be used for filter in metallurgical, machinery processing, glass and ceramic industries. In medical, heating, or electronic industries, tantalum wire mesh also shows its excellent abilities.



Features:

High melting point. It can be up to 2996 °C / 5425 °F.
Strong corrosion resistance and excellent chemical stability. Stable in any element below 150 °C temperature.
Good ductility and toughness
Excellent filtering performance. plain, twill and dutch weave in various wire diameters and meshes can satisfy different filtering fineness and using conditions.



Applications:



Used in sieving or gas-liquid filtration and other media separation processes;
As a substitute for platinum;
Used for heating element;
In medicine, tantalum mesh thin sheet can be used to stitch injured tissue.



Materials:

Table 1: Tantalum Chemical Composition (%)
Element C Cb Fe H Mo N Ni O Si Ta Ti W
Content 0.01 0.05 0.01 0.001 0.01 0.01 0.01 0.015 0.005 Rem. 0.01 0.03

Specifications:

Plain & Twill Weave Tantalum Woven Wire Mesh/Cloth
mesh Wire Diameter Weaving Type Mesh Opening Open Area
inch mm inch mm
8 × 8 0.02 0.508 Plain 0.105 2.667 70.6
14 × 14 0.016 0.4064 Plain 0.0554 1.4072 60.2
30 × 30 0.003 0.0762 Plain 0.0303 0.7696 82.8
35 × 35 0.0078 0.1981 Twill 0.0208 0.5283 52.9
50 × 50 0.003 0.0762 Plain 0.017 0.4318 72.3
80 × 80 0.003 0.0762 Plain 0.0095 0.2413 57.8
100 × 100 0.003 0.0762 Twill 0.007 0.1778 49
8 × 8 0.028 0.71 Plain 0.097 2.465 60.2
10 × 10 0.0252 0.64 Plain 0.0748 1.9 55.9
12 × 12 0.0228 0.58 Plain 0.0605 1.537 58.9
14 × 14 0.0165 0.42 Plain 0.0547 1.39 59
16 × 16 0.015 0.38 Plain 0.0476 1.21 57.9
18 × 18 0.0157 0.4 Plain 0.0398 1.01 51.3
20 × 20 0.0157 0.4 Plain 0.0343 0.87 46.9
24 × 24 0.0106 0.27 Plain 0.031 0.788 55.4
28 × 28 0.0091 0.23 Plain 0.0267 0.677 55.7
30 × 30 0.011 0.28 Plain 0.0223 0.567 44.8
35 × 35 0.013 0.33 Plain 0.0156 0.396 29.7
40 × 40 0.0098 0.25 Plain 0.0152 0.385 36.7
50 × 50 0.0063 0.16 Plain 0.015 0.381 36
60 × 60 0.0063 0.16 Plain 0.0104 0.263 39
80 × 80 0.0047 0.12 Plain 0.0078 0.198 39
100 × 100 0.0039 0.1 Plain 0.0061 0.154 37
120 × 120 0.0031 0.08 Plain 0.0052 0.132 38.7
150 × 150 0.0024 0.06 Plain 0.0043 0.109 41.5
200 × 200 0.002 0.05 Plain 0.003 0.077 36.7
300 × 300 0.0014 0.035 Plain 0.0019 0.049 34.4



Dutch Weave of Tantalum Woven Wire Mesh
Mesh Size (wire/inch) Wire Diameter
Inch mm
12 × 64 0.0228/0.0157 0.580/0.400
24 × 110 0.0142/0.0098 0.360/0.250
14 × 88 0.0197/0.0130 0.500/0.330
14 × 110 0.0157/0.0106 0.400/0.270
30 × 150 0.0071/0.0055 0.180/0.140
40 × 200 0.0055/0.0043 0.140/0.110
50 × 250 0.0039/0.0028 0.100/0.071
80 × 700 0.0024/0.0020 0.060/0.050
165 × 800 0.0028/0.0016 0.071/0.040
165 × 1400 0.0020/0.0013 0.050/0.032
200 × 1800 0.0020/0.0012 0.050/0.030
325 × 2300 0.0012/0.0010 0.030/0.025

Other specifications according to your request.





Four woven tantalum screen tubes stand here with fine holes.
