Titanium Wire Cloth Excellent Corrosion Resistance Low Density And High Specific Strength

  • Titanium Wire Cloth Excellent Corrosion Resistance Low Density And High Specific Strength
  • Titanium Wire Cloth Excellent Corrosion Resistance Low Density And High Specific Strength
  • Titanium Wire Cloth Excellent Corrosion Resistance Low Density And High Specific Strength
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 2Rolls
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
Delivery Time 2weeks
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Excellent Corrosion Resistance Low Density And High Specific Strength Product Name Titanium Wire Cloth
Material Titanium Wire Standard ASTM
Hole Shapes Square Woven Type Plain Weave, Twill Weave
Mesh Counts 3 To 100 Width 0.3–2 M.
Length 10–30 M Or Customized Usages Filtering In Chemical, Mechanical, Desalination
Highlight

High Specific Strength Titanium Wire Cloth

,

Low Density Titanium Wire Cloth

,

Excellent Corrosion Resistance Titanium Wire Cloth
Leave a Message
Product Description

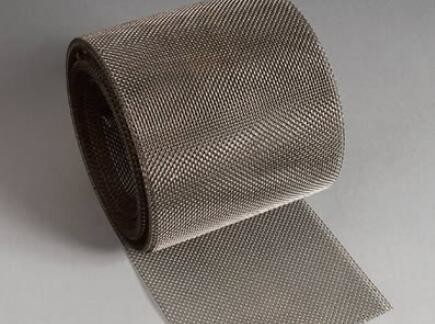

Titanium Wire Cloth Excellent Corrosion Resistance Low Density And High Specific Strength



Titanium woven wire mesh introduction:



Titanium wire cloth has excellent corrosion resistance, low density and high specific strength. In the corrosion environment, its surface will form an oxidation film layer to protect wire mesh from being corroded, and especially in sea water, wet chlorine, chlorite, organic salts, it shows a better corrosion resistance.



Titanium wire mesh plays an important role in filtering in chemical, mechanical, desalination. What's more, it also can be used for skull repair, electromagnetic shielding or speaker vibration film.



Specs:

Width: 0.3–2 m.
Roll length: 10–30 m or customized.
Weaving methods: plain weave, twill weave, dutch weave.
Packing: wrapped with moisture-proof paper or plastic film and then put in wooden cases or on pallet.





Specifications of Titanium Wire Mesh
Mesh/Inch

Wire Diameter

(mm)

Opening

(mm)

Open Area

(%)
3 0.800 7.670 82.0%
4 1.000 5.350 71.0%
4 0.890 5.460 74.0%
5 1.000 4.080 64.5%
6 0.800 3.433 65.8%
8 0.810 2.365 55.40%
9 0.800 2.022 51.3%
10 1.000 1.540 36.8%
10 0.635 1.905 56.2%
12 0.600 1.517 51.3%
14 0.406 1.408 60.2%
16 0.450 1.138 51.3%
18 0.254 1.157 67.2%
20 0.300 0.970 58.30%
20 0.350 0.920 52.5%
24 0.250 0.808 57.9%
30 0.280 0.567 45.0%
32 0.250 0.544 46.5%
35 0.230 0.496 46.9%
40 0.250 0.385 36.0%
40 0.210 0.425 44.8%
50 0.180 0.328 41.7%
60 0.150 0.273 41.7%
80 0.120 0.198 38.7%
80 0.100 0.218 46.9%
100 0.100 0.154 36.8%



Titanium Wire Cloth Excellent Corrosion Resistance Low Density And High Specific Strength 0



Characteristics:



Excellent corrosion resistance;
High specific strength and low density;
Good cryogenic and high temperature resistance;
Non-magnetic and non-toxic;
Low elastic modulus;
Good anti-damping performance.


Applications:

Filter in chemical, mechanical, desalination, oil, medicine, food processing;
Skull repair and reconstruction;
Electromagnetic shielding;
Speaker vibration film;
Used for accessories.


There are five titanium mesh filter discs with stainless steel frames.


Most Popular Specification:


Width: 5mm-2000mm
Weave Pattern: Plain weave, twill weave.


Titanium Wire Mesh, 100mesh 0.1mm Wire Diameter for Chemical Filter


Packing:



Inside with a paper core, outside with a piece of waterproof, the in wooden case.
