Great Strength Stainless Steel Crimped Wire Mesh Solid Structure For Grill Vibrating Screen

  • Great Strength Stainless Steel Crimped Wire Mesh Solid Structure For Grill Vibrating Screen
  • Great Strength Stainless Steel Crimped Wire Mesh Solid Structure For Grill Vibrating Screen
  • Great Strength Stainless Steel Crimped Wire Mesh Solid Structure For Grill Vibrating Screen
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 10Rolls
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
Delivery Time 3 weeks
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Great Strength And Solid Structure Product Name Stainless Steel Crimped Wire Mesh
Material Stainless Steel Surface Bright Silver
Opening 10–120 Mm Wire Diameter 0.6mm To 3.0mm
Width Up To 2000 Mm. Length 15m, 30m, 60m To 90m.
Frames Cut The Edges; Bent Edges; Sheathed Hooks. Applications Serves As Vibrating Screen, Grill
Highlight

3mm stainless steel crimped wire mesh

,

solid stainless steel crimped wire mesh

,

great strength steel crimped wire mesh
Leave a Message
Product Description

Stainless Steel Crimped Wire Mesh Great Strength And Solid Structure Used For Grill Vibrating Screen



Crimped Wire Mesh Introduction



Stainless steel crimped wire mesh is crimped before weaving, and it has strong structure, good loading capacity and beautiful appearance.

Crimped wire mesh can serve as quarry screen, infill panel, filter element, grill, etc. And it play an important role in mining, chemical, petroleum, construction industries.



Specifications:



Materials: stainless steel 301, 302, 304, 304L, 316, 316L, 321.
Mesh width: up to 2000 mm.
Aperture width: 10–120 mm in the case of multi-notch meshes and 4–40 mm in the case of single-notch meshes.
Weaving method: crimped before weaving.
Surface treatment: pickling and passivation, polishing, galvanized.



Single Intermediate Crimped Mesh
Wire Diameter Opening Open Area Rate
mm Inch mm Inch %
3.0 0.1181 3.35 0.1318 27.83
2.6 0.1023 3.75 0.1476 34.87
2.3 0.0905 4.05 0.1594 40.67
2.0 0.0787 4.35 0.1712 46.92
1.8 0.0708 4.55 0.1791 51.34
1.6 0.0629 4.75 0.1870 55.95
1.4 0.0551 4.95 0.1948 60.76
1.2 0.0472 5.15 0.2027 65.77
1.0 0.0393 5.35 0.2106 70.98
0.8 0.0314 5.55 0.2185 76.39
0.7 0.0275 5.65 0.2224 79.16
0.6 0.0236 5.75 0.2263 81.99



Other Specifications according to your requirements.



SS, Cu, Al Material Single Intermediate Crimped Wire Mesh, 4Mesh 0.6-3mm Wire



Material:



Standard materials of flat top crimped wire mesh are low/mild/high carbon steel and stainless steel 201, 202, 304, 316, 321, 410, 430.

Following material available:
Copper: brass, pure copper, phosphor bronze
Aluminum: 1050, 1060, 1100, 5052, 5056
Nickel: pure nickel, nickel alloy, monel

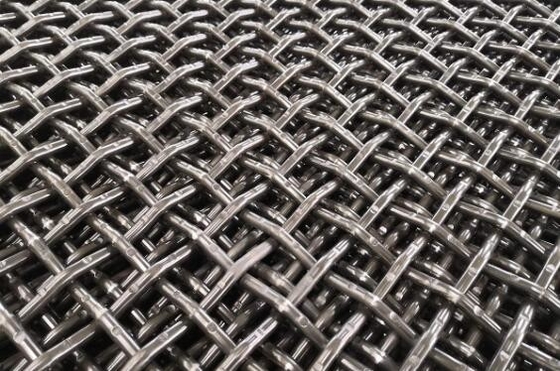

Great Strength Stainless Steel Crimped Wire Mesh Solid Structure For Grill Vibrating Screen 1

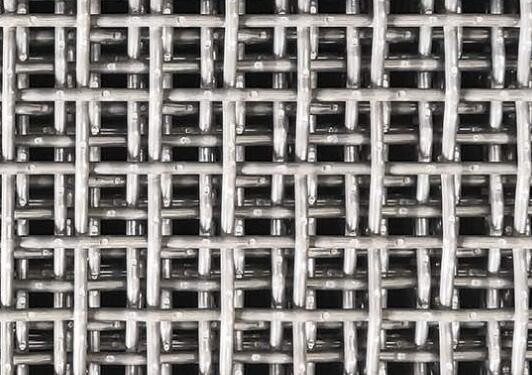

There is a rectangular hole stainless steel crimped wire mesh sheet.

Features:

Great strength and solid structure;
Good rust and corrosion resistance;
High loading capacity;
Long service life;
Beautiful surface.



Usage:



Serves as vibrating screen, filter element, infill panel, barbecue grill, baking rack;
Used in mining, chemical, petroleum, construction industries;
Designed into decoration, artwork.



Great Strength Stainless Steel Crimped Wire Mesh Solid Structure For Grill Vibrating Screen 3

Packing:



Crimped wire mesh is packed in rolls,wrapped in moisture-proof paper or plastic film, outside wooden cases or wooden pallet.



Great Strength Stainless Steel Crimped Wire Mesh Solid Structure For Grill Vibrating Screen 4
