625 Inconel Wire Mesh Aerospace Furnace Component Or Heat Exchanger

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | Inconel Wire Mesh | Material | Inconel 625 |
---|---|---|---|
Hole Shapes | Square | Woven Type | Plain Weave, Twill Weave |
Mesh Counts | 2 To 400 Mesh | Wire Diameter | 0.025mm To 1.800 |
Roll Width | 0.1m To 1.5m | Roll Length | 10m To 100m |
Feature | Excellent Resistance | Application | Used In Aerospace Furnace Component Or Heat Exchanger |
Highlight | 625 inconel wire mesh,heat exchanger inconel wire mesh,heat exchanger inconel mesh |

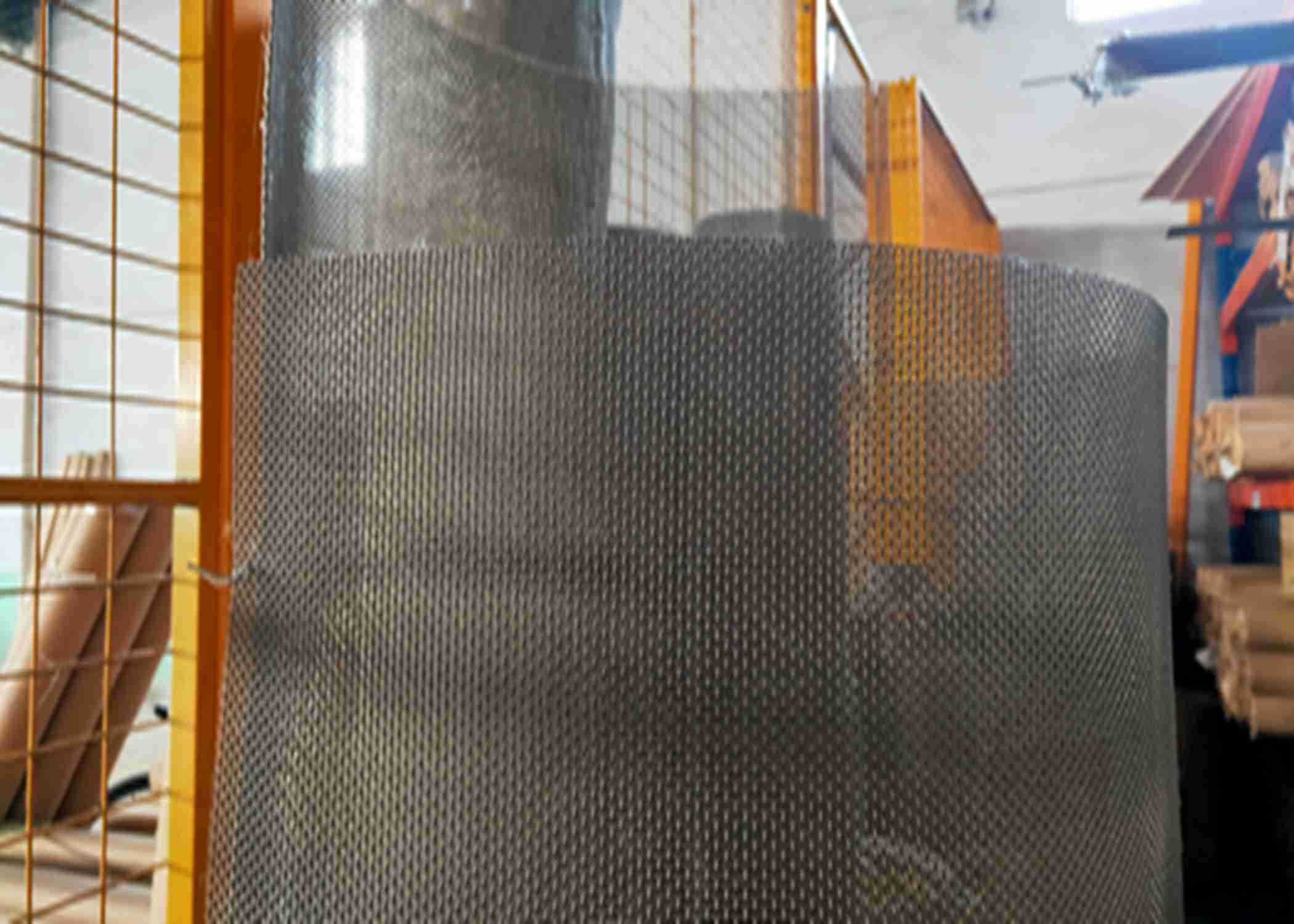

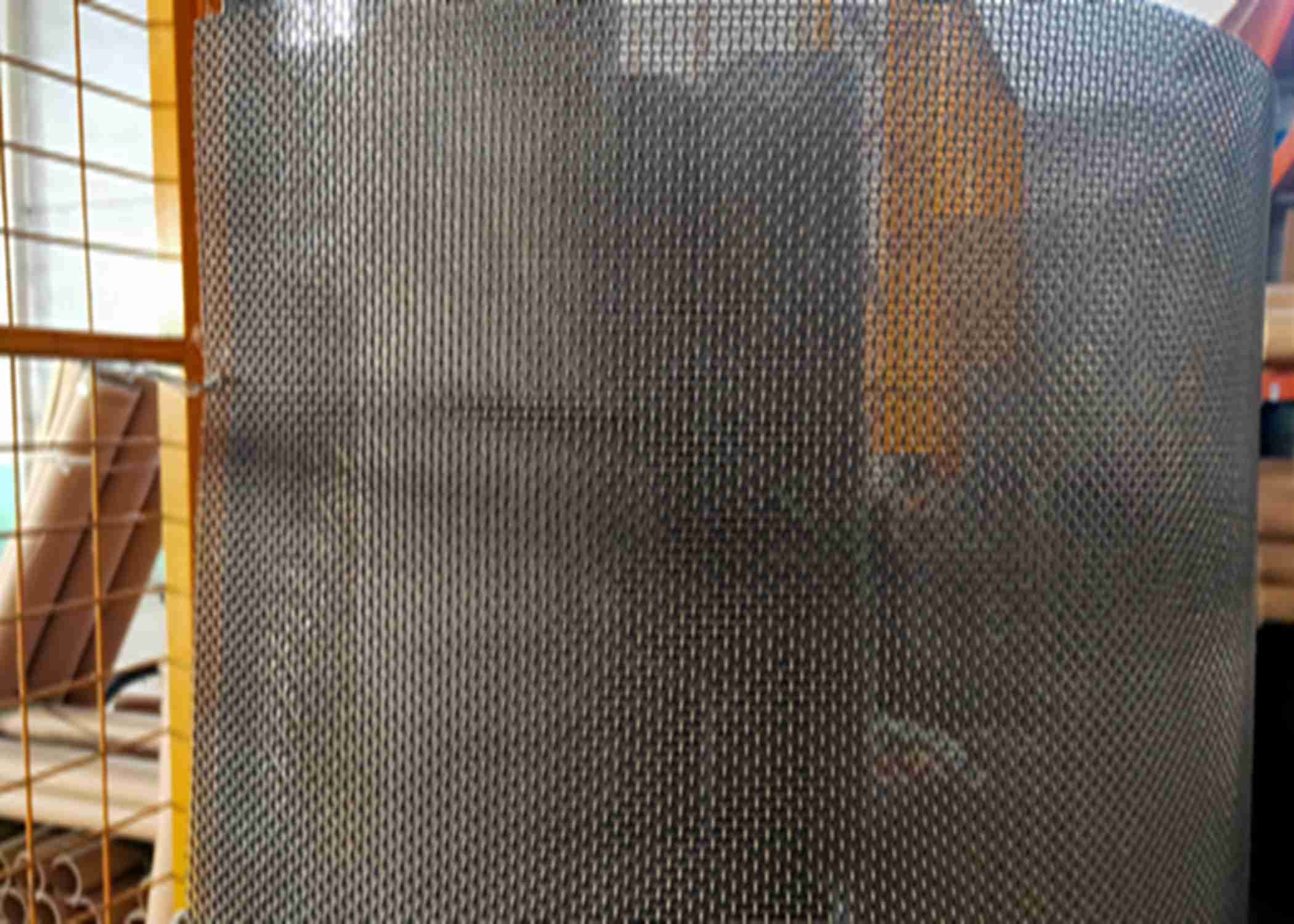

Inconel 625 Wire Mesh With Excellent Resistance Used In Aerospace Furnace Component Or Heat Exchanger
Inconel Woven Wire Mesh Introduction:
Inconel 625 wire mesh is a nickel-chromium-molybdenum-niobium alloy with excellent resistance to inorganic acid, pitting, crevice corrosion and good processing performance.
625 wire mesh can be made into filter, heat exchanger element and be used in pulp and paper industry, chloride-containing organic chemical processes, flue gas desulfurization system, marine industry, etc.
Weave Pattern: plain weave, twill weave.
Major Material: Inconel 625
Chemical Composition of Inconel 625 (%) | |||||||||||
C | Cr | Fe | Mn | Ni | S | Si | Al | Cb | Mo | P | Ti |
0.1 | 20 - 23 | 5 | 0.5 | Rem | 0.15 | 0.5 | 0.4 | 3.15 - 4.15 | 8 - 10 | 0.015 | 0.4 |
Feature:
Excellent resistance to various corrosive media in oxidation and reduction environment;
Resist to pitting, crevice corrosion and inorganic acid corrosion;
Good processing and welding performance;
Effective at high temperature;
High tensile strength, yield strength and stability.
Applications:
Filter or sieve materials in corrosive conditions;
Used for furnace component or heat exchanger;
Used in aerospace, pulp and paper industry, flue gas desulfurization system, marine industry, chloride-containing organic chemical processes, etc.
Commonen Specifications:
Mesh (Wires/ Inch) |
Wire Diameter (Inch) |
Width of Opening (Inch) |
Open Area (%) |
4 × 4 | 0.12 | 0.13 | 27 |
4 × 4 | 0.08 | 0.17 | 46.2 |
4 × 4 | 0.063 | 0.187 | 56 |
5 × 5 | 0.04 | 0.16 | 64 |
6 × 6 | 0.041 | 0.0126 | 57.2 |
8 ×8 | 0.047 | 0.078 | 38.9 |
8 × 8 | 0.041 | 0.084 | 45.2 |
8 × 8 | 0.03 | 0.095 | 57.8 |
8 × 8 | 0.028 | 0.097 | 60.2 |
10 × 10 | 0.0225 | 0.075 | 56.3 |
10 × 10 | 0.015 | 0.085 | 72.3 |
12 × 12 | 0.041 | 0.042 | 25.4 |
12 × 12 | 0.025 | 0.058 | 48.4 |
16 × 16 | 0.036 | 0.0275 | 19.4 |
16 × 16 | 0.028 | 0.035 | 30.5 |
16 × 16 | 0.025 | 0.038 | 36 |
16 × 16 | 0.023 | 0.04 | 39.9 |
16 × 16 | 0.018 | 0.045 | 50.7 |
18 × 18 | 0.028 | 0.028 | 24.7 |
20 × 20 | 0.016 | 0.034 | 46.2 |
22 × 22 | 0.015 | 0.031 | 45 |
24 × 24 | 0.014 | 0.028 | 44.2 |
24 × 24 | 0.012 | 0.03 | 50.8 |
28 × 28 | 0.013 | 0.023 | 40.4 |
30 × 30 | 0.015 | 0.018 | 30.1 |
30 × 30 | 0.01 | 0.0233 | 48.9 |
35 × 35 | 0.0055 | 0.0236 | 68.1 |
40 × 40 | 0.01 | 0.015 | 36 |
50 × 50 | 0.009 | 0.011 | 30.2 |
60 × 60 | 0.0075 | 0.0092 | 30.5 |
80 × 80 | 0.0055 | 0.007 | 31.4 |
100 × 100 | 0.004 | 0.006 | 36 |
100 × 100 | 0.0045 | 0.0055 | 30.2 |
120 × 120 | 0.0038 | 0.0046 | 30.7 |
120 × 120 | 0.002 | 0.0063 | 57.8 |
200 × 200 | 0.0021 | 0.0029 | 33.6 |
200 × 200 | 0.002 | 0.003 | 36 |
Mesh (Wires/ Inch) |
Wire Diameter (Inch) |
Width of Opening (Inch) |
Open Area (%) |
2 × 2 | 0.072 | 0.428 | 73.3 |
5 × 5 | 0.041 | 0.159 | 63.2 |
6 × 6 | 0.047 | 0.12 | 51.8 |
10 × 10 | 0.047 | 0.053 | 28.1 |
10 × 10 | 0.0225 | 0.075 | 56.3 |
10 × 10 | 0.015 | 0.085 | 72.3 |
12 × 12 | 0.025 | 0.058 | 48.4 |
18 × 18 | 0.017 | 0.039 | 48.3 |
24 × 24 | 0.014 | 0.028 | 44.2 |
30 × 30 | 0.017 | 0.0163 | 23.9 |
30 × 30 | 0.016 | 0.017 | 26.9 |
30 × 30 | 0.015 | 0.018 | 30.1 |
35 × 35 | 0.01 | 0.019 | 42.4 |
35 × 35 | 0.014 | 0.015 | 26.1 |
40 × 40 | 0.01 | 0.015 | 36 |
Mesh (Wires/ Inch) |
Wire Diameter (Inch) |
Width of Opening (Inch) |
Open Area (%) |
4 × 4 | 0.047 | 0.203 | 65.9 |
6 × 6 | 0.041 | 0.0126 | 57.2 |
8 ×8 | 0.035 | 0.09 | 51.8 |
8 × 8 | 0.032 | 0.093 | 55.4 |
8 × 8 | 0.024 | 0.101 | 65.29 |
20 × 20 | 0.0115 | 0.039 | 60.8 |
26 × 26 | 0.013 | 0.026 | 44 |
30 × 30 | 0.012 | 0.021 | 40.8 |
32 × 32 | 0.014 | 0.017 | 30.6 |
32 × 32 | 0.013 | 0.018 | 34.3 |
32 × 32 | 0.01 | 0.021 | 46.5 |
35 × 35 | 0.014 | 0.015 | 26.1 |
35 × 35 | 0.0135 | 0.015 | 27.9 |
35 × 35 | 0.01 | 0.019 | 42.4 |
40 × 40 | 0.0105 | 0.0145 | 33.65 |
40 × 40 | 0.0085 | 0.017 | 43.6 |
50 × 50 | 0.009 | 0.011 | 30.3 |
60 × 60 | 0.0075 | 0.009 | 30.5 |
100 × 100 | 0.004 | 0.006 | 36 |
100 × 100 | 0.0045 | 0.006 | 30.3 |
100 × 100 | 0.004 | 0.006 | 36 |
Mesh (Wires/ Inch) |
Wire Diameter (Inch) |
Width of Opening (Inch) |
Open Area (%) |
10 × 10 | 0.02 | 0.08 | 64 |
26 × 26 | 0.013 | 0.026 | 44 |
30 × 30 | 0.008 | 0.025 | 57.6 |
45 × 45 | 0.003 | 0.0192 | 74.8 |
Mesh (Wires/ Inch) |
Wire Diameter (Inch) |
Width of Opening (Inch) |
Open Area (%) |
80 × 80 | 0.0055 | 0.007 | 31.4 |

Packing:
1. waterproof paper inside, plastic bags then load in woodencase.
2. warweproof paper inside plastic bags then load in pallet.
3. as customers' requirement.
