3.5" Opening Lock Crimp Wire Mesh 0.138" Diameter Wire With Solid Construction

  • 3.5" Opening Lock Crimp Wire Mesh 0.138" Diameter Wire With Solid Construction
  • 3.5" Opening Lock Crimp Wire Mesh 0.138" Diameter Wire With Solid Construction
  • 3.5" Opening Lock Crimp Wire Mesh 0.138" Diameter Wire With Solid Construction
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 50Units
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
Delivery Time 20 days
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Solid Construction, Extremely Versatile, Extremely Chemical Resistant Product Name Lock Crimped Wire Mesh
Material Aluminum, Stainless Steel, Steel Type Lock Crimped
Hole Shape Square Hole Or Slot Hole Clear Opening 3.5"
Wire Diameter 0.138"or According To Your Requests Application Baskets, Architectural Grilles
Highlight

Solid Construction lock crimp wire mesh

,

3.5" Opening lock crimp wire mesh

,

Solid Construction steel crimped wire mesh
Leave a Message
Product Description

3.5" Opening Lock Crimped Wire Mesh 0.138" Diameter Wire With Solid Construction



Lock Crimped Wire Mesh Introduction:



Lock Crimp Woven Wire type is used only in coarse specifications to maintain the accuracy of weave throughout screen life, where the opening is large with respect to wire diameter.

Weaving Patterns: Weaving after crimping.

Materials: Stainless wire mesh, Aluminum, Copper, Brass



Stainless wire mesh is especially useful because it is extremely chemical resistant, works with hot or cold liquids, and is easily cleaned. Aluminum mesh is lightweight, strong, has a high electrical conductivity, and a low melting point. Aluminum mesh also significantly resists atmospheric corrosion. Carbon steel and galvanized wire mesh are strong, economical, and readily available. Other exotic materials such as copper and nickel can also be woven into wire mesh.



Weaving Patterns: Weaving after crimping.

Aperture width: 0.157" - 4"
Wire diameter: 0.039" - 0.189"

Mesh width: up to 80"



Specifications:



Lock Crimp Wire Mesh
Opening Wire Diameter Open Area
mm Inch mm Inch %
4.0 0.157 1.0 0.039 64.00
0.8 0.031 69.44
5.0 0.197 1.2 0.047 65.04
1.0 0.039 69.44
0.8 0.031 74.32
6.0 0.236 2.0 0.079 56.25
1.8 0.071 59.17
1.6 0.063 62.33
1.4 0.055 65.74
1.2 0.047 69.44
1.0 0.039 73.47
8.0 0.315 2.0 0.079 64.00
1.8 0.071 66.64
1.6 0.063 69.44
1.4 0.055 72.43
1.2 0.047 75.61
1.0 0.039 79.01
10.0 0.394 2.5 0.098 64.00
2.0 0.079 69.44
1.8 0.071 71.82
1.6 0.063 74.32
1.5 0.059 75.61
1.4 0.055 76.95
1.2 0.047 79.72
1.0 0.039 82.64
12.0 0.472 4.0 0.157 56.25
3.5 0.138 59.93
2.6 0.102 67.55
1.5 0.059 79.01
12.7 1/2” 4.0 0.157 57.83
3.5 0.138 61.46
3.0 0.118 65.43
2.5 0.098 69.81
2.0 0.079 74.64
1.8 0.071 76.71
15.0 0.591 4.8 0.189 57.39
4.5 0.177 59.17
4.0 0.157 62.33
3.5 0.138 65.74
3.0 0.118 69.44
2.6 0.102 72.63
2.5 0.098 73.47
2.0 0.079 77.85
19.0 0.748 4.8 0.189 63.73
4.0 0.157 68.24
3.5 0.138 71.30
20.0 0.787 4.8 0.189 65.04
4.5 0.177 66.64
4.0 0.157 69.44
3.5 0.138 72.43
3.0 0.118 75.61
2.5 0.098 79.01
2.0 0.079 82.64
25.0 0.984 4.8 0.189 70.37
3.5 0.138 76.94
3.0 0.118 79.71
2.0 0.079 85.73
25.4 1” 4.8 0.189 70.74
4.5 0.177 72.16
4.0 0.157 74.64
3.5 0.138 77.25
3.0 0.118 79.99
2.5 0.098 82.88
30.0 1.181 4.8 0.189 74.32
4.5 0.177 75.61
4.0 0.157 77.85
3.5 0.138 80.20
3.0 0.118 82.64
2.5 0.098 85.21
38.1 1-1/2” 4.8 0.189 78.87
4.5 0.177 79.99
4.0 0.157 71.90
3.5 0.138 83.88
3.0 0.118 85.93
2.5 0.098 88.06
50.8 2” 4.8 0.189 83.48
4.5 0.177 84.39
4.0 0.157 85.93
3.5 0.138 87.52
3.0 0.118 89.16
70.0 2.756 4.8 0.189 87.58
76.2 3” 4.8 0.189 88.50
4.5 0.177 89.16
4.0 0.157 90.27
3.5 0.138 91.41
88.9 3-1/2” 3.5 0.138 92.57
101.6 4” 4.8 0.189 91.18


Other sizes as your special request.



Features:



Solid construction
Extremely versatile
Easy to install
Can have low resistance to wind loads
Easily cut to fit
Available in many materials, such as stainless steel and aluminum

Applicatioins:



Woven wire mesh baskets
Woven wire mesh architectural grilles
Woven wire mesh display shelves and stands
Woven wire mesh racks
Woven wire mesh liquid filtration
Woven wire mesh air filtration
Woven wire mesh wall reinforcement
Woven wire mesh handrail panel inserts
Heavier woven wires must be pre-crimped. The material remains stable and rigid after the crimping process. Pre-crimped woven wire mesh is ideal for both industrial & architectural applications.

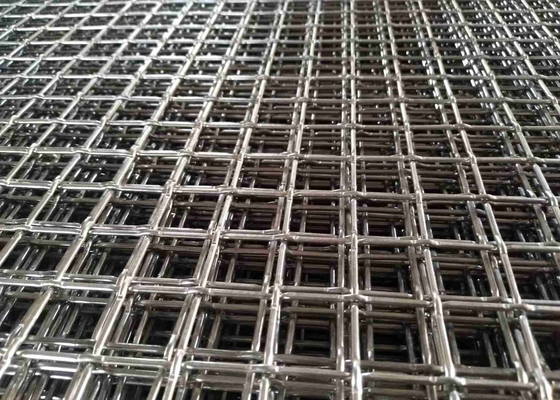

3.5" Opening Lock Crimp Wire Mesh 0.138" Diameter Wire With Solid Construction 0



Packing:



in waterproof paper and film, then in pallets. Custom packing available at request.

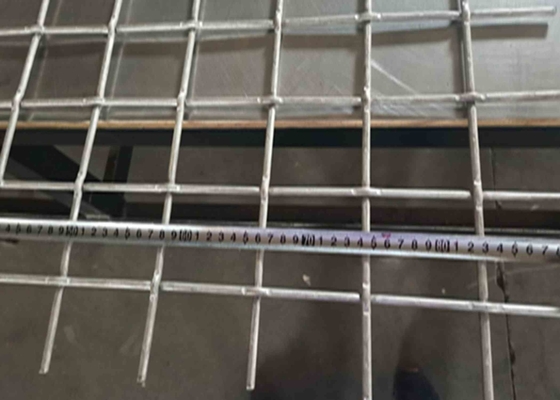

3.5" Opening Lock Crimp Wire Mesh 0.138" Diameter Wire With Solid Construction 1
