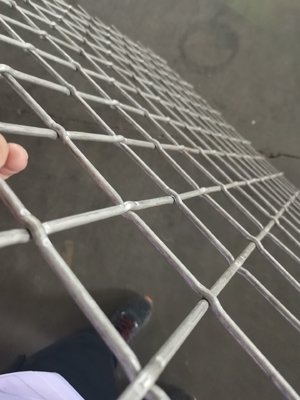

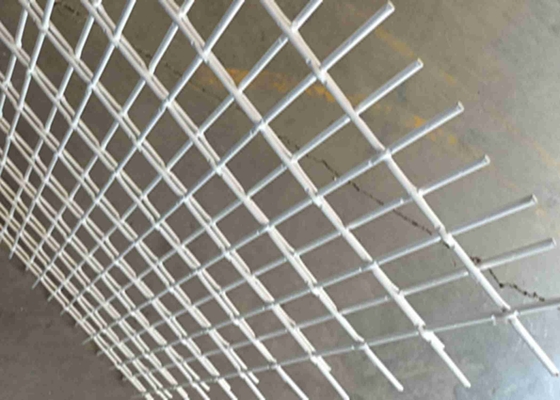

0.787" Opening Lock Crimped Wire Mesh 0.118" 0.098" Diameter Wire Firm Structure
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xFeatures | Firm Structure, Good Strength, Economy Cost | Product Name | Lock Crimped Wire Mesh |
---|---|---|---|
Material | Aluminum, Stainless Steel, Steel | Type | Lock Crimped |
Hole Shape | Square Hole Or Slot Hole | Clear Opening | 0.787" = 20mm |
Wire Diameter | 0.189" 0.177" 0.157" 0.138" 0.118" 0.098" 0.079" Or According To Your Requests | Application | Infill Panel & Railing Systems, Ceiling Panels, Etc |
High Light | 0.787" Opening Crimped Wire Mesh,Crimped Wire Mesh Firm structure,lock crimp wire mesh Firm structure |
0.787" Opening Lock Crimped Wire Mesh 0.189" 0.177" 0.157" 0.138" 0.118" 0.098" 0.079" Diameter Wire
Lock Crimped Wire Mesh Introduction:
Crimped Wire Mesh is made by corbon iron wire, galvanized steel wire or stainless steel wire.
Weaving Patterns: Weaving after crimping.
This kind of wire mesh is identified from a wire crimped only in the points of intersection, before weaving. Crimped wire mesh is only made on request and the wire used may be round or square.
It is made in a variety of materials through crimping mesh machine, a kind of universal wire products with square or rectangular openings. Our crimped wire mesh products are made of galvanized wire mesh and stainless steel wire mesh. According to loading capacity and wire used, it can be separated into heavy type and light type. Screening in mine and coal factory, construction and other industries. Some galvanized crimped wire mesh and stainless steel wire mesh manufacturers are for roasting of flour food.
Weaving Patterns: Weaving after crimping.
Aperture width: 0.157" - 4"
Wire diameter: 0.039" - 0.189"
Mesh width: up to 80"
Specifications:
Lock Crimp Wire Mesh | ||||
Opening | Wire Diameter | Open Area | ||
mm | Inch | mm | Inch | % |
4.0 | 0.157 | 1.0 | 0.039 | 64.00 |
0.8 | 0.031 | 69.44 | ||
5.0 | 0.197 | 1.2 | 0.047 | 65.04 |
1.0 | 0.039 | 69.44 | ||
0.8 | 0.031 | 74.32 | ||
6.0 | 0.236 | 2.0 | 0.079 | 56.25 |
1.8 | 0.071 | 59.17 | ||
1.6 | 0.063 | 62.33 | ||
1.4 | 0.055 | 65.74 | ||
1.2 | 0.047 | 69.44 | ||
1.0 | 0.039 | 73.47 | ||
8.0 | 0.315 | 2.0 | 0.079 | 64.00 |
1.8 | 0.071 | 66.64 | ||
1.6 | 0.063 | 69.44 | ||
1.4 | 0.055 | 72.43 | ||
1.2 | 0.047 | 75.61 | ||
1.0 | 0.039 | 79.01 | ||
10.0 | 0.394 | 2.5 | 0.098 | 64.00 |
2.0 | 0.079 | 69.44 | ||
1.8 | 0.071 | 71.82 | ||
1.6 | 0.063 | 74.32 | ||
1.5 | 0.059 | 75.61 | ||
1.4 | 0.055 | 76.95 | ||
1.2 | 0.047 | 79.72 | ||
1.0 | 0.039 | 82.64 | ||
12.0 | 0.472 | 4.0 | 0.157 | 56.25 |
3.5 | 0.138 | 59.93 | ||
2.6 | 0.102 | 67.55 | ||
1.5 | 0.059 | 79.01 | ||
12.7 | 1/2” | 4.0 | 0.157 | 57.83 |
3.5 | 0.138 | 61.46 | ||
3.0 | 0.118 | 65.43 | ||
2.5 | 0.098 | 69.81 | ||
2.0 | 0.079 | 74.64 | ||
1.8 | 0.071 | 76.71 | ||
15.0 | 0.591 | 4.8 | 0.189 | 57.39 |
4.5 | 0.177 | 59.17 | ||
4.0 | 0.157 | 62.33 | ||
3.5 | 0.138 | 65.74 | ||
3.0 | 0.118 | 69.44 | ||
2.6 | 0.102 | 72.63 | ||
2.5 | 0.098 | 73.47 | ||
2.0 | 0.079 | 77.85 | ||
19.0 | 0.748 | 4.8 | 0.189 | 63.73 |
4.0 | 0.157 | 68.24 | ||
3.5 | 0.138 | 71.30 | ||
20.0 | 0.787 | 4.8 | 0.189 | 65.04 |
4.5 | 0.177 | 66.64 | ||
4.0 | 0.157 | 69.44 | ||
3.5 | 0.138 | 72.43 | ||
3.0 | 0.118 | 75.61 | ||
2.5 | 0.098 | 79.01 | ||
2.0 | 0.079 | 82.64 | ||
25.0 | 0.984 | 4.8 | 0.189 | 70.37 |
3.5 | 0.138 | 76.94 | ||
3.0 | 0.118 | 79.71 | ||
2.0 | 0.079 | 85.73 | ||
25.4 | 1” | 4.8 | 0.189 | 70.74 |
4.5 | 0.177 | 72.16 | ||
4.0 | 0.157 | 74.64 | ||
3.5 | 0.138 | 77.25 | ||
3.0 | 0.118 | 79.99 | ||
2.5 | 0.098 | 82.88 | ||
30.0 | 1.181 | 4.8 | 0.189 | 74.32 |
4.5 | 0.177 | 75.61 | ||
4.0 | 0.157 | 77.85 | ||
3.5 | 0.138 | 80.20 | ||
3.0 | 0.118 | 82.64 | ||
2.5 | 0.098 | 85.21 | ||
38.1 | 1-1/2” | 4.8 | 0.189 | 78.87 |
4.5 | 0.177 | 79.99 | ||
4.0 | 0.157 | 71.90 | ||
3.5 | 0.138 | 83.88 | ||
3.0 | 0.118 | 85.93 | ||
2.5 | 0.098 | 88.06 | ||
50.8 | 2” | 4.8 | 0.189 | 83.48 |
4.5 | 0.177 | 84.39 | ||
4.0 | 0.157 | 85.93 | ||
3.5 | 0.138 | 87.52 | ||
3.0 | 0.118 | 89.16 | ||
70.0 | 2.756 | 4.8 | 0.189 | 87.58 |
76.2 | 3” | 4.8 | 0.189 | 88.50 |
4.5 | 0.177 | 89.16 | ||
4.0 | 0.157 | 90.27 | ||
3.5 | 0.138 | 91.41 | ||
88.9 | 3-1/2” | 3.5 | 0.138 | 92.57 |
101.6 | 4” | 4.8 | 0.189 | 91.18 |
Other sizes as your special request.
Features:
Crimped woven wire mesh offers great dimensional strength and stability, great resistance to abrasion, uniform openings and excellent anticorrosion. It is usually used as quarry screen in mine, quarry and other industrial fields as sieving, grading and separating screening materials.
Applicatioins:
Crimped wire mesh is used as fence or filters in a lot of industries; HeavyDuty Crimped wire mesh are also named Quarry Mesh, it is mostly used as screenin mining, coal factory.
Packing:
in waterproof paper and film, then in pallets. Custom packing available at request.
