Anti Acid Lock Crimp Wire Mesh 0.157" Opening 0.039" 0.031" Diameter Wire

  • Anti Acid Lock Crimp Wire Mesh 0.157" Opening 0.039" 0.031" Diameter Wire
  • Anti Acid Lock Crimp Wire Mesh 0.157" Opening 0.039" 0.031" Diameter Wire
  • Anti Acid Lock Crimp Wire Mesh 0.157" Opening 0.039" 0.031" Diameter Wire
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 50Units
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
Delivery Time 20 days
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Resistant To Alkali And Acid Product Name Lock Crimped Wire Mesh
Material Aluminum, Stainless Steel, Steel Type Lock Crimped
Hole Shape Square Hole Or Slot Hole Clear Opening 0.157"
Wire Diameter 0.039", 0.031", Or According To Your Requests Application Infill Panel & Railing Systems, Ceiling Panels, Etc
High Light

Anti Acid Lock Crimp Wire Mesh

,

Anti Acid steel crimped wire mesh

,

0.031" Wire Crimped Wire Mesh
Leave a Message
Product Description

0.157" Opening Lock Crimped Wire Mesh 0.039" And 0.031" Diameter Wire



Lock Crimped Wire Mesh Introduction:



Lock crimped is a refinement of the intermediate crimped. It can lock the wire at their position through pressed at each side of the raised wire. This structure can add the stability of the crimped woven wire mesh. Crimped Wire Mesh is made by corbon iron wire, galvanized steel wire or stainless steel wire. Weaving Patterns: Weaving after crimping.



This kind of wire mesh is identified from a wire crimped only in the points of intersection, before weaving. Crimped wire mesh is only made on request and the wire used may be round or square.



Weaving Patterns: Weaving after crimping.
Aperture width: 0.157" - 4"
Wire diameter: 0.039" - 0.189"
Mesh width: up to 80"



Specifications:



Lock Crimp Wire Mesh
Opening Wire Diameter Open Area
mm Inch mm Inch %
4.0 0.157 1.0 0.039 64.00
0.8 0.031 69.44
5.0 0.197 1.2 0.047 65.04
1.0 0.039 69.44
0.8 0.031 74.32
6.0 0.236 2.0 0.079 56.25
1.8 0.071 59.17
1.6 0.063 62.33
1.4 0.055 65.74
1.2 0.047 69.44
1.0 0.039 73.47
8.0 0.315 2.0 0.079 64.00
1.8 0.071 66.64
1.6 0.063 69.44
1.4 0.055 72.43
1.2 0.047 75.61
1.0 0.039 79.01
10.0 0.394 2.5 0.098 64.00
2.0 0.079 69.44
1.8 0.071 71.82
1.6 0.063 74.32
1.5 0.059 75.61
1.4 0.055 76.95
1.2 0.047 79.72
1.0 0.039 82.64
12.0 0.472 4.0 0.157 56.25
3.5 0.138 59.93
2.6 0.102 67.55
1.5 0.059 79.01
12.7 1/2” 4.0 0.157 57.83
3.5 0.138 61.46
3.0 0.118 65.43
2.5 0.098 69.81
2.0 0.079 74.64
1.8 0.071 76.71
15.0 0.591 4.8 0.189 57.39
4.5 0.177 59.17
4.0 0.157 62.33
3.5 0.138 65.74
3.0 0.118 69.44
2.6 0.102 72.63
2.5 0.098 73.47
2.0 0.079 77.85
19.0 0.748 4.8 0.189 63.73
4.0 0.157 68.24
3.5 0.138 71.30
20.0 0.787 4.8 0.189 65.04
4.5 0.177 66.64
4.0 0.157 69.44
3.5 0.138 72.43
3.0 0.118 75.61
2.5 0.098 79.01
2.0 0.079 82.64
25.0 0.984 4.8 0.189 70.37
3.5 0.138 76.94
3.0 0.118 79.71
2.0 0.079 85.73
25.4 1” 4.8 0.189 70.74
4.5 0.177 72.16
4.0 0.157 74.64
3.5 0.138 77.25
3.0 0.118 79.99
2.5 0.098 82.88
30.0 1.181 4.8 0.189 74.32
4.5 0.177 75.61
4.0 0.157 77.85
3.5 0.138 80.20
3.0 0.118 82.64
2.5 0.098 85.21
38.1 1-1/2” 4.8 0.189 78.87
4.5 0.177 79.99
4.0 0.157 71.90
3.5 0.138 83.88
3.0 0.118 85.93
2.5 0.098 88.06
50.8 2” 4.8 0.189 83.48
4.5 0.177 84.39
4.0 0.157 85.93
3.5 0.138 87.52
3.0 0.118 89.16
70.0 2.756 4.8 0.189 87.58
76.2 3” 4.8 0.189 88.50
4.5 0.177 89.16
4.0 0.157 90.27
3.5 0.138 91.41
88.9 3-1/2” 3.5 0.138 92.57
101.6 4” 4.8 0.189 91.18


Other sizes as your special request.



Features:



Stable and robust
High temperature resistant
Resistant to alkali and acid
Anti- corrosion
Wear resistance
Can sustain in the demanding conditions involving cold, heat, solvents, liquids, chemicals, and even sand and filter media
High abrasion resistance
Increased ability to resist pitting and crevice corrosion

Applicatioins:



Filtering
Sizing
Grading
Separating
Shifting
Screening
Grid window
Rack
Lift
Cages
Guards
Trays
Partitions
Poultry protection
Concrete reinforcement
Building construction
Paving

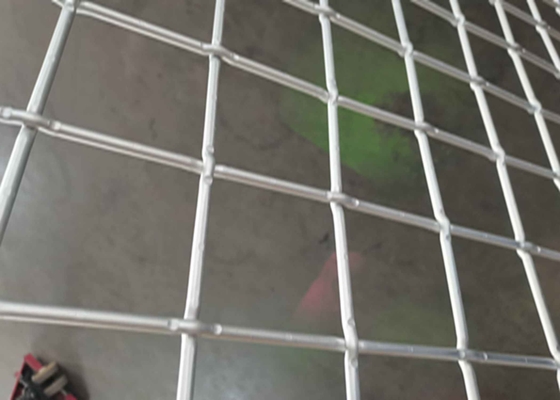

Anti Acid Lock Crimp Wire Mesh 0.157" Opening 0.039" 0.031" Diameter Wire 0



Packing:



in waterproof paper and film, then in pallets. Custom packing available at request.

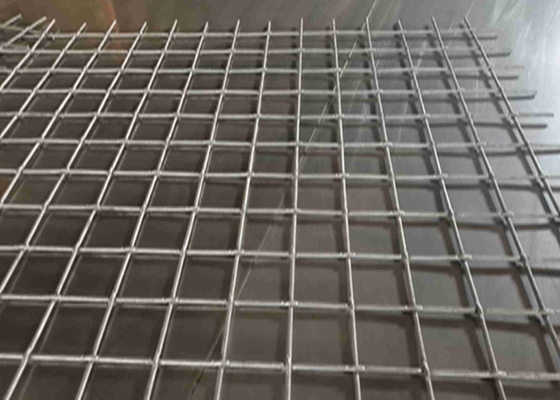

Anti Acid Lock Crimp Wire Mesh 0.157" Opening 0.039" 0.031" Diameter Wire 1
