L605 / Haynes 25 Woven Wire Cloth Nonmagnetic Cobalt Nickel Chromium Tungsten Alloy

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xFeatures | High Melting Point And Stable Chemical Ability | Product Name | L605/ Haynes 25 Wire Cloth |
---|---|---|---|
Material | L605/ Haynes 25 Wire | Hole Shapes | Square |
Woven Type | Plain Weave, Twill Weave | Mesh Counts | 12 To 200 |
Wire | 0.05 To 0.28mm | Common Width | 0.1m - 1.5m. |
Common Length | 30m Or As Request | Usage | L605 Wire Cloth Is Made Into Filter Disc And Heating Element In Gas Turbine Engine Components, Artificial Heart Valve, Metal Materials Filter Equipment. |
Highlight | l605 woven wire cloth,square hole woven wire cloth,haynes 25 woven wire mesh |

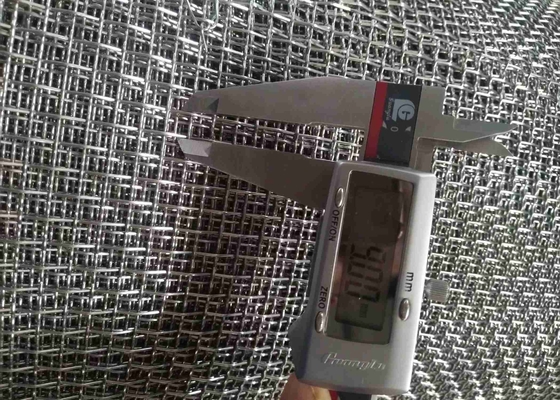

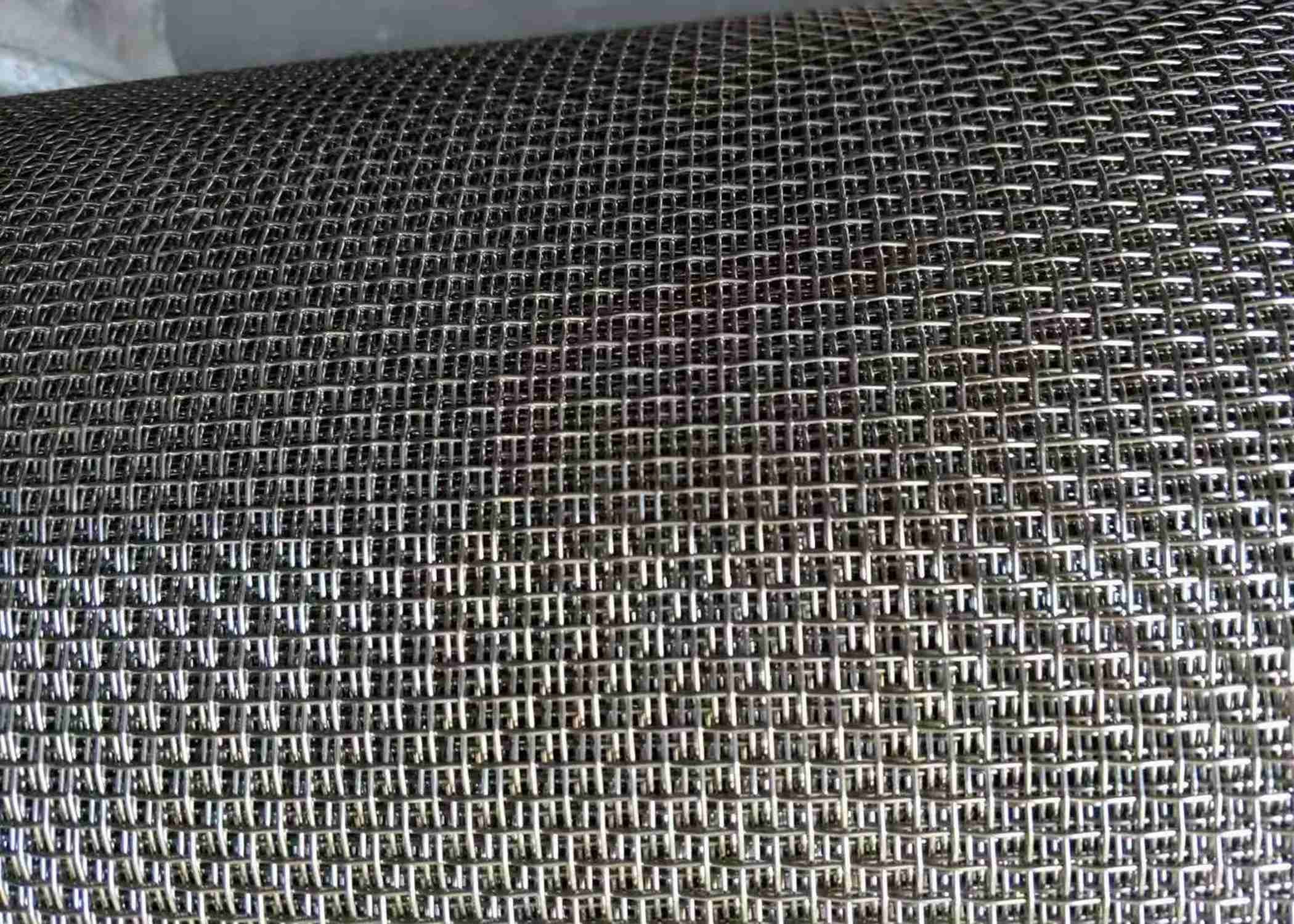

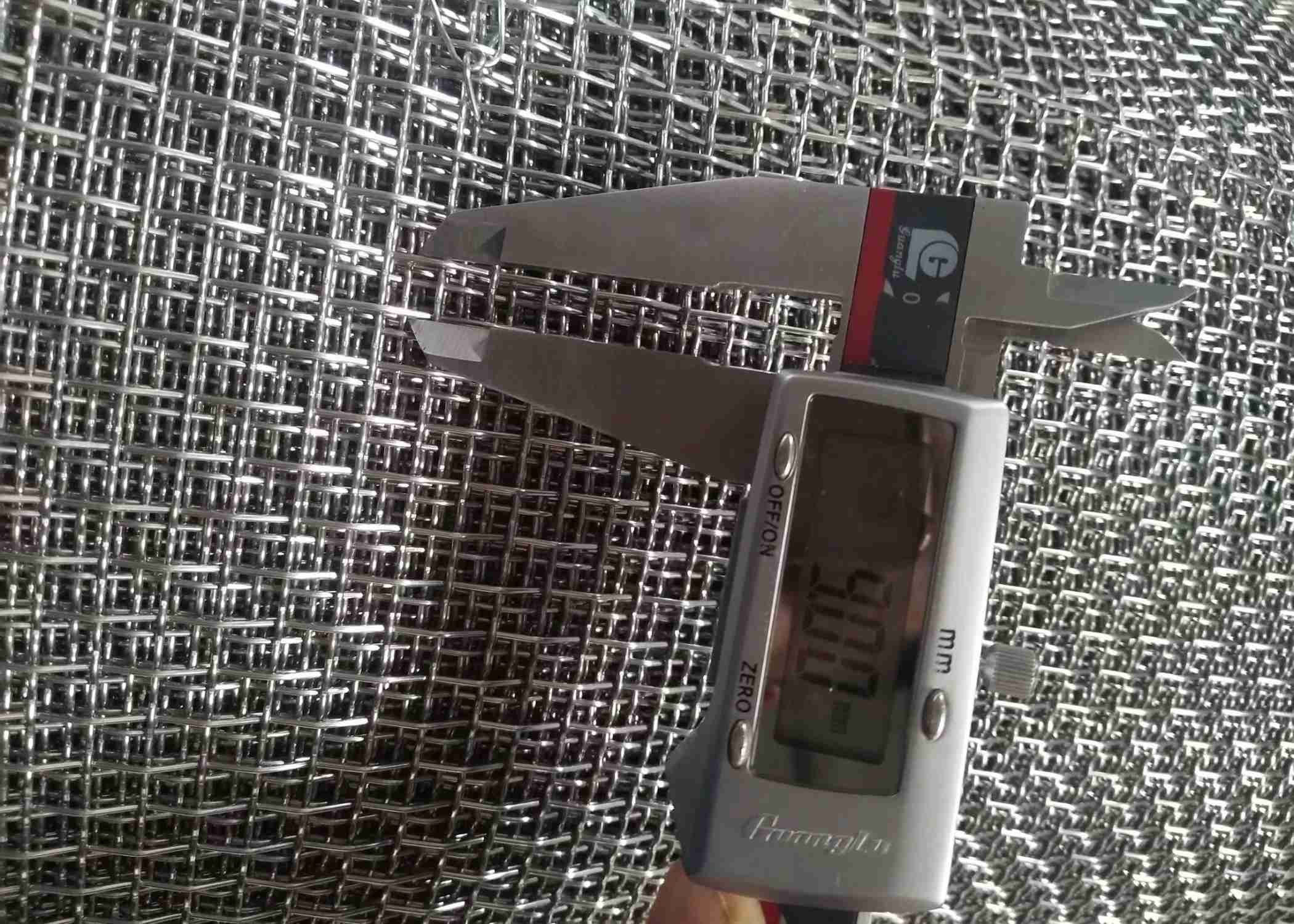

L605/ Haynes 25 Wire Cloth Nonmagnetic Cobalt-Nickel-Chromium-Tungsten Alloy
L605/ Haynes 25 Wire Cloth Woven Wire Mesh Introduction:
L605 wire cloth, also called Haynes 25 wire cloth, is a type of mesh cloth made of L605 alloy wires. The L605 wire cloth has good ductility, good oxidation and corrosion resistance as well as properties at elevated temperatures.
Haynes 25/L605 is a nonmagnetic, Cobalt-Nickel-Chromium-Tungsten alloy that combines good high temperature strength with good resistance to oxidizing environment at high temperature up to 980 °C (1795 °F) for long exposures. It has excellent resistance to sulphidation.
Features:
Good mechanical properties at elevated temperatures.
Oxidation resistance.
Sulphidation resistance.
Good corrosion and abrasion resistance.
Applications:
L605 wire cloth is made into filter disc and heating element in gas turbine engine components, artificial heart valve, metal materials filter equipment.
Materials:
Table 1: Chemical Compositions of L605 Wire Cloth (%) | ||||||||
Element | C | Co | Cr | Fe | Mn | Ni | Si | W |
Content | 0.05–0.15 | Rem. | 19–21 | 3 | 1.0–2.0 | 9.0–11.0 | 0.4 | 14.0–16.0 |
Specifications
Specifications of L605 Wire Cloth | |||||
Mesh Size | Wire Diameter | Width of Opening | Open area | ||
Wire/inch | inch | mm | inch | mm | % |
12 × 12 | 0.011 | 0.2794 | 0.0723 | 1.8364 | 75.3 |
18 × 18 | 0.017 | 0.4318 | 0.039 | 0.9906 | 48.3 |
20 × 20 | 0.005 | 0.127 | 0.045 | 1.143 | 81 |
20 × 20 | 0.013 | 0.3302 | 0.037 | 0.9398 | 54.8 |
20 × 20 | 0.016 | 0.4064 | 0.034 | 0.8636 | 46.2 |
26 × 26 | 0.013 | 0.3302 | 0.026 | 0.6604 | 44 |
30 × 30 | 0.01 | 0.254 | 0.023 | 0.5842 | 48.9 |
30 × 30 | 0.011 | 0.2794 | 0.022 | 0.5588 | 44.8 |
30 × 30 | 0.0125 | 0.3175 | 0.0208 | 0.5283 | 39.1 |
30 × 30 | 0.013 | 0.3302 | 0.02 | 0.508 | 37.1 |
35 × 35 | 0.013 | 0.3302 | 0.016 | 0.4064 | 29.8 |
40 × 40 | 0.007 | 0.1778 | 0.018 | 0.4572 | 51.8 |
40 × 40 | 0.009 | 0.2286 | 0.016 | 0.4064 | 41 |
40 × 40 | 0.01 | 0.254 | 0.015 | 0.381 | 36 |
46 × 46 | 0.0035 | 0.0889 | 0.0182 | 0.4623 | 70.39 |
50 × 50 | 0.003 | 0.0762 | 0.017 | 0.4318 | 72.3 |
50 × 50 | 0.009 | 0.2286 | 0.11 | 2.794 | 30.3 |
60 × 60 | 0.0055 | 0.1397 | 0.0112 | 0.2845 | 44.9 |
60 × 60 | 0.007 | 0.1778 | 0.01 | 0.254 | 33.9 |
80 × 70 | 0.005 | 0.127 | 0 | 0 | 39 |
80 × 80 | 0.0055 | 0.1397 | 0.007 | 0.1778 | 31.4 |
100 × 100 | 0.0025 | 0.0635 | N/A | N/A | N/A |
200 × 200 | 0.002 | 0.0508 | 0.003 | 0.0762 | 36 |
Other specifications according to your request.
