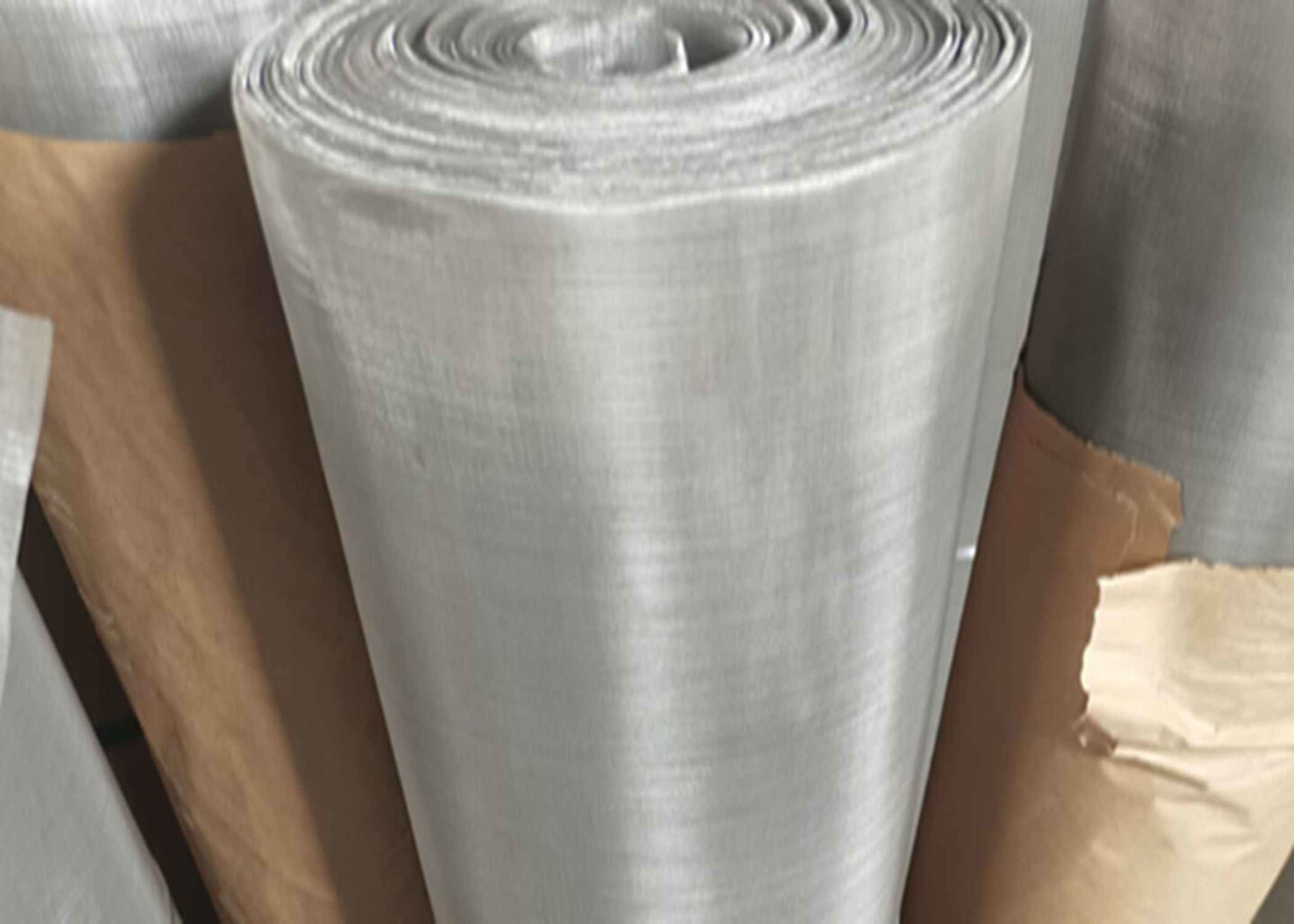

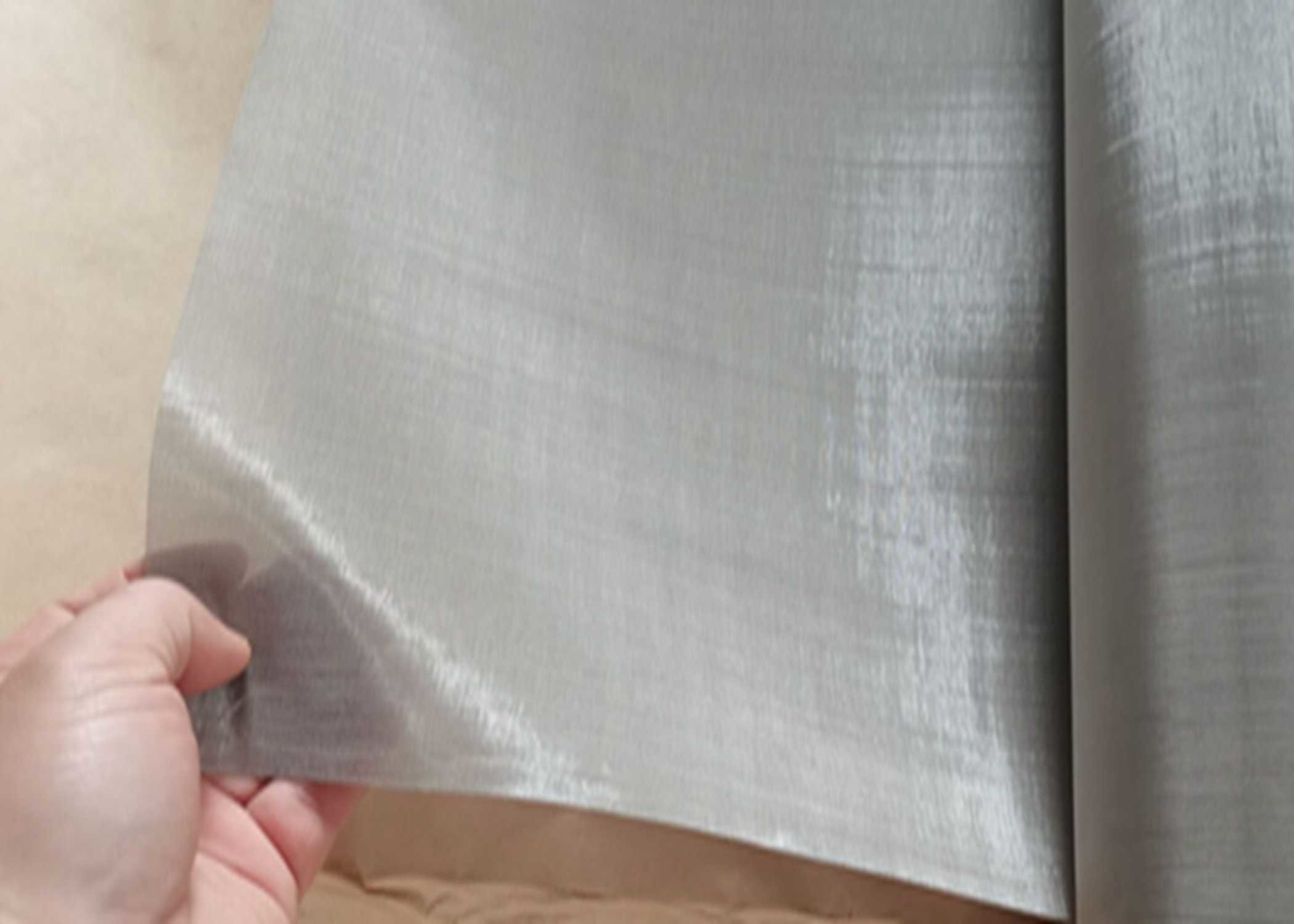

Tantalum Metal Woven Wire Mesh 325 X 2300 To Water Treatment Industry

  • Tantalum Metal Woven Wire Mesh 325 X 2300 To Water Treatment Industry
  • Tantalum Metal Woven Wire Mesh 325 X 2300 To Water Treatment Industry
  • Tantalum Metal Woven Wire Mesh 325 X 2300 To Water Treatment Industry
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 2Rolls
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
Delivery Time 2weeks
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Tantalum Woven Wire Mesh Material Tantalum
Hole Shapes Square Woven Type Plain Weave, Twill Weave
Mesh Counts 325 X 2300 Wire 0.003 X 0.0025mm
Common Width 0.1m - 1.5m. Common Length 30m Or As Request
Application High Melting Point And Stable Chemical Ability Usage Water Treatment Industry
Highlight

tantalum metal woven wire mesh

,

325 x 2300 metal woven wire mesh

,

water treatment industry woven wire mesh
Leave a Message
Product Description

Tantalum Woven Wire Mesh With Extremely High Melting Point And Stable Chemical Ability



Tantalum Woven Wire Mesh Introduction:



Tantalum woven wire mesh, also called tantalum mesh, tantalum screen, is a rare metal mesh, which is made of tantalum. The tantalum woven wire cloth has extremely high melting point of 2996 °C. Its high corrosion resistance performance, similar to glass, will not be affected in the normal room temperature. Only fluoride, hydrofluoric acid, sulfur trioxide (including fuming sulfuric acid), alkali and some molten salt will effect on tantalum in the middle temperature (about 150 °C) condition.



Features:



High melting point. It can be up to 2996 °C / 5425 °F.
Strong corrosion resistance and excellent chemical stability. Stable in any element below 150 °C temperature.
Good ductility and toughness
Excellent filtering performance. plain, twill and dutch weave in various wire diameters and meshes can satisfy different filtering fineness and using conditions.



Applications:



The tantalum woven wire mesh is widely used as:

Chemical liquid filter
Gas-liquid filter
Heater support mesh
Electronic instrument electrode
Electric vacuum components
Sieving screens


The tantalum woven wire mesh is widely used in the following industries:

Electric vacuum industry.
Heat treatment industry
Chemical industry
Medical industry
Water treatment industry.

Materials:

Table 1: Tantalum Chemical Composition (%)
Element C Cb Fe H Mo N Ni O Si Ta Ti W
Content 0.01 0.05 0.01 0.001 0.01 0.01 0.01 0.015 0.005 Rem. 0.01 0.03

Specifications:

Plain & Twill Weave Tantalum Woven Wire Mesh/Cloth
mesh Wire Diameter Weaving Type Mesh Opening Open Area
inch mm inch mm
8 × 8 0.02 0.508 Plain 0.105 2.667 70.6
14 × 14 0.016 0.4064 Plain 0.0554 1.4072 60.2
30 × 30 0.003 0.0762 Plain 0.0303 0.7696 82.8
35 × 35 0.0078 0.1981 Twill 0.0208 0.5283 52.9
50 × 50 0.003 0.0762 Plain 0.017 0.4318 72.3
80 × 80 0.003 0.0762 Plain 0.0095 0.2413 57.8
100 × 100 0.003 0.0762 Twill 0.007 0.1778 49
8 × 8 0.028 0.71 Plain 0.097 2.465 60.2
10 × 10 0.0252 0.64 Plain 0.0748 1.9 55.9
12 × 12 0.0228 0.58 Plain 0.0605 1.537 58.9
14 × 14 0.0165 0.42 Plain 0.0547 1.39 59
16 × 16 0.015 0.38 Plain 0.0476 1.21 57.9
18 × 18 0.0157 0.4 Plain 0.0398 1.01 51.3
20 × 20 0.0157 0.4 Plain 0.0343 0.87 46.9
24 × 24 0.0106 0.27 Plain 0.031 0.788 55.4
28 × 28 0.0091 0.23 Plain 0.0267 0.677 55.7
30 × 30 0.011 0.28 Plain 0.0223 0.567 44.8
35 × 35 0.013 0.33 Plain 0.0156 0.396 29.7
40 × 40 0.0098 0.25 Plain 0.0152 0.385 36.7
50 × 50 0.0063 0.16 Plain 0.015 0.381 36
60 × 60 0.0063 0.16 Plain 0.0104 0.263 39
80 × 80 0.0047 0.12 Plain 0.0078 0.198 39
100 × 100 0.0039 0.1 Plain 0.0061 0.154 37
120 × 120 0.0031 0.08 Plain 0.0052 0.132 38.7
150 × 150 0.0024 0.06 Plain 0.0043 0.109 41.5
200 × 200 0.002 0.05 Plain 0.003 0.077 36.7
300 × 300 0.0014 0.035 Plain 0.0019 0.049 34.4



Dutch Weave of Tantalum Woven Wire Mesh
Mesh Size (wire/inch) Wire Diameter
Inch mm
12 × 64 0.0228/0.0157 0.580/0.400
24 × 110 0.0142/0.0098 0.360/0.250
14 × 88 0.0197/0.0130 0.500/0.330
14 × 110 0.0157/0.0106 0.400/0.270
30 × 150 0.0071/0.0055 0.180/0.140
40 × 200 0.0055/0.0043 0.140/0.110
50 × 250 0.0039/0.0028 0.100/0.071
80 × 700 0.0024/0.0020 0.060/0.050
165 × 800 0.0028/0.0016 0.071/0.040
165 × 1400 0.0020/0.0013 0.050/0.032
200 × 1800 0.0020/0.0012 0.050/0.030
325 × 2300 0.0012/0.0010 0.030/0.025

Other specifications according to your request.
