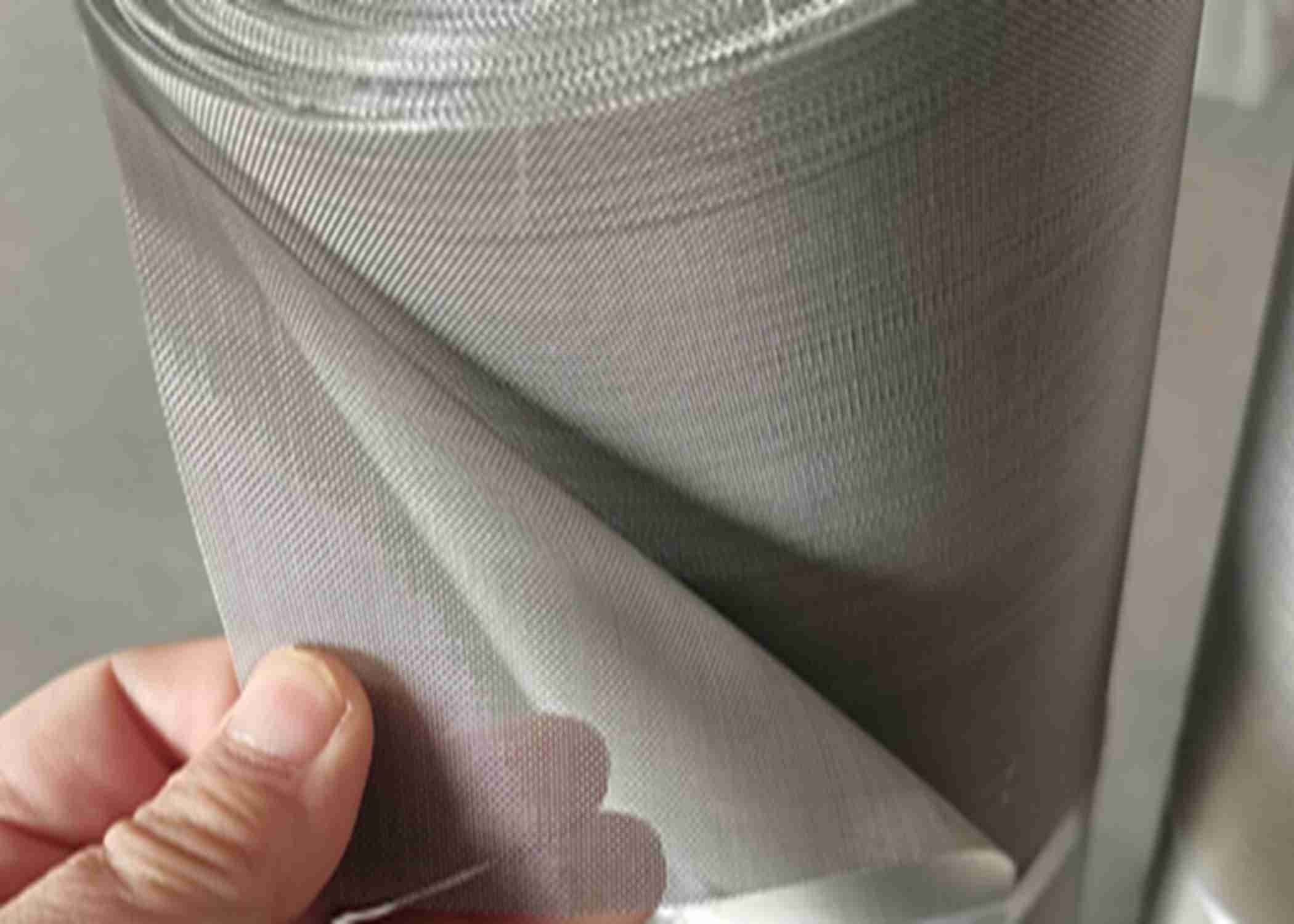

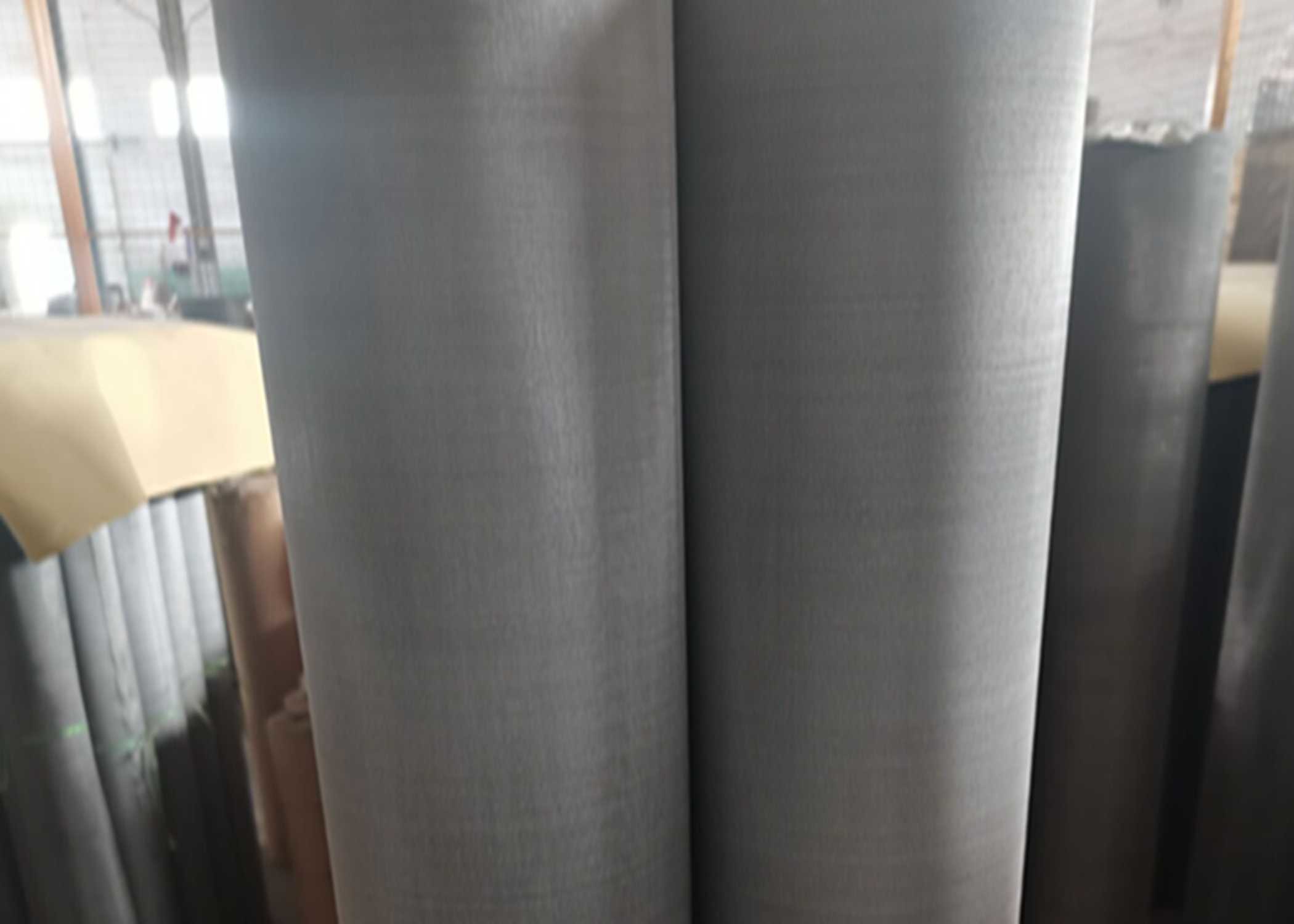

Nichrome Woven Metal Mesh 4 To 325 Mesh For Chemical And Shipbuilding

  • Nichrome Woven Metal Mesh 4 To 325 Mesh For Chemical And Shipbuilding
  • Nichrome Woven Metal Mesh 4 To 325 Mesh For Chemical And Shipbuilding
  • Nichrome Woven Metal Mesh 4 To 325 Mesh For Chemical And Shipbuilding
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 2Rolls
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
Delivery Time 2weeks
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Nichrome Woven Wire Mesh Material Nichrome
Hole Shapes Square Woven Type Plain Weave, Twill Weave
Mesh Counts 4 To 325 Wire 0.0014" - 0.063".
Common Width 0.1m - 1.5m. Common Length 30m Or As Request
Application Oxidation Resistance Usage Chemical And Shipbuilding
High Light

nichrome woven metal mesh

,

chemical woven metal mesh

,

shipbuilding woven wire mesh
Leave a Message
Product Description

Nichrome Woven Wire Mesh 4 to 325 mesh Used for Chemical and Shipbuilding



Nichrome Woven Wire Mesh Introduction:



Nichrome is the alloy of nickel and chrome. According to different chemical composition, nichrome can be divided into Cr20Ni80, Cr15Ni60 and Cr20Ni35.

Nichrome woven wire mesh is made of the nichrome wire, which is woven into regular meshes. Nichrome woven wire mesh has outstanding ductility, high tensile strength, oxidation resistance, sulfur resistance and other features.

Equipped with so many features, nichrome woven wire mesh has a wide range of applications, including the aerospace, shipbuilding, military industry, chemical and other fields.



Features:



Good ductility.
High tensile strength.
Oxidation resistance.
Sulfur resistance.
Permeability resistance.
Superior elongation.
Non-magnetic.



Applications:



Nichrome woven wire mesh is widely used in the aerospace, shipbuilding, war industry, chemical machinery, electric power, desalination, medical apparatus and instruments.



Materials:



Chemical composition
Grade
 % Ni Cr Fe Al Mn Si C P S
Cr20Ni80 Min. Bal. 20 - - 0.6 0.75 0.08 0.02 0.08
Max. 23 1 0.2 1.6
Cr15Ni60 Min. 55 15 Bal. - - 0.75 0.08 0.02 0.15
Max. 61 18 0.5 0.6 1.6
Cr20Ni35 Min. 34 18 Bal. - 1 1 0.1 0.03 0.025
Max. 37 21 0.5 3

Specifications:

Material: Cr20Ni80, Cr15Ni60 and Cr20Ni35.
Weaving type: plain weave and twill weave.
Wire diameter: 0.0014" - 0.063".
Mesh size: 4 mesh - 325 mesh.
Width: 0.1m - 1.5m.
Length: commonly is 30m. Other specs can be customized.



Mesh (Wires/ in.) Wire diameter (in.) Width of opening (in.) Open area (%)
4 × 4 0.063 0.187 56
8 × 8 0.047 0.078 38.9
8 × 8 0.025 0.1 64
10 × 10 0.035 0.065 42.3
16 × 16 0.02 0.043 46.2
20 × 20 0.02 0.03 36
20 × 20 0.013 0.037 54.8
20 × 20 0.016 0.034 43.2
26 × 26 0.013 0.026 44
40 × 40 0.01 0.015 36
40 × 40 0.007 0.018 51.8
80 × 80 0.0055 0.007 31.4
200 × 200 0.0021 0.0029 33.6
325 × 325 0.0014 0.0017 29.7



Other specifications according to your request.
