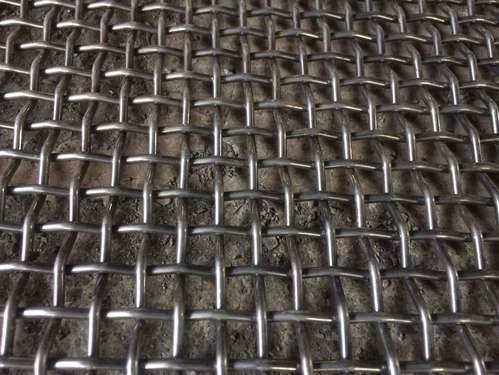

Nickel Metal Woven Wire Mesh 8 To 20 Mesh Twill Weave

  • Nickel Metal Woven Wire Mesh 8 To 20 Mesh Twill Weave
  • Nickel Metal Woven Wire Mesh 8 To 20 Mesh Twill Weave
  • Nickel Metal Woven Wire Mesh 8 To 20 Mesh Twill Weave
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 2Rolls
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
Delivery Time 2weeks
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Pure Nickel Plain Weave Wire Mesh Material Pure Nickel Wire
Hole Shapes Square Woven Type Plain Weave, Twill Weave
Mesh Counts 80 To 200 Wire 0.04mm To 0.15mm
Common Width 48", 36"; 1.0m, 1.2m, 1.5m Common Length 100ft; 30m
Standard ASTM Application Chemical Processing
Highlight

nickel metal woven wire mesh

,

20 mesh metal woven wire mesh

,

8 mesh woven wire mesh
Leave a Message
Product Description

Nickel Woven Wire Mesh 8 To 20 Mesh With Good Thermal Conductivity And Ductility



Nickel Woven Wire Mesh Introduction:



The nickel is a sliver-white metal. According to the purity, the nickel has different material types, such as the N2, N4, N6 and N8. Nickel woven wire mesh is manufactured from nickel wire with high purity not less than 99%. The nickel wire is woven through plain weave and twill weave production to form the continuous and regular meshes.



Nickel woven wire mesh or low-alloy nickel woven wire mesh is useful in chemical processing because of its resistance to various chemicals including acid, alkali. It is also useful in the electronics due to its high electrical conductivity. The Nickel wire can be also used in the heat exchange due to its thermal conductivity and ductility.



Material:



Chemical composition of main type of nickel table 1
Type C % Cu % Fe % Mn % Ni % S % Si % Co % Cr % Mg % Ti %
Nickel 200 0.015 0.25 0.4 0.35 99 0.01 0.35 - - - -
Nickel 205 0.02 0.001 0.005 0.001 99.97 0.001 0.001 0.001 0.001 0.001 0.001
Nickel 270 0.15 0.15 0.2 0.35 99 0.008 0.15 - 0.01-0.05 0.01-0.08 -





Chemical composition of main type of nickel table 2
Type Ni + Co Cu Si Mn C Mg S Fe Impurity Sum
Min. Max.
N2 99.98 0.001 0.003 0.002 0.005 0.003 0.001 0.007 0.02
N4 99.9 0.015 0.03 0.002 0.01 0.01 0.001 0.04 0.1
N6 99.5 0.03 0.1 0.05 0.1 0.1 0.005 0.1 0.5
N8 99 0.15 0.15 0.2 0.2 0.1 0.015 0.3 1

Features:



Chemical resistance, acid and alkali resistance.
High electrical conductivity.
Thermal conductivity and ductility.
Corrosion resistance.
Heat resistance.
Wear resistance.



Applications:



The nickel woven wire mesh is widely used as the filtration materials in the mining, oil, chemical, food, pharmaceutical, machine and other fields.
The nickel woven wire mesh has high electrical conductivity, so it can be used in the electronics.
The nickel woven wire mesh can be used for battery production.



Specifications:

Material: nickel 200, nickel 205, nickel 270, N2, N4, N6, N8.
Weaving type: plain weave, twill weave and dutch weave.
Wire diameter: 0.0018" - 0.0280".
Mesh size: 8 mesh - 200 mesh.
Width: 36", 48".
Length: customized.



Mesh/Inch Wire Diameter Aperture Open Area Weight
mm mm % Kgs/㎡
20 0.5 0.770 36.75 2.83
20 0.45 0.820 41.68 2.29
20 0.40 0.870 46.92 1.81
20 0.35 0.920 52.47 1.38
20 0.30 0.970 58.33 1.02
20 0.27 1.000 62.00 0.82
20 0.25 1.020 64.50 0.70
20 0.23 1.040 67.05 0.59
20 0.21 1.060 69.66 0.50
20 0.19 1.080 72.31 0.41
20 0.17 1.100 75.02 0.32
20 0.15 1.120 77.77 0.25
22 0.40 0.754 42.71 2.00
22 0.35 0.804 48.56 1.52
22 0.30 0.854 54.78 1.12
22 0.27 0.884 58.69 0.91
22 0.25 0.904 61.38 0.77
22 0.23 0.924 64.12 0.66
22 0.21 0.944 66.93 0.54
22 0.19 0.964 69.79 0.44
22 0.17 0.984 72.71 0.35
22 0.15 1.004 75.70 0.27
24 0.35 0.708 44.79 1.67
24 0.30 0.758 51.34 1.22
24 0.27 0.788 55.48 0.99
24 0.25 0.808 58.33 0.85
24 0.23 0.828 61.25 0.71
24 0.21 0.848 64.25 0.59
24 0.19 0.868 67.31 0.49
24 0.17 0.888 70.45 0.39
24 0.15 0.908 73.66 0.31
24 0.13 0.928 76.94 0.23
24 0.12 0.938 78.60 0.19
30 0.35 0.496 34.41 2.07
30 0.30 0.546 41.68 1.53
30 0.27 0.576 46.39 1.24
30 0.25 0.596 49.66 1.05
30 0.23 0.616 53.04 0.90
30 0.21 0.636 56.54 0.75
30 0.19 0.656 60.15 0.61
30 0.17 0.676 63.87 0.49
30 0.15 0.696 67.70 0.37
30 0.13 0.716 71.64 0.28
30 0.12 0.716 73.66 0.24
40 0.30 0.335 27.83 2.04
40 0.27 0.365 33.03 1.64
40 0.25 0.385 36.75 1.42
40 0.23 0.405 40.67 1.19
40 0.21 0.425 44.79 1.00
40 0.19 0.445 49.11 0.82
40 0.17 0.465 53.62 0.65
40 0.15 0.485 58.33 0.51
40 0.13 0.505 63.24 0.37
40 0.12 0.515 65.77 0.32
50 0.25 0.258 25.79 1.77
50 0.23 0.278 29.94 1.50
50 0.21 0.298 34.41 1.25
50 0.19 0.318 39.18 1.02
50 0.18 0.328 41.68 0.92
50 0.17 0.338 44.26 0.82
50 0.15 0.358 49.66 0.63
50 0.13 0.379 55.36 0.48
50 0.12 0.388 58.33 0.41
60 0.23 0.193 20.85 1.79
60 0.21 0.213 25.39 1.50
60 0.19 0.233 30.38 1.22
60 0.17 0.253 35.81 0.98
60 0.15 0.273 41.68 0.76
60 0.13 0.293 48.01 0.57
60 0.12 0.303 51.34 0.49
80 0.13 0.187 34.87 0.76
80 0.12 0.197 38.69 0.65
80 0.10 0.217 46.92 0.45
80 0.09 0.227 51.34 0.36



Mesh/Inch Wire Diameter Aperture Open Area Weight
mm mm % Kgs/㎡
80 0.13 0.187 34.87 0.76
80 0.12 0.197 38.69 0.65
80 0.10 0.217 46.92 0.45
80 0.09 0.227 51.34 0.36
100 0.10 0.154 36.75 0.57
100 0.08 0.174 46.92 0.36
120 0.09 0.121 33.03 0.54
120 0.08 0.131 38.69 0.43
120 0.07 0.141 44.79 0.33
120 0.06 0.151 51.34 0.24
120 0.05 0.161 58.33 0.17
150 0.06 0.109 41.68 0.31
150 0.065 0.104 37.96 0.35
165 0.063 0.090 34.89 0.36
165 0.06 0.093 37.23 0.33
165 0.05 0.103 45.58 0.23
180 0.05 0.091 41.68 0.25
200 0.05 0.077 36.75 0.28
200 0.04 0.087 46.93 0.18



Other specifications according to your request.



Pure Nickel Plain Weave Wire Mesh, 80mesh to 200mesh With 0.04-0.15mm Wire

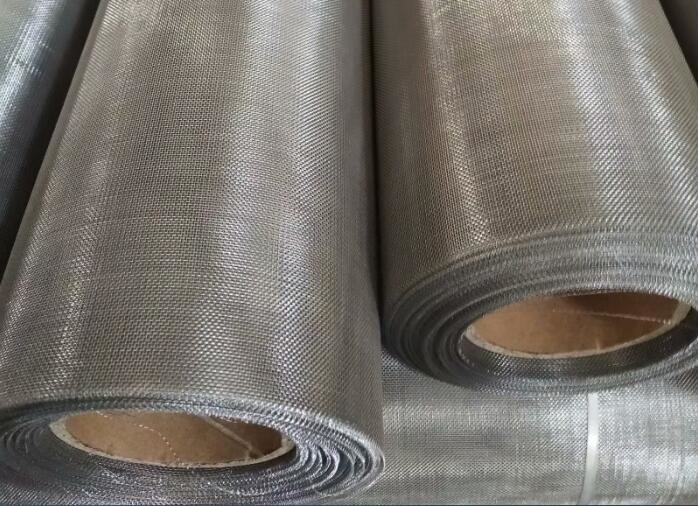

Packing:



Pure Nickel Plain Weave Wire Mesh, 80mesh to 200mesh With 0.04-0.15mm Wire
