Monel 400 And Monel K500 Weave Wire Mesh Alkali And Acid Resistance
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Monel Woven Wire Mesh | Material | Monel 400 And Monel K500. |
|---|---|---|---|
| Standard | ASTM | Composed | Primarily Of Copper And Nickel |
| Wire Diameter | 0.0021" - 0.028". | Hole Shapes | Square |
| Mesh Counts | 8 To 200 Per Inch | Weave Type | Plain Weave And Twill Weave. |
| Feature | Excellent Hardness. | Applicatioin | Widely Used In The Marine Industries, Such As The Piping System And Strainer Baskets. |
| Highlight | monel 400 weave wire mesh,acid resistance weave wire mesh,monel k500 woven wire mesh |
||
Product Description

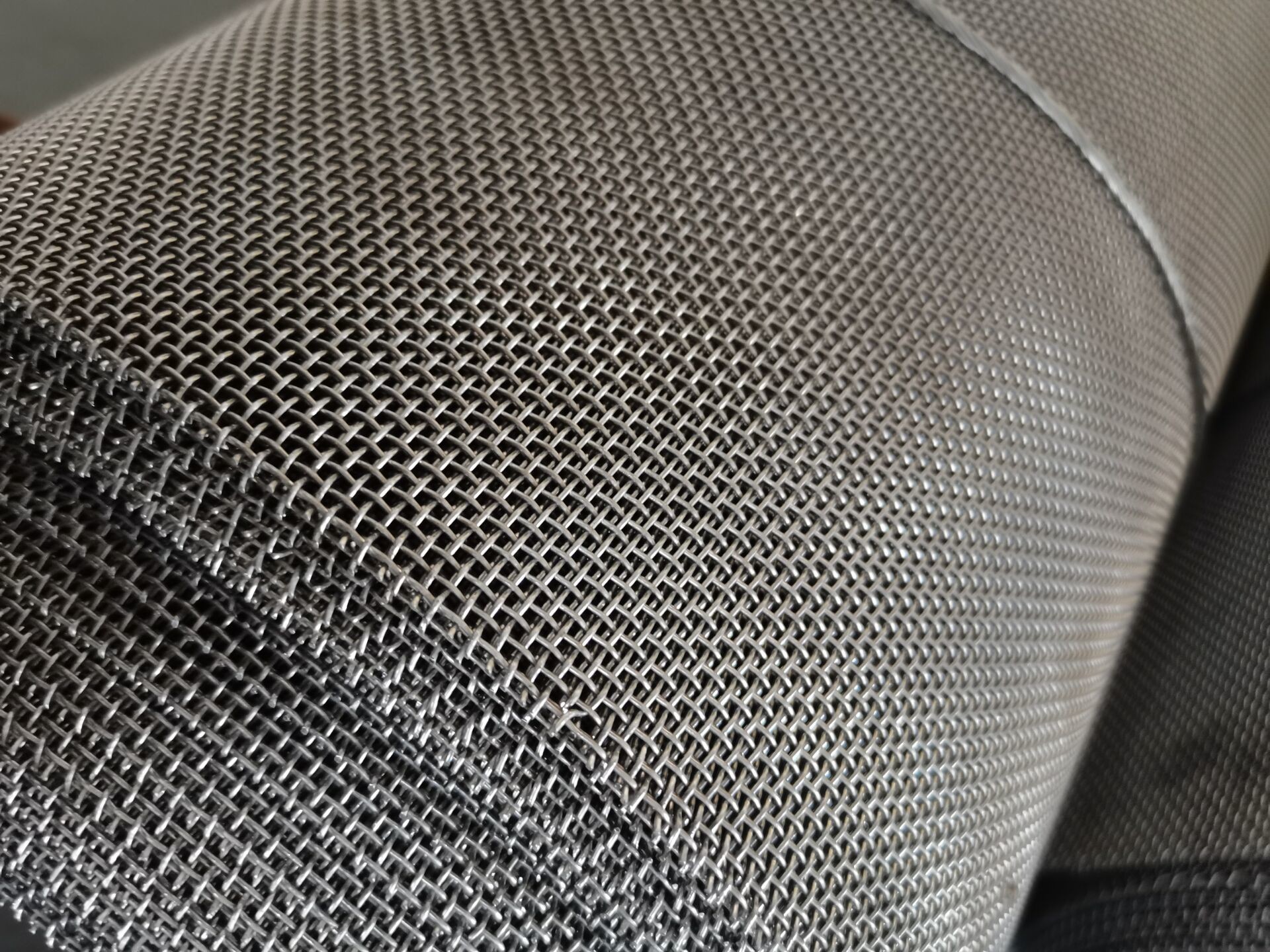

Monel Woven Wire Mesh Monel 400 And Monel K500 Alkali And Acid Resistance
Monel wire mesh introduction:
Similar to the inconel woven wire mesh, the monel woven wire mesh is also a type of woven wire mesh, which is manufactured from nickel-based alloy material. Monel is the alloy of nickel, copper and other chemical elements. According to different chemical elements, the monel woven wire mesh has Monel alloy 400 and monel alloy K500 materials.
Alloy 400 has outstanding corrosion resistance property in the flowing sea water. It can also resist to stress corrosion cracking. Alloy 400 is the most widely used monel material.
Alloy K500 also has outstanding corrosion resistance property like the Monel alloy 400, but the Monel alloy K500 has been added aluminum, which can let the monel K500 offer greater tensile strength and hardness than the Monel alloy 400.
The monel woven wire mesh includes fine woven wire mesh, which has the mesh size larger than 80 meshes, and coarse woven wire mesh with the meshes no larger than 80 meshes.
Material:
Monel400, Monel401, Monel404, Monel R405, Moenl K500 and Inconel wire. Monel400 alloy wire is the most common material that corrosion resisting in the hydrofluoric acid, muriatic acid, phosphoric acid, organic acid and alkaline medium.
| Monel-400 Chemical Composition(%) | ||||||
| C | Mn | Fe | Cu | Ni | Si | S |
| Max | Max | Max | Min/Max | Min | Max | Max |
| 0.3 | 2 | 2.5 | 28.0-34.0 | 63 | 0.5 | 0.024 |
Weave Pattern: plain weave, twill weave, dutch weave.
The most popular specification:
Material: monel 400 and monel K500.
Weaving type: plain weave and twill weave.
Wire diameter: 0.0021" - 0.028".
Mesh size: 8 mesh to 200 mesh.
| Monel Wire Mesh | ||
| Mesh | Wire Dia. (mm) | Aperture (mm) |
| 2mesh | 1.80 | 10.90 |
| 3mesh | 1.60 | 6.866 |
| 4mesh | 1.20 | 5.15 |
| 5mesh | 0.91 | 4.17 |
| 6mesh | 0.80 | 3.433 |
| 8mesh | 0.60 | 2.575 |
| 10mesh | 0.55 | 1.990 |
| 12mesh | 0.50 | 1.616 |
| 14mesh | 0.45 | 1.362 |
| 16mesh | 0.40 | 1.188 |
| 18mesh | 0.35 | 1.060 |
| 20mesh | 0.30 | 0.970 |
| 26mesh | 0.28 | 0.696 |
| 30mesh | 0.25 | 0.596 |
| 40mesh | 0.21 | 0.425 |
| 50mesh | 0.19 | 0.318 |
| 60mesh | 0.15 | 0.273 |
| 70mesh | 0.14 | 0.223 |
| 80mesh | 0.12 | 0.198 |
| 90mesh | 0.11 | 0.172 |
| 100mesh | 0.10 | 0.154 |
| 120mesh | 0.08 | 0.132 |
| 140mesh | 0.07 | 0.111 |
| 150mesh | 0.065 | 0.104 |
| 160mesh | 0.065 | 0.094 |
| 180mesh | 0.053 | 0.088 |
| 200mesh | 0.053 | 0.074 |
Other specifications according to your requirements.
Features:
Corrosion resistance in the sea water.
Corrosion resistance in the chemical solvent.
Corrosion resistance in the acidoid, such as hydrofluoric acid, phosphoric acid.
Corrosion resistance in the alkaline matter.
Resist to stress corrosion cracking.
High tensile strength.
Excellent hardness.
Long lasting and durable.
Usage:
The monel woven wire mesh has outstanding corrosion resistance features, so it is widely used in the marine industries, such as the piping system and strainer baskets.
The monel woven wire mesh can remain a perfect condition in the chemicals, so it is widely used in the petrochemical industries, like the chemical processing equipment and heat exchanger.

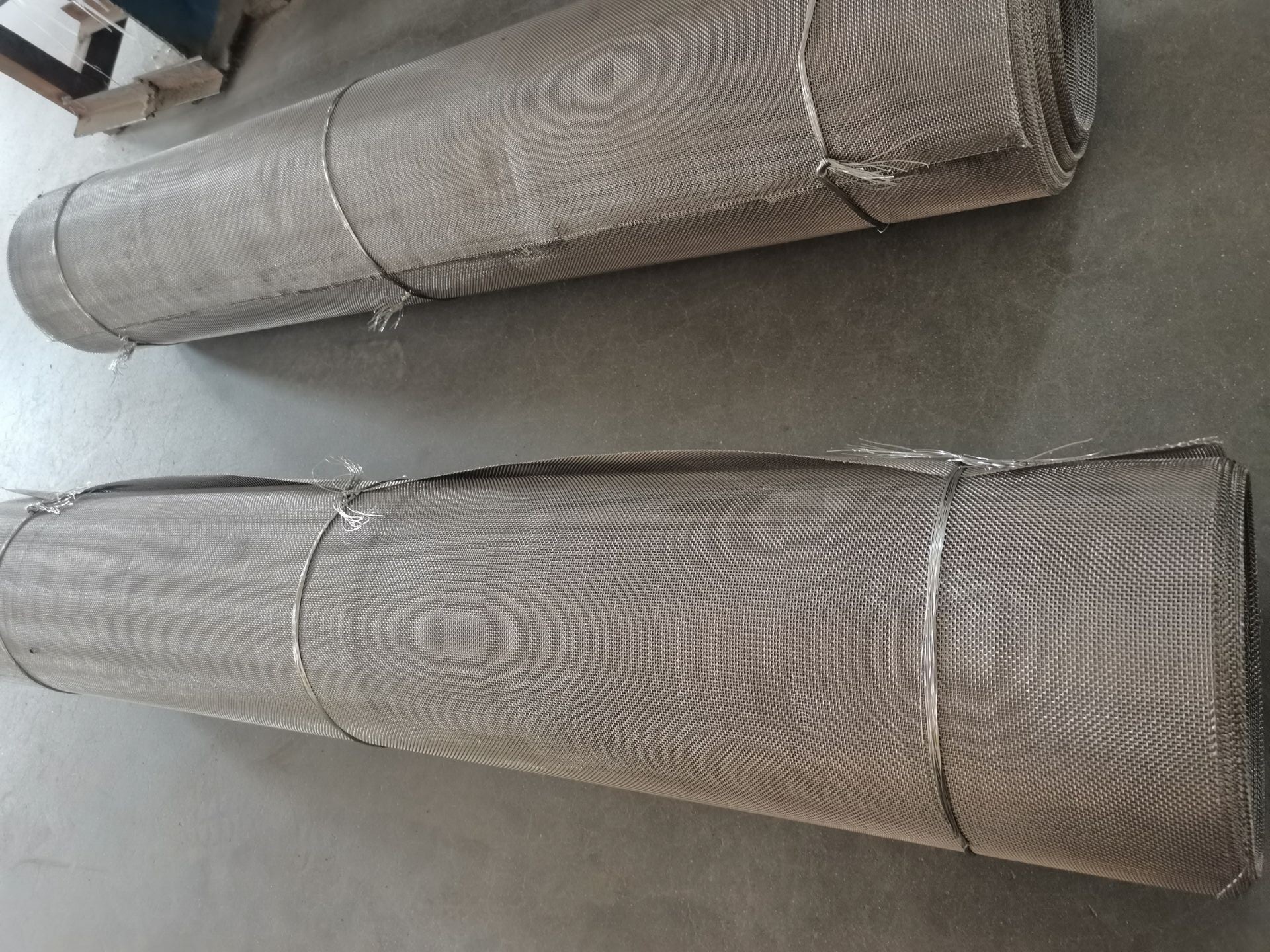

Packing:
Inside with a paper core, outside with a piece of waterproof, the in wooden case.
