Nickel Gas Liquid Filter Knit Mesh With Excellent Filtration Capability

Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 50Rolls
Price Negotiable
Packaging Details Warpped with plastic film, then in wooden case or pallets.
Delivery Time a week
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Strong Corrosion Resistance, Excellent Filtration Capability. Product Name Nickel Knitted Wire Mesh
Standard Q/SG12-1-79 Q/YSZZ-88-91 Type Knitted
Material Nickel Pure, Nicel Alloy Wire Diameter 0.1mm To 0.3mm
Normal Width 25mm To 600mm Roll Width 10mm To 1600mm
Roll Length 10m To 100m Applications Excellent Filtration Capability
High Light

nickel knit mesh

,

gas liquid filter knit mesh

,

excellent filtration capability wire mesh knitted

Leave a Message
Product Description

Nickel Gas-Liquid Filter Mesh Knitted Wire Mesh With Excellent Filtration Capability



Nickel Knitted Wire Mesh Introduction:



Nickel knitted wire mesh is one type of nickel mesh specially designed for gas and liquid filtering and mist eliminating. This is a filter wire mesh material suitable for special working conditions in making of wire mesh demisters, gas and oil treatment, internal-combustion engine filter elements and dust removers. The roll width ranges from 25mm to 600mm. The hole size and filtration rating can be custom made to meet specific requirements.



Nickel Knitted Wire Mesh Specifications:


Nickel Knitted Wire Mesh
Types Model Wire Diameter Mesh Width Mesh Length
standard type 40-100 0.10-0.30mm 10-1600mm 10-100m
60-150 0.10-0.30mm 10-1600mm 10-100m
60-180 0.10-0.30mm 10-1600mm 10-100m
105-300 0.10-0.30mm 10-1600mm 10-100m
140-400 0.10-0.30mm 10-1600mm 10-100m
160-400 0.10-0.30mm 10-1600mm 10-100m
high efficient 60-100 0.10-0.30mm 10-1600mm 10-100m
70-100 0.10-0.30mm 10-1600mm 10-100m
80-100 0.10-0.30mm 10-1600mm 10-100m
80-150 0.10-0.30mm 10-1600mm 10-100m
90-100 0.10-0.30mm 10-1600mm 10-100m
90-150 0.10-0.30mm 10-1600mm 10-100m
150-300 0.10-0.30mm 10-1600mm 10-100m
200-400 0.10-0.30mm 10-1600mm 10-100m
300-600 0.10-0.30mm 10-1600mm 10-100m
high penetrated 20-100 0.10-0.30mm 10-1600mm 10-100m
20-160 0.10-0.30mm 10-1600mm 10-100m
30-150 0.10-0.30mm 10-1600mm 10-100m
70-400 0.10-0.30mm 10-1600mm 10-100m
170-600 0.10-0.30mm 10-1600mm 10-100m
180-700 0.10-0.30mm 10-1600mm 10-100m

Notes:

1. 40-100 model: it has 40 openings in the mesh width of 100mm.

2. Common wire diameter includes 0.20mm, 0.23mm, 0.25mm, 0.28mm.

3. The mesh can be made into single strand, double strand, multi-strand etc.

4. The surface include flattened and crimped.

absorbed type 20-40 0.10-0.20mm 10-120mm 10-100m
30-40 0.10-0.20mm 10-120mm 10-100m
30-50 0.10-0.20mm 10-120mm 10-100m
30-60 0.10-0.20mm 10-120mm 10-100m
30-80 0.10-0.20mm 10-120mm 10-100m
50-120 0.10-0.20mm 10-120mm 10-100m

Notes:

1. 20-40 model: it has 20 openings in the mesh width of 40mm.




Types: standard type, high efficient, high penetrated, absorbed type

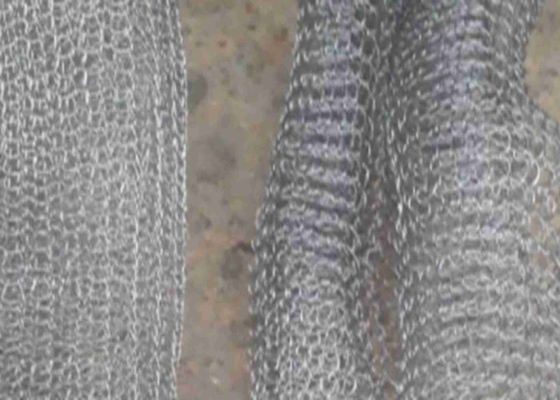

Nickel Gas Liquid Filter Knit Mesh With Excellent Filtration Capability 0

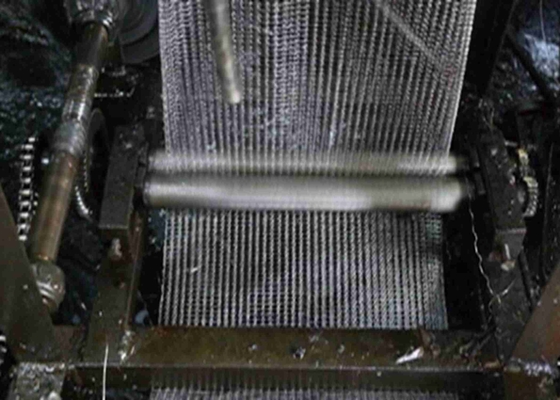

Nickel Gas Liquid Filter Knit Mesh With Excellent Filtration Capability 1

Composition of Nickel Wire Mesh (Pure Nickel):



Pure Nickel Mark Ni+Co Cu Si Mn C Mg S Fe Impurities
  Min. Max.
N2 99.98 0.001 0.003 0.002 0.005 0.003 0.001 0.007 0.02
N4 99.9 0.015 0.03 0.002 0.01 0.01 0.001 0.04 0.1
N6 99.5 0.06 0.1 0.05 0.1 0.1 0.005 0.1 0.5
N8 99 0.15 0.15 0.2 0.2 0.1 0.015 0.3 1
DN 99.35 0.06 .02-.10 0.05 .02-.10 .02-.10 0.005 0.1 0.35
NY1 99.7 0.1 0.1 - 0.02 0.1 0.005 0.1 0.3
NY2 99.4 .01-.10 0.1 - - - .002-.01 0.1 0.6
NY3 99 0.15 0.2 - 0.1 0.1 0.005 0.25 1
NMg0.1 99.6 0.05 0.02 0.05 0.05 .07-.15 0.005 0.07 0.4
NSi0.19 99.4 0.05 .15-.25 0.05 0.1 0.05 0.005 0.07 0.5



Features:



Highly corrosion and alkali resistance;
Good penetration;
Excellent filtration capability.



Applications:

1.Used in the chemical industry to Make wire mesh demisters, catalysts and the elimination or capture of mist droplets and liquid foam entrained in the gas during distillation, evaporation, absorption and other processes;

2.Oil and gas separation, oil-water separation, gas-liquid separation, shock absorption and noise reduction, sealing elements, etc. in the manufacturing process of mechanical equipment;

3.Dust removal, water removal, fog removal, air purification, flue gas desulfurization, water treatment equipment, oil-water separators in the field of environmental protection; separation and filtration devices in various occasions;

4.Filters for cars and tractors;

5.Sealing, damping (shock), noise reduction and exhaust purification components in automotive components;

6.Electromagnetic interference shielding devices for electronic and electrical products are widely used.



Packing:



Standard Type 0.1mm To 0.3mm Wire Long Lifespan Stainless Steel Knitted Wire Mesh 3



Our factory Photos:





Standard Type 0.1mm To 0.3mm Wire Long Lifespan Stainless Steel Knitted Wire Mesh 4
