Flat Top Stainless Steel Crimped Wire Mesh 4mm To 60mm Opening 1.5mm To 5mm

  • Flat Top Stainless Steel Crimped Wire Mesh 4mm To 60mm Opening 1.5mm To 5mm
  • Flat Top Stainless Steel Crimped Wire Mesh 4mm To 60mm Opening 1.5mm To 5mm
  • Flat Top Stainless Steel Crimped Wire Mesh 4mm To 60mm Opening 1.5mm To 5mm
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 50Rolls
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
Delivery Time 20 days
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Firm Structure, Good Strength, Economy Cost Product Name Crimped Wire Mesh
Material Stainless Steel Type Flat Top Crimped
Hole Shape Square Hole, Slot Hole Clear Opening 4mm To 60mm
Wire Diameter 1.5mm To 5mm Length 1m, 2m, 6m, 15m, 30m To 60m.
Width 1m, 1.22m, 1.5m To 4m. Application Architectural & Decorative Industries, For The Screen Of Window, Fence And Ceiling.
Highlight

1mx1m stainless steel crimped wire mesh

,

1.5mm stainless steel crimped wire mesh

,

flat top stainless steel crimped mesh
Leave a Message
Product Description

Flat Top Crimped Wire Mesh stainless steel 4mm to 60mm Opening 1.5mm to 5mm Wire



Flat Top Crimped Wire Mesh



Flat top crimped, also called pressed crimped, is made from round and profiled plain weave wire. All the mesh knuckles is being on the underside. The structure is very heavy and durable. The smooth surface is the characteristic of the weaving method. This structure can allow the materials to move more freely over the screen.



It is widely used in the architectural & decorative industries, for the screen of fence, facade and ceiling; In the agricultural & food industries, for pig raising screens; In the mining & aggregate industries,vibrating machine.



Specifications:



Opening Sizes: from 4mm to 60mm.

Wire Diameters: from 1.5mm to 5.0mm.

Roll Width: 1m, 1.22m, 1.5m to 4m.

Roll Length: 15m, 30m to 60m.

Panel Width: 0.5m, 0.914m, 1m, 1.22m to 2m.
Panel Length: 1m, 1.22m, 1.5m to 6m.

Flat Top Crimp Wire Mesh
Opening Wire Diameter Open Area
mm Inch mm Inch %
4.0 0.157 1.6 0.063 51.02
6.0 0.236 2.0 0.079 56.25
8.0 0.315 2.0 0.079 64.00
10.0 0.394 2.0 0.079 69.44
1.6 0.063 74.32
12.0 0.472 5.0 0.197 49.83
3.0 0.118 64.00
2.0 0.079 73.47
15.0 0.591 2.5 0.098 73.47
2.0 0.079 77.85
16.0 0.630 4.0 0.157 64.00
3.0 0.118 70.91
20.0 0.787 3.0 0.118 75.61
2.5 0.098 79.01
2.0 0.079 82.64
25.0 0.984 4.0 0.157 74.32
3.0 0.118 79.72
30.0 1.181 3.0 0.118 82.64
40.0 1.575 5.0 0.197 79.01
4.0 0.157 82.64
3.0 0.118 86.53
50.0 1.969 5.0 0.197 82.64
4.0 0.157 85.73
3.0 0.118 89.00
60.0 2.362 5.0 0.197 85.21

Other Specifications according to your requirements.



Material:



Standard materials of flat top crimped wire mesh are low/mild/high carbon steel and stainless steel 201, 202, 304, 316, 321, 410, 430.

Besides above following material available:
Copper: brass, pure copper, phosphor bronze
Aluminum: 1050, 1060, 1100, 5052, 5056
Nickel: pure nickel, nickel alloy, monel



Weave Pattern: Flat-top Curved





Features:



Stainless Steel Wire mesh can resist severe circumstances like low/high temperatures, high pressures, acids, alkaline solutions, easily be fabricated with various weaving types in the weaving loom, and also have hygienic characteristics, easily clean ability, can withstand various weather conditions and have a highly aesthetic appeal, highly durable and can withstand severe circumstances over a longer period of time.

Applicatioins:



Fine stainless steel flat top crimped mesh is widely used in processing of oil, chemical, food, making wire mesh filter, also sorting and screening of solid, liquid and gas in mine, metallurgy, airspace, machine making and so on.



Coarse stainless steel mesh can be widely used in sand, rock, coal, gavel, metal material screening, quarry aggregate, mining industries, road construction industries, asphalt mixing plant and so on.

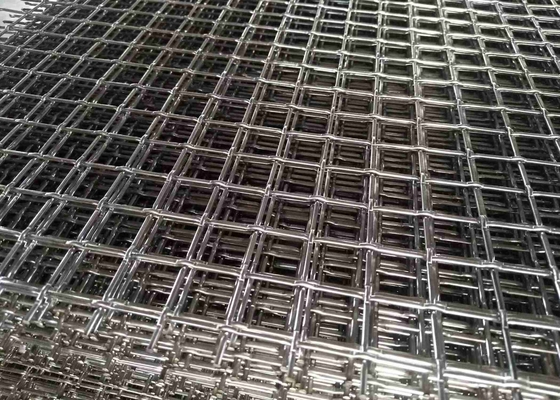

Flat Top Stainless Steel Crimped Wire Mesh 4mm To 60mm Opening 1.5mm To 5mm 0



Packing:



in waterproof paper and film, then in pallets. Custom packing available at request.

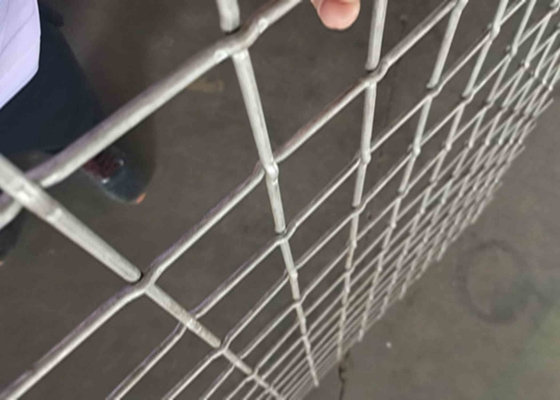

Flat Top Stainless Steel Crimped Wire Mesh 4mm To 60mm Opening 1.5mm To 5mm 1
