Heavy Duty Stainless Steel Crimped Mesh 10mm To 100mm Opening With Firm Structure
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xFeatures | Perfect Strength And Stability | Product Name | Crimped Wire Mesh |
---|---|---|---|
Material | Stainless Steel, Mild Steel, Aluminum | Type | Lock Crimped |
Hole Shape | Square Hole, Slot Hole | Clear Opening | 10mm To 100mm |
Wire Diameter | 1.5mm To 5mm | Length | Up To 4m |
Width | 2.4m, 15m, 30m Etc | Application | Filtering And Screening, Filtering And Screening |
High Light | heavy duty stainless steel crimped mesh,100mm opening stainless steel crimped mesh,firm stainless steel crimped wire mesh |
Pre Crimp Mesh And Heavy Duty Wire Mesh 10mm To 100mm Opening With Firm Structure
Crimped Wire Mesh Introduction:
The Lock Crimp Mesh is produced via the pre-crimp technique. The warp and Shute wires are both crimped at their points of intersection and ensures that there is no wire movement in the mesh. This makes the lock crimp wire cloth a very hearty stainless steel screen mesh.

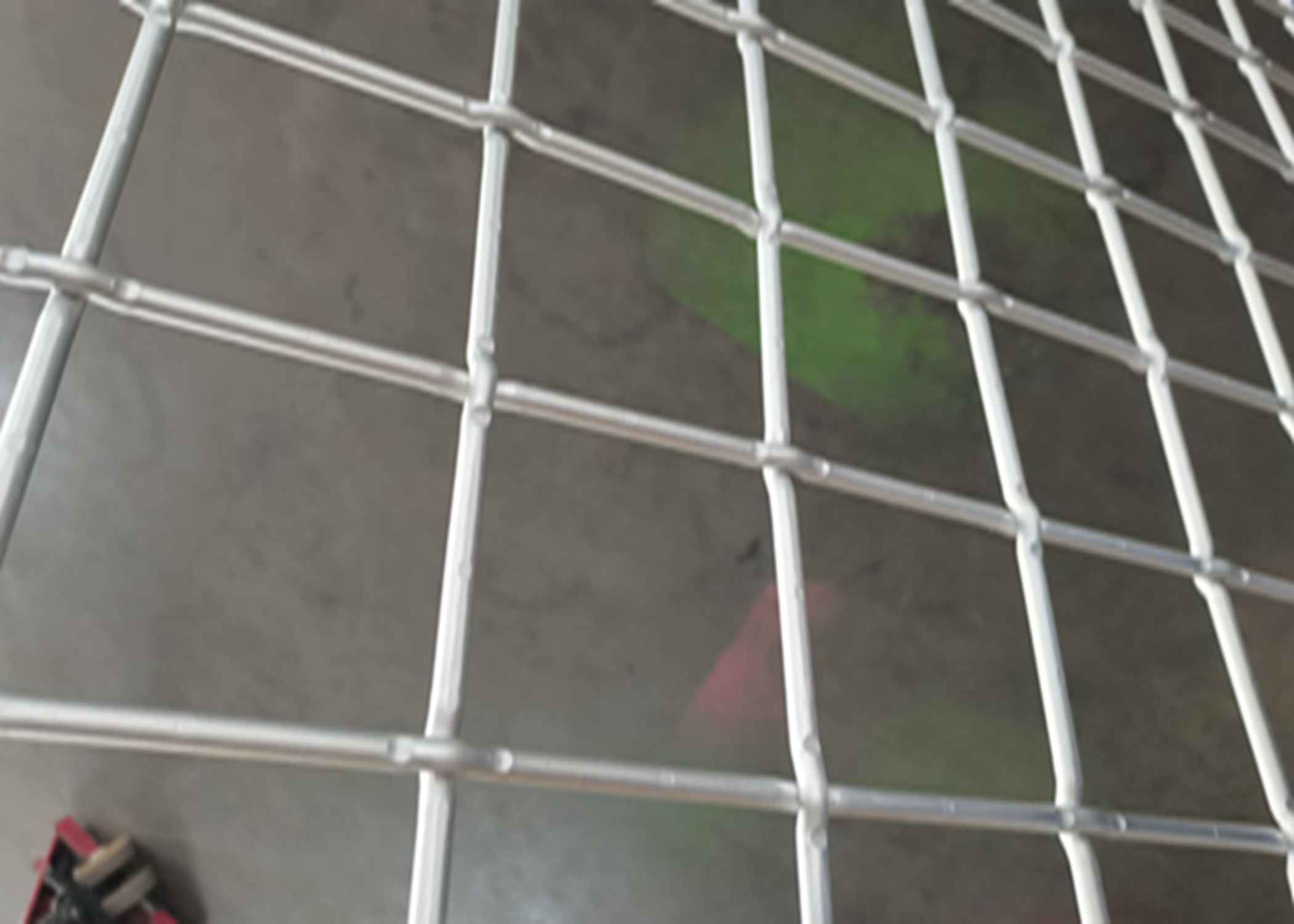

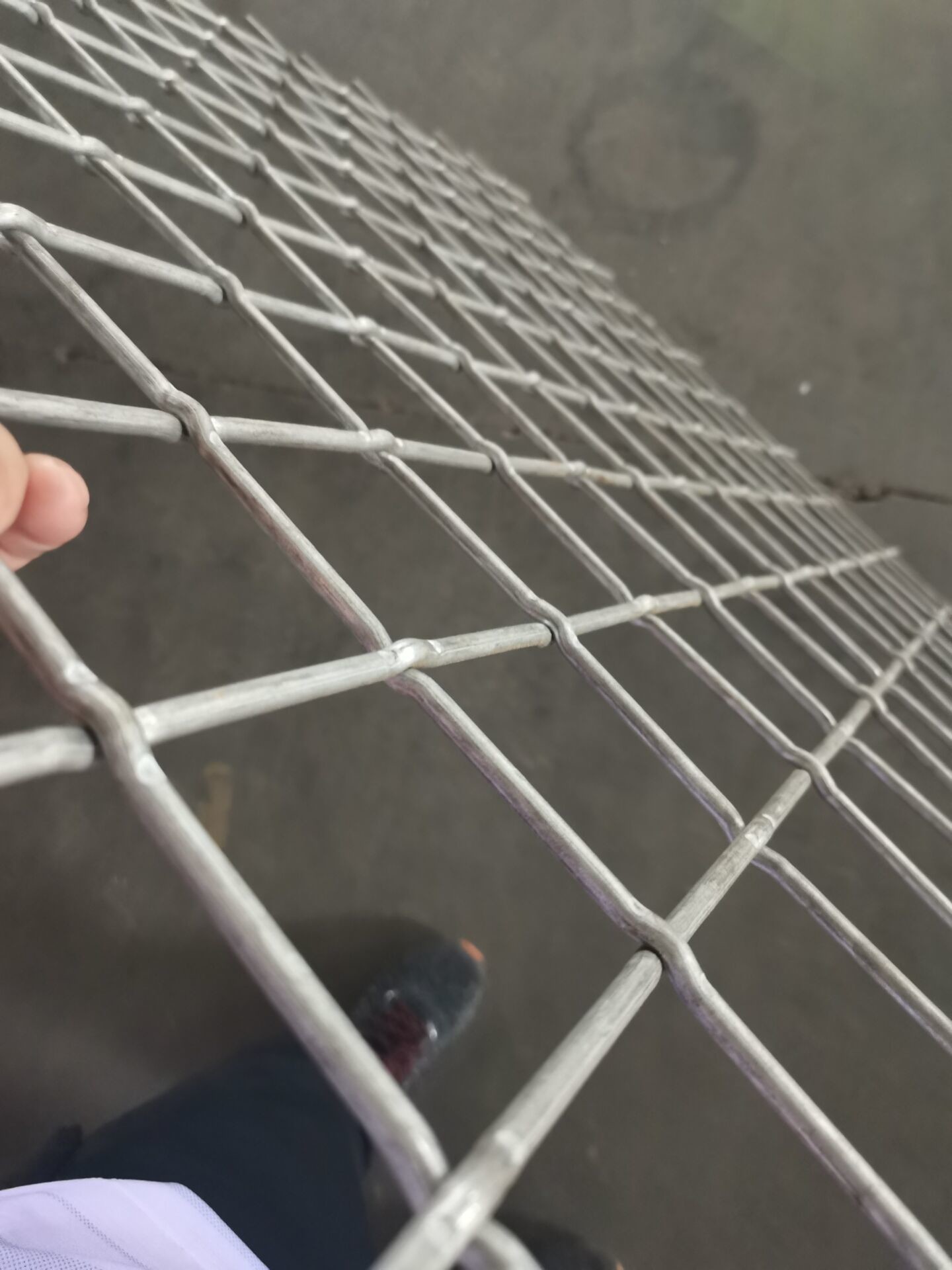

Lock Crimped Mesh is characterized by straight sections of wire connected by a well defined bump at the wire intersections, such a manner to actually lock the wires together, offering further assurance of no wire movement. Our lock crimp wire mesh is good in quality and competitive at price.
Wire, or space, cloth with a pre crimp mesh is woven using wire crimped prior to weaving. The crimps are made at the points the shute and warp wires intersect which secures the wire, thereby stabilizing the wire cloth and preventing the wire from moving. Additional rigidity and strength can be obtained by adding crimps between the intersections, using an intermediate crimp. Crimped wire provides a more secure fit to the mesh, limiting movement of the space cloth. This results in more accurate and consistent opening sizes within the mesh.
Specifications:
Lock Crimp Wire Mesh | ||||
Opening | Wire Diameter | Open Area | ||
mm | Inch | mm | Inch | % |
10.0 | 0.394 | 2.5 | 0.098 | 64.00 |
2.0 | 0.079 | 69.44 | ||
1.8 | 0.071 | 71.82 | ||
1.6 | 0.063 | 74.32 | ||
1.5 | 0.059 | 75.61 | ||
1.4 | 0.055 | 76.95 | ||
1.2 | 0.047 | 79.72 | ||
1.0 | 0.039 | 82.64 | ||
12.0 | 0.472 | 4.0 | 0.157 | 56.25 |
3.5 | 0.138 | 59.93 | ||
2.6 | 0.102 | 67.55 | ||
1.5 | 0.059 | 79.01 | ||
12.7 | 1/2” | 4.0 | 0.157 | 57.83 |
3.5 | 0.138 | 61.46 | ||
3.0 | 0.118 | 65.43 | ||
2.5 | 0.098 | 69.81 | ||
2.0 | 0.079 | 74.64 | ||
1.8 | 0.071 | 76.71 | ||
15.0 | 0.591 | 4.8 | 0.189 | 57.39 |
4.5 | 0.177 | 59.17 | ||
4.0 | 0.157 | 62.33 | ||
3.5 | 0.138 | 65.74 | ||
3.0 | 0.118 | 69.44 | ||
2.6 | 0.102 | 72.63 | ||
2.5 | 0.098 | 73.47 | ||
2.0 | 0.079 | 77.85 | ||
19.0 | 0.748 | 4.8 | 0.189 | 63.73 |
4.0 | 0.157 | 68.24 | ||
3.5 | 0.138 | 71.30 | ||
20.0 | 0.787 | 4.8 | 0.189 | 65.04 |
4.5 | 0.177 | 66.64 | ||
4.0 | 0.157 | 69.44 | ||
3.5 | 0.138 | 72.43 | ||
3.0 | 0.118 | 75.61 | ||
2.5 | 0.098 | 79.01 | ||
2.0 | 0.079 | 82.64 | ||
25.0 | 0.984 | 4.8 | 0.189 | 70.37 |
3.5 | 0.138 | 76.94 | ||
3.0 | 0.118 | 79.71 | ||
2.0 | 0.079 | 85.73 | ||
25.4 | 1” | 4.8 | 0.189 | 70.74 |
4.5 | 0.177 | 72.16 | ||
4.0 | 0.157 | 74.64 | ||
3.5 | 0.138 | 77.25 | ||
3.0 | 0.118 | 79.99 | ||
2.5 | 0.098 | 82.88 | ||
30.0 | 1.181 | 4.8 | 0.189 | 74.32 |
4.5 | 0.177 | 75.61 | ||
4.0 | 0.157 | 77.85 | ||
3.5 | 0.138 | 80.20 | ||
3.0 | 0.118 | 82.64 | ||
2.5 | 0.098 | 85.21 | ||
38.1 | 1-1/2” | 4.8 | 0.189 | 78.87 |
4.5 | 0.177 | 79.99 | ||
4.0 | 0.157 | 71.90 | ||
3.5 | 0.138 | 83.88 | ||
3.0 | 0.118 | 85.93 | ||
2.5 | 0.098 | 88.06 | ||
50.8 | 2” | 4.8 | 0.189 | 83.48 |
4.5 | 0.177 | 84.39 | ||
4.0 | 0.157 | 85.93 | ||
3.5 | 0.138 | 87.52 | ||
3.0 | 0.118 | 89.16 | ||
70.0 | 2.756 | 4.8 | 0.189 | 87.58 |
76.2 | 3” | 4.8 | 0.189 | 88.50 |
4.5 | 0.177 | 89.16 | ||
4.0 | 0.157 | 90.27 | ||
3.5 | 0.138 | 91.41 | ||
88.9 | 3-1/2” | 3.5 | 0.138 | 92.57 |
101.6 | 4” | 4.8 | 0.189 | 91.18 |
Other sizes as your special request.
Material:
Standard materials of flat top crimped wire mesh are low/mild/high carbon steel and stainless steel 201, 202, 304, 316, 321, 410, 430.
Besides above following material available:
Copper: brass, pure copper, phosphor bronze
Aluminum: 1050, 1060, 1100, 5052, 5056
Nickel: pure nickel, nickel alloy, monel
Lock Crimped:
Features:
Structure firm and durable, Heat resistance, Acid resistance, Alkalis Resistant, Corrosion resistance, Wear Resistance, Impact resistance, Keep the wires in a specific position, Strong and durable, long life.
Applicatioins:
Pre crimp mesh is used in the waste water, oil refining, mining, construction, ety and food processing industries for applications that require strength and large-hole filtering and screening. Pre crimped wire cloth is also used in architectural and industrial design applications.
Heavy duty wire mesh is custom manufactured for products and applications requiring strength and rigidity, such as sieves and vibration filter media for sizing, sorting and filtering heavy or large materials. Heavy duty wire cloth is used in the mining, refining and construction industries.
Packing:
in waterproof paper and film, then in pallets. Custom packing available at request.
