Astm 304ss Lock Stainless Steel Crimped Wire Mesh 3/4" Opening 0.0787"

  • Astm 304ss Lock Stainless Steel Crimped Wire Mesh 3/4" Opening 0.0787"
  • Astm 304ss Lock Stainless Steel Crimped Wire Mesh 3/4" Opening 0.0787"
  • Astm 304ss Lock Stainless Steel Crimped Wire Mesh 3/4" Opening 0.0787"
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 50Rolls
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
Delivery Time 20 days
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Firm Structure, Good Strength, Economy Cost Product Name Crimped Wire Mesh
Material Stainless Steel 304 Type Lock Crimped
Hole Shape Square Hole Clear Opening 3/4"
Wire Diameter 0.0787" Length 1m, 2m, 3m, Etc
Width 1m, 1.22m, 1.5m, Etc Application Architectural & Decorative Industries, For The Screen Of Window, Fence And Ceiling.
Highlight

astm stainless steel crimped wire mesh

,

0.0787" stainless steel crimped wire mesh

,

3/4" opening stainless steel crimped mesh
Leave a Message
Product Description

ASTM 304SS Lock Crimped Wire Mesh 3/4" Opening 0.0787" wire Firm Structure



Crimped Wire Mesh Introduction:



Crimped wire mesh can be also known as the iron crimped mesh, stainless steel crimped mesh and black iron crimped mesh according to different materials. It is made in a variety of materials through crimping mesh machine, a kind of universal wire products with square or rectangular openings. Our crimped wire mesh products are made of galvanized wire mesh and stainless steel wire mesh. According to loading capacity and wire used, it can be separated into heavy type and light type.

Crimped wire mesh products are used as fence or filter in a lot of industries. Heavy type crimped wire mesh is used in screening in mine, coal factory, construction and other industries. Light type crimped wire mesh can be used to roast for food or meat.



Specifications:



Lock Crimp Wire Mesh
Opening Wire Diameter Open Area
mm Inch mm Inch %
10.0 0.394 2.5 0.098 64.00
2.0 0.079 69.44
1.8 0.071 71.82
1.6 0.063 74.32
1.5 0.059 75.61
1.4 0.055 76.95
1.2 0.047 79.72
1.0 0.039 82.64
12.0 0.472 4.0 0.157 56.25
3.5 0.138 59.93
2.6 0.102 67.55
1.5 0.059 79.01
12.7 1/2” 4.0 0.157 57.83
3.5 0.138 61.46
3.0 0.118 65.43
2.5 0.098 69.81
2.0 0.079 74.64
1.8 0.071 76.71
15.0 0.591 4.8 0.189 57.39
4.5 0.177 59.17
4.0 0.157 62.33
3.5 0.138 65.74
3.0 0.118 69.44
2.6 0.102 72.63
2.5 0.098 73.47
2.0 0.079 77.85
19.0 0.748 4.8 0.189 63.73
4.0 0.157 68.24
3.5 0.138 71.30
20.0 0.787 4.8 0.189 65.04
4.5 0.177 66.64
4.0 0.157 69.44
3.5 0.138 72.43
3.0 0.118 75.61
2.5 0.098 79.01
2.0 0.079 82.64
25.0 0.984 4.8 0.189 70.37
3.5 0.138 76.94
3.0 0.118 79.71
2.0 0.079 85.73
25.4 1” 4.8 0.189 70.74
4.5 0.177 72.16
4.0 0.157 74.64
3.5 0.138 77.25
3.0 0.118 79.99
2.5 0.098 82.88
30.0 1.181 4.8 0.189 74.32
4.5 0.177 75.61
4.0 0.157 77.85
3.5 0.138 80.20
3.0 0.118 82.64
2.5 0.098 85.21
38.1 1-1/2” 4.8 0.189 78.87
4.5 0.177 79.99
4.0 0.157 71.90
3.5 0.138 83.88
3.0 0.118 85.93
2.5 0.098 88.06
50.8 2” 4.8 0.189 83.48
4.5 0.177 84.39
4.0 0.157 85.93
3.5 0.138 87.52
3.0 0.118 89.16
70.0 2.756 4.8 0.189 87.58
76.2 3” 4.8 0.189 88.50
4.5 0.177 89.16
4.0 0.157 90.27
3.5 0.138 91.41
88.9 3-1/2” 3.5 0.138 92.57
101.6 4” 4.8 0.189 91.18


Other sizes as your special request.



Material:



Standard materials of flat top crimped wire mesh are low/mild/high carbon steel and stainless steel 201, 202, 304, 316, 321, 410, 430.

Besides above following material available:
Copper: brass, pure copper, phosphor bronze
Aluminum: 1050, 1060, 1100, 5052, 5056
Nickel: pure nickel, nickel alloy, monel



Lock Crimped:

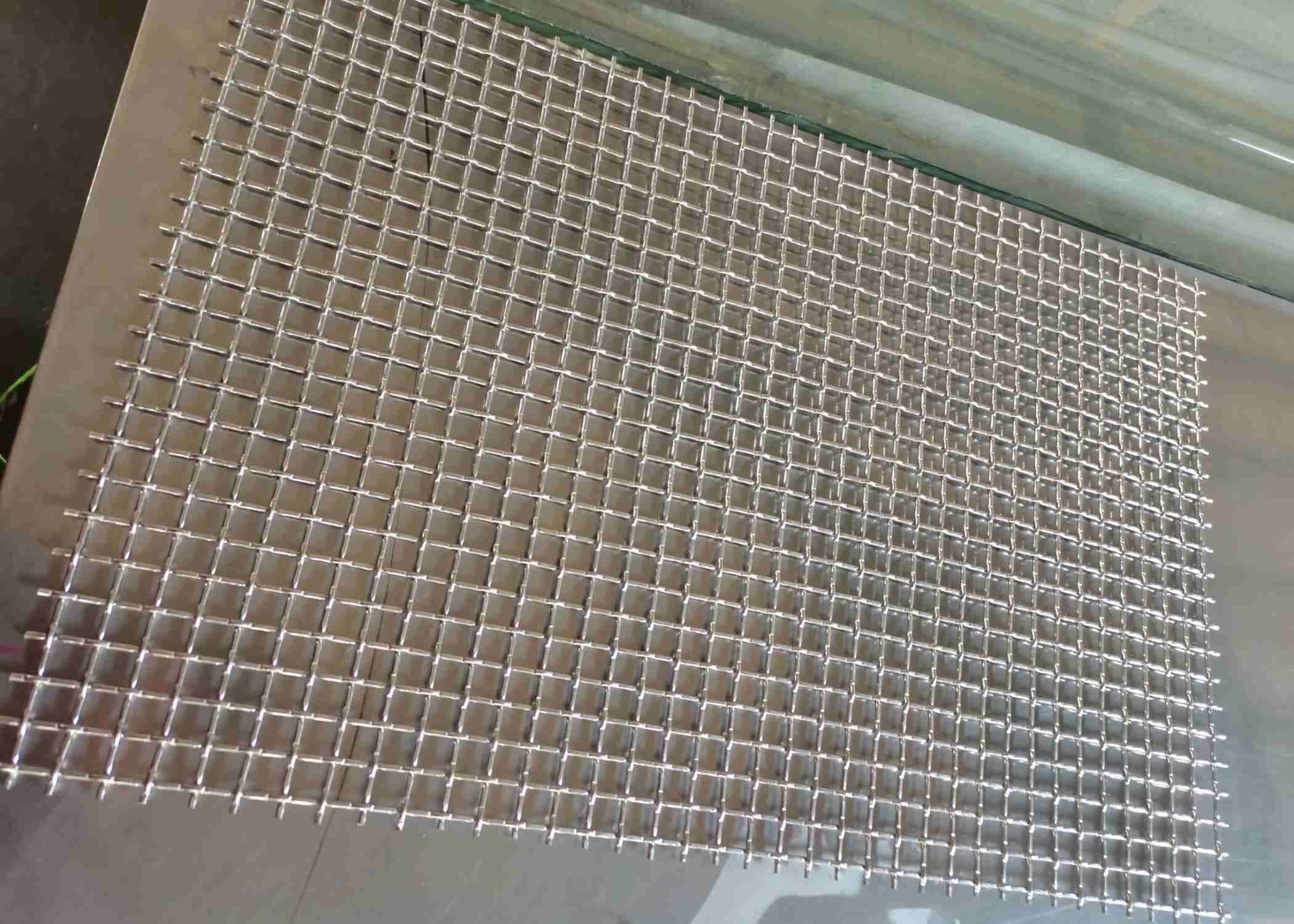

Astm 304ss Lock Stainless Steel Crimped Wire Mesh 3/4" Opening 0.0787" 0



Features:



Structure firm and durable, Heat resistance, Acid resistance, Alkalis Resistant, Corrosion resistance, Wear Resistance, Impact resistance, Keep the wires in a specific position, Strong and durable, long life.

Applicatioins:



- Food industries
- High pressure filters
- Cooling circuit filters
- Grids and trays for thermal treatments
- Decoration

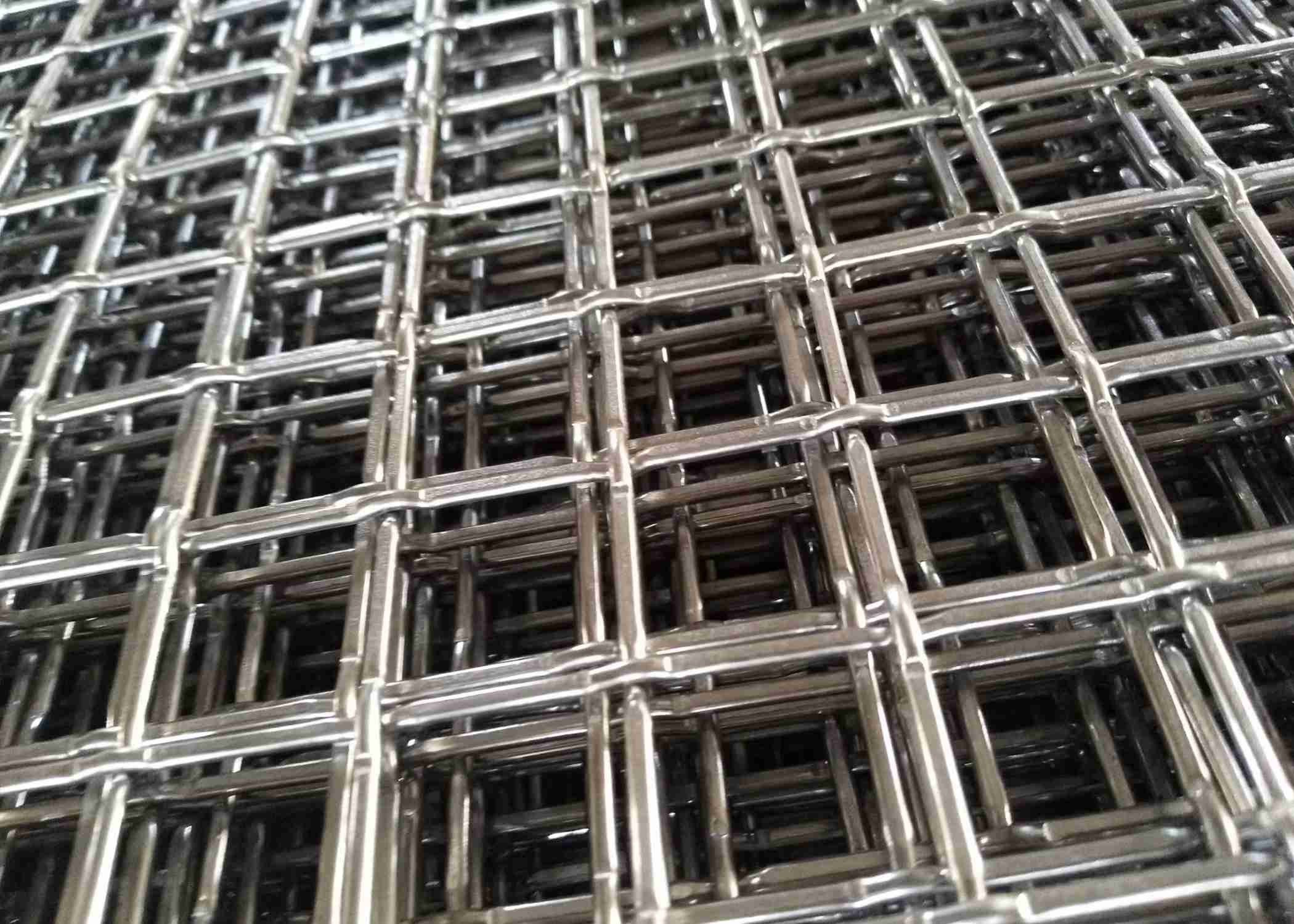

Astm 304ss Lock Stainless Steel Crimped Wire Mesh 3/4" Opening 0.0787" 1



Packing:



in waterproof paper and film, then in pallets. Custom packing available at request.



Astm 304ss Lock Stainless Steel Crimped Wire Mesh 3/4" Opening 0.0787" 2
