Slot Hole Steel Crimped Wire Mesh For Sieve Vibration And Buildings

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xFeatures | Firm Structure, Good Strength, Economy Cost | Product Name | Crimped Wire Mesh |
---|---|---|---|
Material | Stainless Steel Wire, Carbon Steel Wire | Type | Lock Crimped |
Hole Shape | Square Hole Or Slot Hole | Clear Opening | 10mm To 100mm |
Wire Diameter | 1.5mm To 5mm | Length | 15m, 30m To 60m |
Width | 1m, 1.22m, 1.5m To 4m. | Application | Architectural & Decorative Industries, For The Screen Of Window, Fence And Ceiling. |
Highlight | slot hole stainless steel crimped mesh,sieve vibration steel crimped wire mesh,buildings steel crimped wire mesh |

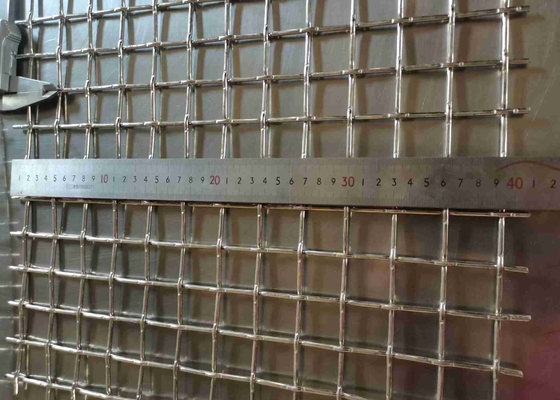

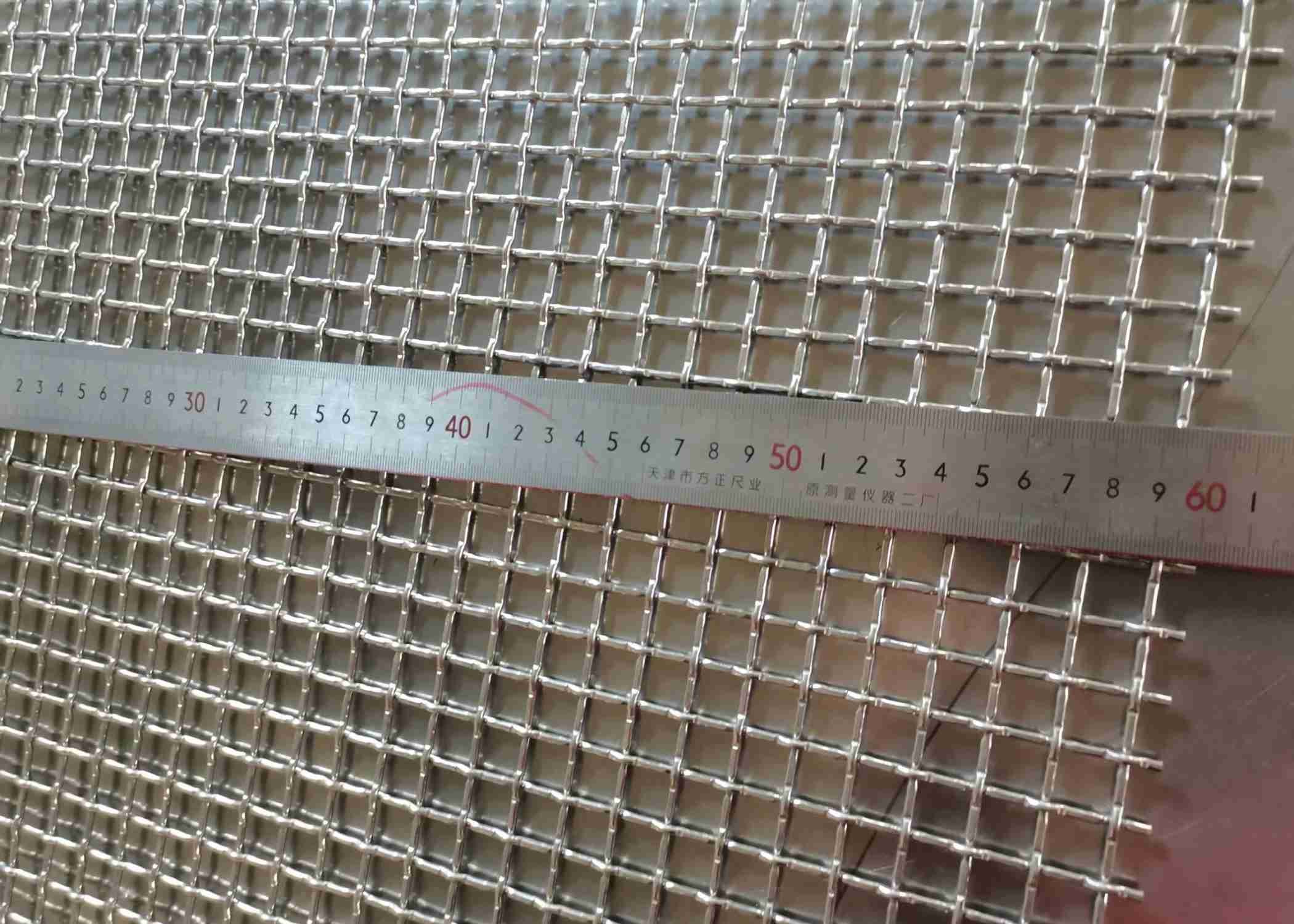

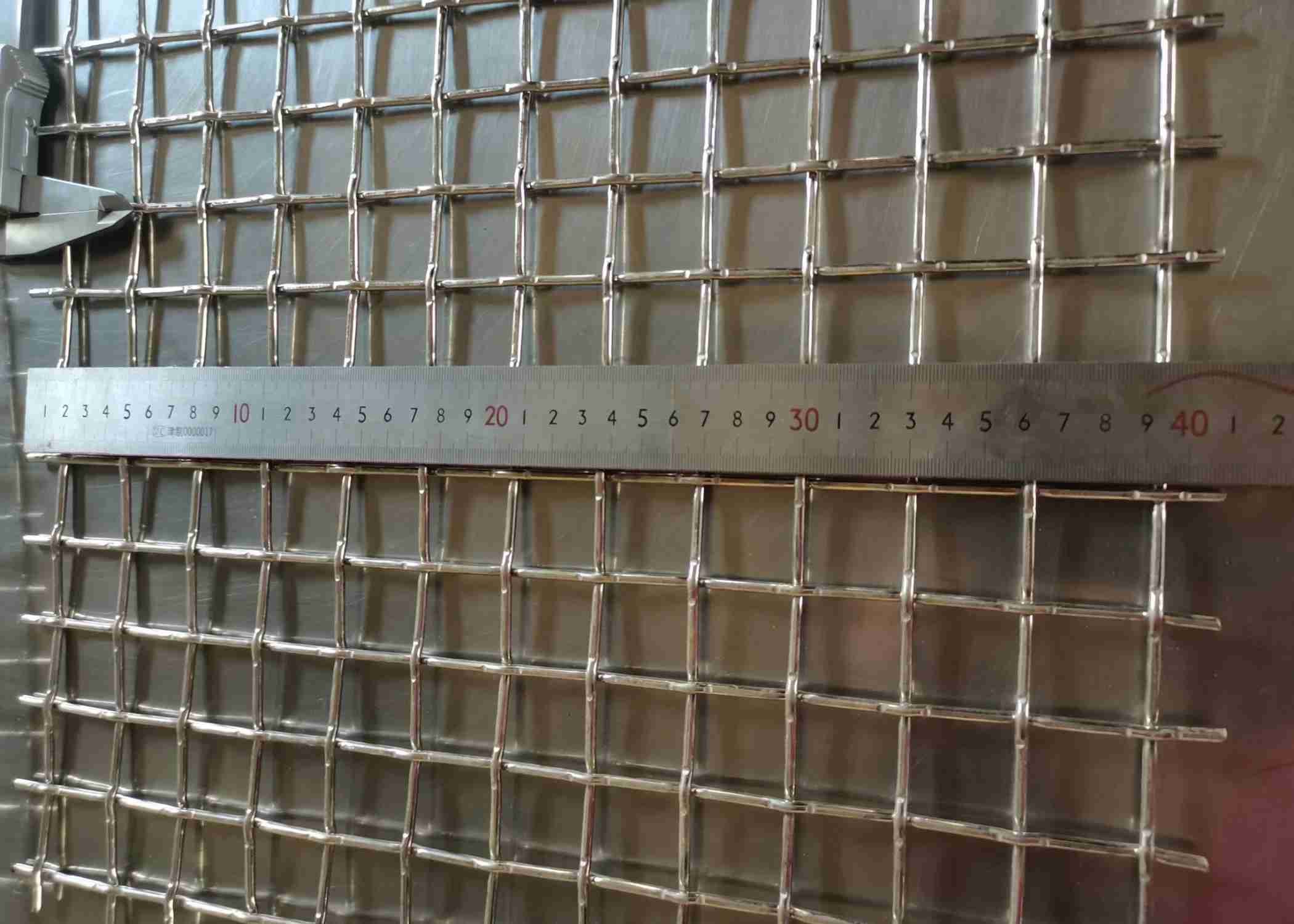

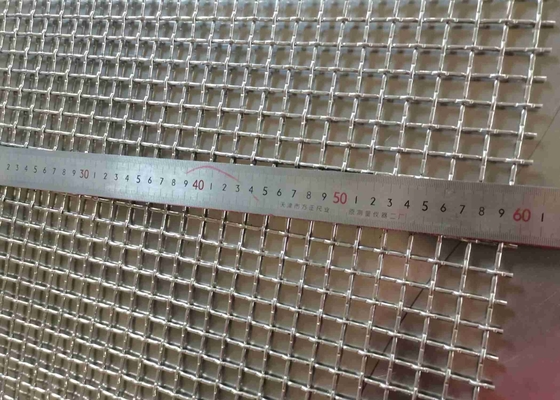

Lock Crimped Wire Mesh 10mm To 100mm Aperture Screen For Sieve Vibration And Buildings
Crimped Wire Mesh Introduction:
Lock crimped wire mesh/screen is produced on looms by weaving previously crimped wires. This type of wire mesh prevents materials from slipping down and is commonly used as heavy duty wire mesh in the mining and architectural applications.
Lock crimped weave is a more modern crimp style, the warp wire and weft wire are crimping at the points of intersection and have clear bumps, while the wires on a lock crimp are straight between intersections.
Lock crimped is a refinement of the intermediate crimped. It can lock the wire at their position through pressed at each side of the raised wire. This structure can add the stability of the crimped woven wire mesh.
Specifications:
Lock Crimp Wire Mesh | ||||
Opening | Wire Diameter | Open Area | ||
mm | Inch | mm | Inch | % |
10.0 | 0.394 | 2.5 | 0.098 | 64.00 |
2.0 | 0.079 | 69.44 | ||
1.8 | 0.071 | 71.82 | ||
1.6 | 0.063 | 74.32 | ||
1.5 | 0.059 | 75.61 | ||
1.4 | 0.055 | 76.95 | ||
1.2 | 0.047 | 79.72 | ||
1.0 | 0.039 | 82.64 | ||
12.0 | 0.472 | 4.0 | 0.157 | 56.25 |
3.5 | 0.138 | 59.93 | ||
2.6 | 0.102 | 67.55 | ||
1.5 | 0.059 | 79.01 | ||
12.7 | 1/2” | 4.0 | 0.157 | 57.83 |
3.5 | 0.138 | 61.46 | ||
3.0 | 0.118 | 65.43 | ||
2.5 | 0.098 | 69.81 | ||
2.0 | 0.079 | 74.64 | ||
1.8 | 0.071 | 76.71 | ||
15.0 | 0.591 | 4.8 | 0.189 | 57.39 |
4.5 | 0.177 | 59.17 | ||
4.0 | 0.157 | 62.33 | ||
3.5 | 0.138 | 65.74 | ||
3.0 | 0.118 | 69.44 | ||
2.6 | 0.102 | 72.63 | ||
2.5 | 0.098 | 73.47 | ||
2.0 | 0.079 | 77.85 | ||
19.0 | 0.748 | 4.8 | 0.189 | 63.73 |
4.0 | 0.157 | 68.24 | ||
3.5 | 0.138 | 71.30 | ||
20.0 | 0.787 | 4.8 | 0.189 | 65.04 |
4.5 | 0.177 | 66.64 | ||
4.0 | 0.157 | 69.44 | ||
3.5 | 0.138 | 72.43 | ||
3.0 | 0.118 | 75.61 | ||
2.5 | 0.098 | 79.01 | ||
2.0 | 0.079 | 82.64 | ||
25.0 | 0.984 | 4.8 | 0.189 | 70.37 |
3.5 | 0.138 | 76.94 | ||
3.0 | 0.118 | 79.71 | ||
2.0 | 0.079 | 85.73 | ||
25.4 | 1” | 4.8 | 0.189 | 70.74 |
4.5 | 0.177 | 72.16 | ||
4.0 | 0.157 | 74.64 | ||
3.5 | 0.138 | 77.25 | ||
3.0 | 0.118 | 79.99 | ||
2.5 | 0.098 | 82.88 | ||
30.0 | 1.181 | 4.8 | 0.189 | 74.32 |
4.5 | 0.177 | 75.61 | ||
4.0 | 0.157 | 77.85 | ||
3.5 | 0.138 | 80.20 | ||
3.0 | 0.118 | 82.64 | ||
2.5 | 0.098 | 85.21 | ||
38.1 | 1-1/2” | 4.8 | 0.189 | 78.87 |
4.5 | 0.177 | 79.99 | ||
4.0 | 0.157 | 71.90 | ||
3.5 | 0.138 | 83.88 | ||
3.0 | 0.118 | 85.93 | ||
2.5 | 0.098 | 88.06 | ||
50.8 | 2” | 4.8 | 0.189 | 83.48 |
4.5 | 0.177 | 84.39 | ||
4.0 | 0.157 | 85.93 | ||
3.5 | 0.138 | 87.52 | ||
3.0 | 0.118 | 89.16 | ||
70.0 | 2.756 | 4.8 | 0.189 | 87.58 |
76.2 | 3” | 4.8 | 0.189 | 88.50 |
4.5 | 0.177 | 89.16 | ||
4.0 | 0.157 | 90.27 | ||
3.5 | 0.138 | 91.41 | ||
88.9 | 3-1/2” | 3.5 | 0.138 | 92.57 |
101.6 | 4” | 4.8 | 0.189 | 91.18 |
Other sizes as your special request.
Material:
Standard materials of flat top crimped wire mesh are low/mild/high carbon steel and stainless steel 201, 202, 304, 316, 321, 410, 430.
Besides above following material available:
Copper: brass, pure copper, phosphor bronze
Aluminum: 1050, 1060, 1100, 5052, 5056
Nickel: pure nickel, nickel alloy, monel
Lock Crimped:
Features:
Greater precision;
Particularly smooth surface;
Keep the wires in a specific position;
Wear resistance and firm structure;
Strong and durable, long life.
Applicatioins:
Agricultural
Architectural & Artistic
Building & Construction
Cabinetry & Furniture
Cages & Enclosures
Fan Guards
Filtration & Particle Separation Disks
Fireplace Screen
Fuel Industries
Heat Treatment
Hydraulic Applications
Railing & Guardrail Infill Panels
Mining & Quarrying
Oil Strainers
ety Fencing & Machine Guards
Security & Prison
Window Guards
Wine Lockers
Packing:
in waterproof paper and film, then in pallets. Custom packing available at request.
