ASTM Fine Copper Mesh Openings Ranging From 0.001 Inch To 0.005 Inch 60 To 300 Mesh

  • ASTM Fine Copper Mesh Openings Ranging From 0.001 Inch To 0.005 Inch 60 To 300 Mesh
  • ASTM Fine Copper Mesh Openings Ranging From 0.001 Inch To 0.005 Inch 60 To 300 Mesh
  • ASTM Fine Copper Mesh Openings Ranging From 0.001 Inch To 0.005 Inch 60 To 300 Mesh
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 10Rolls
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
Delivery Time 2weeks
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Fine Copper Mesh Material Copper Wire
Standard ASTM Opening 0.001 Inch To 0.005 Inch
Mesh Counts 60 To 300 Mesh Weaving Type Plain Weave, Twill Weave, Dutch Weave.
Width 0.914 M, 1.0 M, 1.22 M And Customized Sizes. Length 30 M, 50 M, 100 M And Customized Lengths.
Properties Excellent Electical Conductivity. Usages Faraday Cage
High Light

0.001 inch fine copper mesh

,

300 mesh fine copper mesh

,

0.005 inch metal woven wire mesh
Leave a Message
Product Description

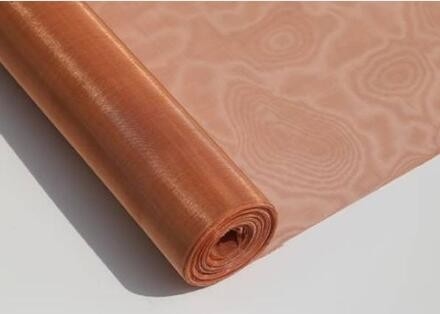

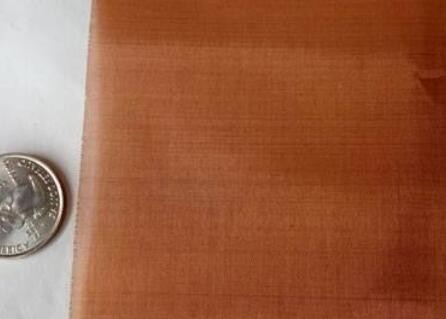

Fine Copper Mesh Openings Ranging From 0.001 Inch To 0.005 Inch 60 To 300 Mesh



Copper Woven Wire Mesh Introduction:



Fine copper mesh is designed with openings ranging from 0.001 inch to 0.005 inch (0.030 mm to 0.122 mm). This metal fabric is totally made by 100% copper. It is quite easy to any shapes with common knife or scissors.

Micro aperture allows its many applications as screens and sieves. For example, it can be used as locomotive engine compartments for ventilation. Softness and flexibility makes it very easy to operate in producing handcrafts or artworks.

Faraday cages often choose fine copper mesh as its material. The meshes are grounded to dissipate any electric currents generated by the external electromagnetic fields.



Specifications

Mateiral: 100% pure copper.
Mesh size: 60–300 mesh.
Roll width: 0.914 m, 1.0 m, 1.22 m and customized sizes.
Roll length: 30 m, 50 m, 100 m and customized lengths.
Customized specifications on large quantity order are also available.





mesh/inch Wire Diameter Opening Weight
　 mm inch mm inch Kg/m2
60 0.122 0.005 0.3 0.012 0.482
60 0.16 0.006 0.26 0.01 0.829
60 0.19 0.007 0.23 0.009 1.17
64 0.1 0.004 0.3 0.012 0.346
66.8 0.08 0.003 0.3 0.012 0.231
70 0.12 0.005 0.24 0.01 0.544
80 0.12 0.005 0.2 0.008 0.622
80 0.13 0.005 0.19 0.007 0.73
80 0.14 0.006 0.18 0.007 0.847
90 0.11 0.004 0.17 0.007 0.588
100 0.035 0.001 0.22 0.009 0.066
100 0.05 0.002 0.2 0.008 0.135
100 0.055 0.002 0.2 0.008 0.163
100 0.1 0.004 0.15 0.006 0.54
100 0.11 0.004 0.14 0.006 0.653
104 0.06 0.002 0.18 0.007 0.202
120 0.09 0.004 0.12 0.005 0.525
120 0.058 0.002 0.15 0.006 0.218
120 0.08 0.003 0.13 0.005 0.415
140 0.07 0.003 0.11 0.004 0.37
145 0.045 0.002 0.13 0.005 0.159
145 0.06 0.002 0.12 0.005 0.282
150 0.06 0.002 0.11 0.004 0.292
150 0.05 0.002 0.12 0.005 0.203
160 0.05 0.002 0.11 0.004 0.216
160 0.04 0.002 0.12 0.005 0.138
160 0.035 0.001 0.12 0.005 0.106
165 0.05 0.002 0.1 0.004 0.223
180 0.05 0.002 0.09 0.004 0.243
180 0.04 0.002 0.1 0.004 0.156
200 0.053 0.002 0.07 0.003 0.303
200 0.05 0.002 0.08 0.003 0.27
200 0.04 0.002 0.09 0.003 0.173
220 0.05 0.002 0.07 0.003 0.297
230 0.035 0.001 0.08 0.003 0.152
230 0.03 0.001 0.08 0.003 0.112
250 0.04 0.002 0.06 0.002 0.216
250 0.035 0.001 0.07 0.003 0.165
250 0.03 0.001 0.07 0.003 0.122
270 0.035 0.001 0.06 0.002 0.179
270 0.03 0.001 0.06 0.003 0.131
280 0.035 0.001 0.06 0.002 0.185
300 0.03 0.001 0.05 0.002 0.146

Other specifications according to your requirements.

Features:

Smooth surface and bright color.
Good electricity and heat conductivity, good toughness.
Non-magnetic, well sound-proof.
Anti-sparking, anti-static.
Resistant to corrosion, abrasion, rust, salt air, brine, acid, alkali.
Low tensile strength, low hardness.
Soft, flexibility, bent easily, weld easily.
Easy to install, can be cut by scissors.
Long service life.


Application:


Prevention rats, mice, birds and insects as screen for window and door.
Used for filtering electron beam and electronic display screen.
Used in traveling water screen, radio frequency interference shielding, sugar and marine application.
Sieving and filtering granule, powder, porcelain clay and glass, chinaware printing, grain, filtering liquid and gas.
Screen filtration in mine, metallurgy, construction, pharmacy, printing, petroleum, rubber, paper making and food and other industries.
Used for gutter guards, plumbing screen, snail control, fireplace screen, RFI shielding, Faraday cage, house vents.
Decorative mesh for house facades, walls, ceilings, lamps, cabinet.
Used for sculptures and crafts.





ASTM Fine Copper Mesh Openings Ranging From 0.001 Inch To 0.005 Inch 60 To 300 Mesh 0

ASTM Fine Copper Mesh Openings Ranging From 0.001 Inch To 0.005 Inch 60 To 300 Mesh 1

ASTM Fine Copper Mesh Openings Ranging From 0.001 Inch To 0.005 Inch 60 To 300 Mesh 2



Packing:



Wire mesh is packed in rolls,winding on a paper tube,wrapped in moisture-proof paper or plastic film, outside wooden cases or wooden pallet.



ASTM Fine Copper Mesh Openings Ranging From 0.001 Inch To 0.005 Inch 60 To 300 Mesh 3
