Product Details
Product Name Medium Copper Mesh Material Copper Wire
Standard ASTM Hole Shape Square, Rectangle.
Mesh Counts 0.012 Inch To 0.069 Inch Weaving Type Plain Weave
Width 0.914 M, 1.0 M, 1.22 M And Customized Sizes. Length 30 M, 50 M, 100 M And Customized Lengths.
Properties Beautiful And Attractive Surface. Usages Decoration For Live Rooms, Offices, Villas, Hotels And Commercial Areas.
Highlight

medium copper metal woven wire mesh

,

corrosion resistance metal woven wire mesh

,

corrosion resistance copper woven wire mesh
Leave a Message
Product Description

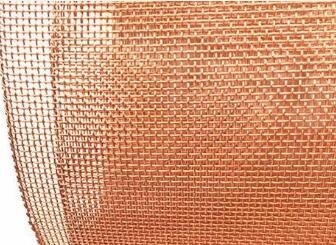

 Medium Copper Mesh With Various Specs Good Resistance To Atmosphere Corrosion



Copper Woven Wire Mesh Introduction:



Medium copper wire mesh has many mesh openings ranging from 0.012 inch to 0.069 inch. It is a kind ofwoven wire mesh with plain weave structures.

Our medium copper wire mesh is made of pure copper, not copper alloy.

Compared with coarse copper mesh, it has smaller and softer structure to be used more applications.



Specifications

Mateiral: pure copper.
Mesh size: 1–10 mesh.
Roll width: 0.914 m, 1.0 m, 1.22 m and customized sizes.
Roll length: 30 m, 50 m, 100 m and customized lengths.
Customized specifications on large quantity order are also available.



mesh/inch Wire Diameter Opening Weight
mm inch mm inch Kg/m2
12 0.35 0.014 1.77 0.07 0.794
12 0.55 0.022 1.57 0.062 1.96
14 0.5 0.02 1.31 0.052 1.89
15 0.23 0.009 1.46 0.058 0.428
16 0.28 0.011 1.31 0.051 0.677
16 0.315 0.012 1.27 0.05 0.857
16 0.45 0.018 1.14 0.045 1.75
16 0.5 0.02 1.09 0.043 2.16
16.9 0.25 0.01 1.25 0.049 0.57
18 0.315 0.012 1.1 0.043 0.964
18 0.38 0.015 1.03 0.041 1.404
18 0.5 0.02 0.91 0.036 2.43
20 0.4 0.016 0.87 0.034 1.728
20 0.45 0.018 0.82 0.032 2.187
22 0.3 0.012 0.85 0.034 1.069
22 0.37 0.015 0.78 0.031 1.626
22 0.38 0.015 0.77 0.03 1.715
24 0.27 0.011 0.78 0.031 0.945
24 0.35 0.014 0.71 0.028 1.588
25.5 0.4 0.016 0.6 0.023 2.203
26 0.3 0.012 0.68 0.027 1.264
28 0.3 0.012 0.61 0.024 1.361
30 0.23 0.009 0.62 0.024 0.857
30 0.25 0.01 0.6 0.023 1.013
30 0.3 0.012 0.55 0.022 1.458
31.75 0.25 0.01 0.55 0.022 1.072
40 0.19 0.007 0.44 0.017 0.78
40 0.2 0.008 0.44 0.017 0.864
50 0.18 0.007 0.33 0.013 0.875
50 0.2 0.008 0.31 0.012 1.08
50 0.225 0.009 0.28 0.011 1.367


Other specifications according to your requirements.

Features:

Our copper wire mesh is made of pure copper, not copper alloy. It has better resistance to atmosphere corrosion, especially in coastal areas.
Its soft property makes it very easy to operate.
What is more, its special brown luster gives a deep impression.
Excellent EMI/RFI/RF/EMC shielding performance.


Application:

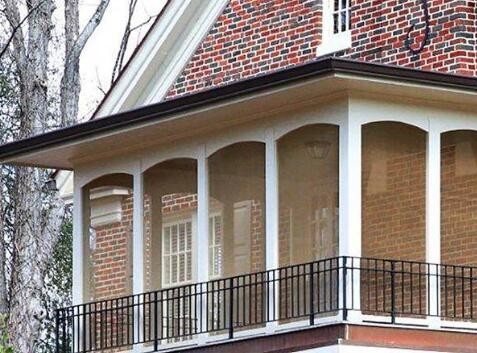

Insect screen.
Decorative wire mesh.
Fireplace screen.
Lamp shade
battery current collector, fuel cells, and electrolyzers.
Test sieve
Lamp shade
Wall decoration
RFI/EMI/EMC shielding mesh.
Faraday Cage.





Medium Copper Metal Woven Wire Mesh Resistance To Atmosphere Corrosion 0

Medium Copper Metal Woven Wire Mesh Resistance To Atmosphere Corrosion 1





Packing:



Wire mesh is packed in rolls,winding on a paper tube,wrapped in moisture-proof paper or plastic film, outside wooden cases or wooden pallet.



Medium Copper Metal Woven Wire Mesh Resistance To Atmosphere Corrosion 2
