Coarse Copper Woven Wire Mesh For Dressing Up House Openings From 0.053" To 0.937"

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | Coarse Copper Wire Mesh | Material | Copper Wire |
---|---|---|---|
Standard | ASTM | Hole Shape | Square, Rectangle. |
Mesh Counts | 0.053" To 0.937" | Weaving Type | Plain Weave |
Width | 0.914 M, 1.0 M, 1.22 M And Customized Sizes. | Length | 30 M, 50 M, 100 M And Customized Lengths. |
Properties | Beautiful And Attractive Surface. | Usages | Decoration For Live Rooms, Offices, Villas, Hotels And Commercial Areas. |
Highlight | coarse copper woven wire mesh,0.053" copper woven wire mesh,0.937" metal woven wire mesh |

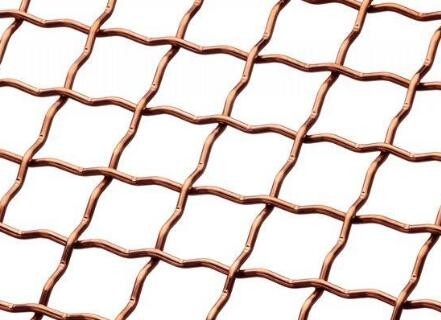

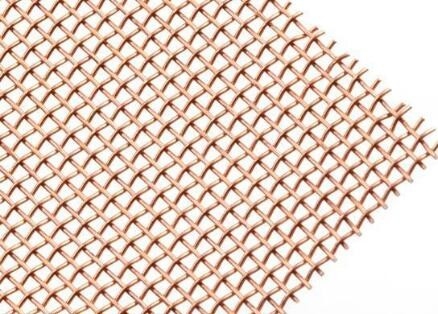

Coarse Copper Wire Mesh For Dressing Up House Openings From 0.053" To 0.937"
Copper Woven Wire Mesh Introduction:
Coarse wire mesh has plain weave structure with mesh openings from 0.053 inch to 0.937 inch. Our copper wire mesh is made of pure copper. So it is very soft to operate with. Copper mesh is very resistant to atmospheric corrosion, but is easily be attacked by oxidizing agents and acids.
Hotsale Specifications:
Coarse copper mesh
Wire diameter: 0.197".
Pitch (hole center to hole center): 1.5", 2".
Coarse copper mesh
Mesh count: 1.
Wire diameter: 0.063".
Width opening: 0.937".
Open area: 87.8%.
Dimensions: 24" × 48".
Coarse copper mesh
Openings per inch: 4.
Wire diameter: 0.063".
Size: 6" × 100'.
Specifications
Mateiral: pure copper.
Mesh size: 1–10 mesh.
Roll width: 0.914 m, 1.0 m, 1.22 m and customized sizes.
Roll length: 30 m, 50 m, 100 m and customized lengths.
Customized specifications on large quantity order are also available.
Mesh/Inch | Wire Diameter | Opening | Weight | ||
mm | inch | mm | inch | Kg/m2 | |
1 | 3 | 0.118 | 22.4 | 0.882 | 4.86 |
2 | 1 | 0.039 | 11.7 | 0.461 | 1.08 |
2 | 1.5 | 0.059 | 11.2 | 0.441 | 2.43 |
2 | 1.6 | 0.063 | 11.1 | 0.437 | 2.76 |
3 | 1.2 | 0.047 | 7.27 | 0.286 | 2.33 |
4 | 1 | 0.039 | 5.35 | 0.211 | 2.16 |
4 | 1.19 | 0.047 | 5.16 | 0.203 | 3.06 |
5 | 1 | 0.039 | 4.08 | 0.161 | 2.7 |
6 | 0.9 | 0.035 | 3.33 | 0.131 | 2.62 |
7 | 0.8 | 0.031 | 2.83 | 0.111 | 2.42 |
8 | 0.7 | 0.028 | 2.48 | 0.097 | 2.12 |
8 | 0.8 | 0.031 | 2.38 | 0.094 | 2.76 |
10 | 0.3 | 0.012 | 2.24 | 0.088 | 0.49 |
10 | 0.6 | 0.024 | 1.94 | 0.076 | 1.94 |
10 | 0.61 | 0.024 | 1.93 | 0.076 | 2.01 |
10 | 0.63 | 0.025 | 1.91 | 0.075 | 2.14 |
Other specifications according to your requirements.
Features:
Unique red-orange luster.
Non-magnetic.
Excellent electical conductivity.
Application:
Owing to its excellent electrical conductivity and non-magnetic property, it is often applied to RFI shielding and Faraday cage.
Coarse copper wire mesh is a better choice for decoration for live rooms, offices, villas, hotels and commercial areas. Its unique red-orange luster makes it very permissive and attractive. It can be used as decorative cabinets, door grilles, display panels and wall decorations.
Packing:
Wire mesh is packed in rolls,winding on a paper tube,wrapped in moisture-proof paper or plastic film, outside wooden cases or wooden pallet.
