Corrosion Resistance Metal Woven Wire Mesh Wear Resistance #65 Brass #70 Brass #80 Brass

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | Brass Wire Mesh | Material | Brass Wire |
---|---|---|---|
Standard | ASTM | Hole Shape | Square, Rectangle. |
Mesh Counts | 2 To 200mesh | Weaving Type | Plain Weave, Twill Weave, Dutch Weave. |
Width | 0.5-2 M | Length | 10-50 M |
Properties | Have Better Abrasion And Corrosion Resistance, Better Tensile Strength, Lower Electricity And Heat Conductivity Compared With Copper Mesh Cloth | Usages | Widely Used In Sieving And Filtering Granule, Powder, Porcelain Clay And Glass, Chinaware Printing, Grain, Filtering Liquid And Gas, Also Used As Decorative Mesh. |
Highlight | wear resistance metal woven wire mesh,#65 brass metal woven wire mesh,corrosion resistance brass woven wire mesh |

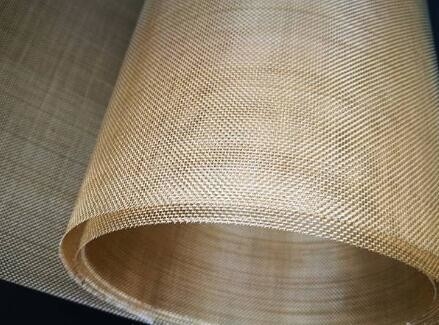

Brass Wire Mesh Has Good Corrosion Resistance and Wear Resistance #65 brass #70 brass #80 brass
Brass Woven Wire Mesh Introduction:
Brass wire mesh, usually refer to woven wire mesh with #65 brass (65% Cu and 35% Zn) (also named 270 brass), #70 brass (70% Cu and 30% Zn) (also named 260 brass) and #80 (80% Cu and 20% Zn) as the raw material. Compared with copper wire mesh, the brass wire mesh has lower electricity and heat conductivity but better abrasion and corrosion resistance.
Zn element in the brass wire mesh makes the brass wire harder than copper wire, and also has better corrosion and wear resistant performance.
The brass wire mesh can be widely used in industrial filtration and separation. The mesh can be processed into disc, tubular and other customized shapes.
Specifications
Material: #65 brass, #70 brass, #80 brass.
Weaving type: plain weave, twill weave.
Standard roll size: 1/1.22/1.5 m width × 30/30.5/50 m length.
Hole shape: square, rectangle.
Color: yellow golden.
Brass mesh and brass wire cloth specification | ||||
Mesh/inch | Wire diameter | Opening | Open area | |
mm | inch | mm | ||
2 | 2.03 | 0.8 | 10.67 | 70 |
2 | 1.8 | 0.072 | 10.9 | 73 |
2 | 1.6 | 0.063 | 11.1 | 76 |
3 | 1.6 | 0.063 | 6.87 | 65 |
4 | 1.194 | 0.047 | 5.16 | 66 |
5 | 0.91 | 0.035 | 4.17 | 67 |
8 | 0.711 | 0.028 | 2.46 | 60 |
6 | 0.8 | 0.032 | 3.43 | 66 |
6 | 0.711 | 0.028 | 3.52 | 69 |
8 | 0.61 | 0.024 | 2.57 | 65 |
8 | 0.559 | 0.022 | 2.62 | 68 |
10 | 0.635 | 0.025 | 1.9 | 56 |
10 | 0.559 | 0.022 | 1.98 | 61 |
10 | 0.508 | 0.02 | 2.03 | 64 |
12 | 0.584 | 0.023 | 1.47 | 52 |
12 | 0.457 | 0.018 | 1.66 | 61 |
14 | 0.5 | 0.02 | 1.31 | 52 |
14 | 0.457 | 0.018 | 1.36 | 56 |
14 | 0.417 | 0.016 | 1.4 | 59 |
16 | 0.457 | 0.018 | 1.12 | 50 |
16 | 0.345 | 0.014 | 1.24 | 61 |
16 | 0.315 | 0.012 | 1.27 | 64 |
18 | 0.45 | 0.018 | 0.96 | 46 |
18 | 0.432 | 0.017 | 0.97 | 48 |
18 | 0.315 | 0.012 | 1.1 | 60 |
20 | 0.315 | 0.012 | 0.96 | 56 |
20 | 0.247 | 0.011 | 0.88 | 61 |
22 | 0.315 | 0.012 | 0.84 | 53 |
24 | 0.315 | 0.012 | 0.74 | 49 |
26 | 0.295 | 0.012 | 0.68 | 49 |
28 | 0.295 | 0.012 | 0.61 | 45 |
20 | 0.407 | 0.016 | 0.86 | 46 |
30 | 0.305 | 0.012 | 0.53 | 40 |
30 | 0.247 | 0.011 | 0.57 | 49 |
30 | 0.234 | 0.009 | 0.61 | 52 |
32 | 0.254 | 0.01 | 0.54 | 46 |
34 | 0.234 | 0.009 | 0.51 | 47 |
36 | 0.234 | 0.009 | 0.47 | 45 |
38 | 0.213 | 0.008 | 0.46 | 46 |
40 | 0.254 | 0.01 | 0.38 | 36 |
40 | 0.193 | 0.008 | 0.44 | 48 |
40 | 0.152 | 0.006 | 0.46 | 58 |
42 | 0.193 | 0.008 | 0.41 | 46 |
44 | 0.173 | 0.007 | 0.4 | 49 |
46 | 0.173 | 0.007 | 0.38 | 47 |
48 | 0.173 | 0.007 | 0.38 | 47 |
50 | 0.23 | 0.009 | 0.28 | 30 |
50 | 0.173 | 0.007 | 0.34 | 43 |
50 | 0.132 | 0.005 | 0.38 | 55 |
60 × 50 | 0.193 | 0.008 | - | - |
60 × 50 | 0.173 | 0.007 | - | - |
60 | 0.19 | 0.008 | 0.23 | 30 |
60 | 0.173 | 0.007 | 0.25 | 35 |
60 | 0.122 | 0.005 | 1.3 | 83 |
70 | 0.132 | 0.005 | 0.23 | 40 |
70 | 0.112 | 0.004 | 0.25 | 48 |
80 | 0.14 | 0.006 | 0.18 | 31 |
80 | 0.122 | 0.005 | 0.2 | 38 |
80 | 0.102 | 0.004 | 0.22 | 46 |
90 | 0.112 | 0.004 | 0.17 | 36 |
90 | 0.091 | 0.004 | 0.19 | 46 |
100 | 0.114 | 0.005 | 0.14 | 30 |
100 | 0.102 | 0.004 | 0.15 | 36 |
100 | 0.091 | 0.004 | 0.16 | 41 |
120 × 108 | 0.091 | 0.004 | - | - |
120 | 0.081 | 0.003 | 0.13 | 38 |
120 | 0.071 | 0.003 | 0.14 | 44 |
140 | 0.071 | 0.003 | 0.11 | 37 |
140 | 0.061 | 0.002 | 0.12 | 44 |
150 | 0.061 | 0.002 | 0.11 | 41 |
160 | 0.061 | 0.002 | 0.1 | 38 |
180 | 0.061 | 0.002 | 0.08 | 32 |
180 | 0.051 | 0.002 | 0.09 | 41 |
200 | 0.051 | 0.002 | 0.08 | 36 |
Mesh size and wire diameter can be customized according to special needs. |
Other specifications according to your requirements.
Features of Brass Wire Mesh:
Excellent tensile strength and bending force and extensibility.
The larger the mesh opening, the better the water filtration performance.
Uniform structure and beautiful golden surface.

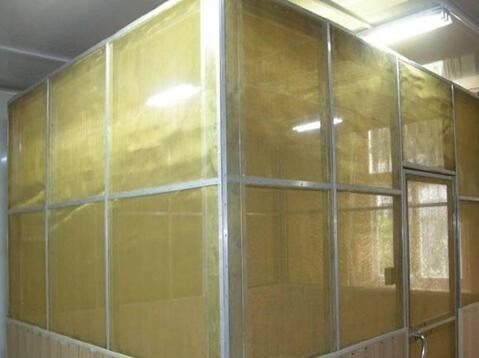

Application of brass mesh:
Architectural decoration. Window screen, room ceilings, staircase railing, cabinet screen, lamp shade, gutter guards and fireplace screens.
Packing:
Brass wire mesh is packed in rolls,winding on a paper tube,wrapped in moisture-proof paper or plastic film, outside wooden cases or wooden pallet.
