High Conductivity Rust Corrosion Copper Woven Wire Mesh

  • High Conductivity Rust Corrosion Copper Woven Wire Mesh
  • High Conductivity Rust Corrosion Copper Woven Wire Mesh
  • High Conductivity Rust Corrosion Copper Woven Wire Mesh
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 10Rolls
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
Delivery Time 2weeks
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Woven Copper Wire Mesh Material Copper Wire
Standard ASTM Hole Shape Square, Rectangle.
Mesh Counts 2 To 200mesh Weaving Type Plain Weave, Twill Weave, Dutch Weave.
Width 0.5-3 M Length 10-50 M
Properties High Conductivity And Rust Corrosion. Usages RFI/EMI/RF Shielding
Highlight

high conductivity copper woven wire mesh

,

rust corrosion copper woven wire mesh

,

high conductivity metal woven wire mesh
Leave a Message
Product Description

 Woven Copper Wire Mesh With Many Usages Has High Conductivity And Rust Corrosion



Copper Woven Wire Mesh Introduction:



Woven copper mesh is similar to a cloth with wire threads woven at right angles. Our plain weave copper cloth is flimsy and easy to cut by common scissors. It has an unpolished surface. Confirming to ASTM E2016-06.

Apart from high conductivity, nonmagnetic feature and corrosive resistance, copper cloth is also easy to be welded to form a rigid sheet with uniform opening size. With opening size from 0.006 inch to 0.075inch, copper cloth is very usable as a strainer or a sieve.

In addition, copper mesh owns special red-orange metallic luster and can be made to a great number of handicrafts or artworks.



Specifications

Material: pure copper proportion 99.9%.
Weaving style: plain weave, twill weave, dutch weave.
Hole shape: square, rectangle.
Width of copper mesh/cloth: 0.5-3 m (can be customized).
Length of copper mesh/cloth: 30 m (can be customized)..



copper mesh and brass wire cloth specification
Mesh/inch Wire diameter Opening Open area
mm inch mm
2 2.03 0.8 10.67 70
2 1.8 0.072 10.9 73
2 1.6 0.063 11.1 76
3 1.6 0.063 6.87 65
4 1.194 0.047 5.16 66
5 0.91 0.035 4.17 67
8 0.711 0.028 2.46 60
6 0.8 0.032 3.43 66
6 0.711 0.028 3.52 69
8 0.61 0.024 2.57 65
8 0.559 0.022 2.62 68
10 0.635 0.025 1.9 56
10 0.559 0.022 1.98 61
10 0.508 0.02 2.03 64
12 0.584 0.023 1.47 52
12 0.457 0.018 1.66 61
14 0.5 0.02 1.31 52
14 0.457 0.018 1.36 56
14 0.417 0.016 1.4 59
16 0.457 0.018 1.12 50
16 0.345 0.014 1.24 61
16 0.315 0.012 1.27 64
18 0.45 0.018 0.96 46
18 0.432 0.017 0.97 48
18 0.315 0.012 1.1 60
20 0.315 0.012 0.96 56
20 0.247 0.011 0.88 61
22 0.315 0.012 0.84 53
24 0.315 0.012 0.74 49
26 0.295 0.012 0.68 49
28 0.295 0.012 0.61 45
20 0.407 0.016 0.86 46
30 0.305 0.012 0.53 40
30 0.247 0.011 0.57 49
30 0.234 0.009 0.61 52
32 0.254 0.01 0.54 46
34 0.234 0.009 0.51 47
36 0.234 0.009 0.47 45
38 0.213 0.008 0.46 46
40 0.254 0.01 0.38 36
40 0.193 0.008 0.44 48
40 0.152 0.006 0.46 58
42 0.193 0.008 0.41 46
44 0.173 0.007 0.4 49
46 0.173 0.007 0.38 47
48 0.173 0.007 0.38 47
50 0.23 0.009 0.28 30
50 0.173 0.007 0.34 43
50 0.132 0.005 0.38 55
60 × 50 0.193 0.008 - -
60 × 50 0.173 0.007 - -
60 0.19 0.008 0.23 30
60 0.173 0.007 0.25 35
60 0.122 0.005 1.3 83
70 0.132 0.005 0.23 40
70 0.112 0.004 0.25 48
80 0.14 0.006 0.18 31
80 0.122 0.005 0.2 38
80 0.102 0.004 0.22 46
90 0.112 0.004 0.17 36
90 0.091 0.004 0.19 46
100 0.114 0.005 0.14 30
100 0.102 0.004 0.15 36
100 0.091 0.004 0.16 41
120 × 108 0.091 0.004 - -
120 0.081 0.003 0.13 38
120 0.071 0.003 0.14 44
140 0.071 0.003 0.11 37
140 0.061 0.002 0.12 44
150 0.061 0.002 0.11 41
160 0.061 0.002 0.1 38
180 0.061 0.002 0.08 32
180 0.051 0.002 0.09 41
200 0.051 0.002 0.08 36
Mesh size and wire diameter can be customized according to special needs.


Other specifications according to your requirements.



Features:

High conductivity and rust corrosion.
Uniform opening.
Red-orange metallic luster.
Flexibility.
Easy to cut with scissors.


Application:


RFI/EMI/RF Shielding
Electronic information security
Faraday Cages
Power generation
Insect Screens
Outer space exploration and research
Fireplace Screen
Electronic security

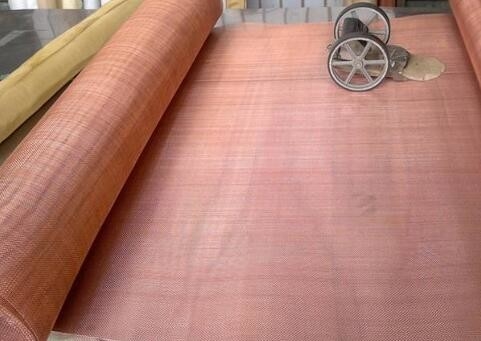

High Conductivity Rust Corrosion Copper Woven Wire Mesh 0

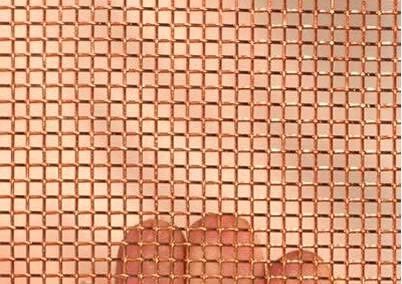

High Conductivity Rust Corrosion Copper Woven Wire Mesh 1

High Conductivity Rust Corrosion Copper Woven Wire Mesh 2

High Conductivity Rust Corrosion Copper Woven Wire Mesh 3

High Conductivity Rust Corrosion Copper Woven Wire Mesh 4

Packing:



Wire mesh is packed in rolls,winding on a paper tube,wrapped in moisture-proof paper or plastic film, outside wooden cases or wooden pallet.
