Corrosion Resistance Phosphor Woven Copper Mesh Cloth For Filter And Screen

  • Corrosion Resistance Phosphor Woven Copper Mesh Cloth For Filter And Screen
  • Corrosion Resistance Phosphor Woven Copper Mesh Cloth For Filter And Screen
  • Corrosion Resistance Phosphor Woven Copper Mesh Cloth For Filter And Screen
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 10Rolls
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
Delivery Time 2weeks
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Phosphor Copper Mesh Cloth Material Phosphor Copper Wire
Standard ASTM Hole Shape Square, Rectangle.
Mesh Counts 2 To 200mesh Weaving Type Plain Weave, Twill Weave, Dutch Weave.
Width 0.5-1.5 M Or As Your Requirement. Length 15-100 M Or As Your Requirement.
Properties Corrosion, Wear, Tear, Rust, Fatigue, Acid And Alkali Resistance. Usages Sieving And Filtering Granule, Powder, Porcelain Clay And Glass, Chinaware Printing, Grain, Filtering Liquid And Gas.
High Light

corrosion resistance woven copper mesh

,

phosphor woven copper mesh

,

filter metal woven wire mesh
Leave a Message
Product Description

Phosphor Copper Mesh Cloth With Good Corrosion Resistance For Filter And Screen



Phosphor Copper Mesh Clot Introduction:



Phosphor copper mesh cloth is made of the alloy of phosphor, tin and copper. This alloy has good ductility, high toughness, high strength. Phosphor copper mesh cloth with higher copper content makes it more corrosion resistance than brass mesh cloth. It is harder and stronger than copper mesh cloth. Phosphor copper mesh cloth can be used to sieve and filter granule, powder, porcelain clay and glass, chinaware printing, grain, filtering liquid and gas. It also can be the filter in pharmacy, food, industry, chemical industry, paper making, metallurgy or the screen for window and door.



Specifications

Material: phosphor copper (0.03%-0.35% phosphor, 5%-8% tin, other is copper)
Weaving methods: plain weave, twill weave or dutch weave.
Width: 0.5-1.5 m or as your requirement.
Length: 15-100 m or as your requirement.





Phosphor copper mesh or cloth specification
Mesh/inch Wire diameter Opening (mm)
SWG mm Inch
6 22 0.711 0.028 3.522
8 23 0.61 0.024 2.565
10 25 0.508 0.02 2.032
12 26 0.457 0.018 1.66
14 27 0.417 0.016 1.397
16 29 0.345 0.014 1.243
18 30 0.315 0.0124 1.096
20 30 0.315 0.0124 0.955
22 30 0.315 0.0124 0.84
24 30 0.315 0.0124 0.743
26 31 0.295 0.0116 0.682
28 31 0.295 0.0116 0.612
30 32 0.247 0.011 0.573
32 33 0.254 0.01 0.54
34 34 0.234 0.0092 0.513
36 34 0.234 0.0092 0.472
38 35 0.213 0.0084 0.455
40 36 0.193 0.0076 0.442
42 36 0.193 0.0076 0.412
44 37 0.173 0.0068 0.404
46 37 0.173 0.0068 0.379
48 37 0.173 0.0068 0.356
50 37 0.173 0.0068 0.335
60 × 50 36 0.193 0.0076 -
60 × 50 37 0.173 0.0068 -
60 37 0.173 0.0068 0.25
70 39 0.132 0.0052 0.231
80 40 0.122 0.0048 0.196
80 42 0.102 0.004 0.271
90 41 0.112 0.0044 0.17
100 42 0.102 0.004 0.152
100 43 0.091 0.0036 0.168
120 × 108 43 0.091 0.0036 -
120 44 0.081 0.0032 0.131
120 45 0.071 0.0028 0.14
140 46 0.061 0.0024 0.12
150 46 0.061 0.0024 0.108
160 46 0.061 0.0024 0.098
180 47 0.051 0.002 0.09
200 47 0.051 0.002 0.076
220 48 0.041 0.0016 0.065
250 48 0.041 0.0016 0.061

Other specifications according to your requirements.

Features:

Corrosion, wear, tear, rust, fatigue, acid and alkali resistance.
Non-magnetic, good ductility, high toughness, high strength.
Good electricity and heat conductivity.
Phosphor copper wire mesh with higher copper content makes it more corrosion resistance than brass mesh cloth. It is harder and stronger than copper mesh cloth.


Application:


Sieving and filtering granule, powder, porcelain clay and glass, chinaware printing, grain, filtering liquid and gas.
Filter in pharmacy, food, industry, chemical industry, paper making, metallurgy.
Mesh for construction, protection, decoration.
EMF/RFI shielding, faraday cage.
Used in heater elements, air conditioners and refrigerators.
Window screen or door screen to prevent insect.

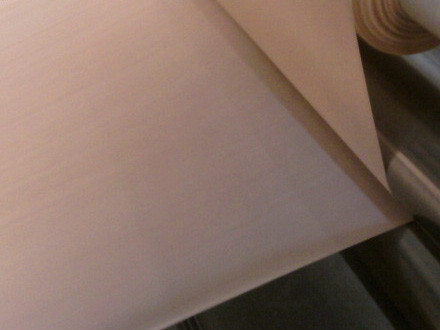

Corrosion Resistance Phosphor Woven Copper Mesh Cloth For Filter And Screen 0

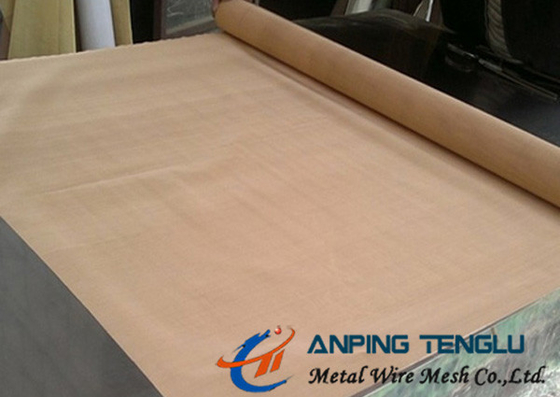

Corrosion Resistance Phosphor Woven Copper Mesh Cloth For Filter And Screen 1







Packing:



Wire mesh is packed in rolls,winding on a paper tube,wrapped in moisture-proof paper or plastic film, outside wooden cases or wooden pallet.



Corrosion Resistance Phosphor Woven Copper Mesh Cloth For Filter And Screen 2
