Pure 99.9% Copper Metal Woven Wire Mesh Cloth For Shielding Or Filtering

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | Copper Wire Mesh | Material | Copper Wire |
---|---|---|---|
Standard | ASTM | Hole Shape | Square, Rectangle. |
Mesh Counts | 2 To 200mesh | Weaving Type | Plain Weave, Twill Weave, Dutch Weave. |
Width | 0.5-3 M | Length | 10-50 M |
Properties | Anti-sparking, Anti-static. | Usages | Used For Filtering Electron Beam And Electronic Display Screen. |
Highlight | 99.9% copper metal woven wire mesh,shielding metal woven wire mesh,filtering woven copper cloth |

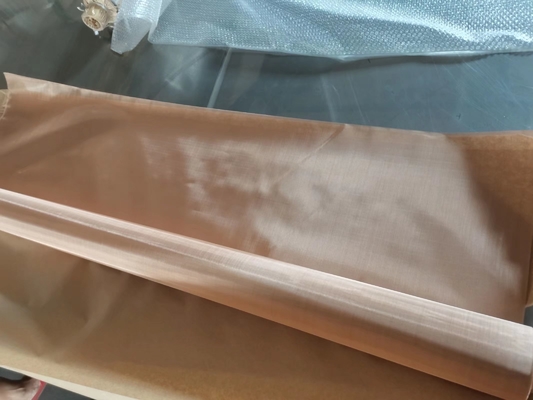

Pure Copper 99.9% Copper Mesh Cloth For Shielding Or Filtering
Copper Woven Wire Mesh Introduction:
Copper mesh cloth can be distinguished by the size of hole. Copper mesh has large holes, copper wire cloth has very small holes, looks like cloth. They have smooth surface, bright color, good electricity and heat conductivity, good toughness, can resistant to corrosion, abrasion, wear, rust, salt air, brine, acid and alkali. They can be used for decorative mesh of house facades, walls, ceilings, lamps, cabinet, also can used as filtration screen in mine, metallurgy, construction, pharmacy, printing, petroleum, rubber, paper making and food and other industries.
Specifications
Material: pure copper proportion 99.9%.
Weaving style: plain weave, twill weave, dutch weave.
Hole shape: square, rectangle.
Width of copper mesh/cloth: 0.5-3 m (can be customized).
Length of copper mesh/cloth: 30 m (can be customized)..
copper mesh and brass wire cloth specification | ||||
Mesh/inch | Wire diameter | Opening | Open area | |
mm | inch | mm | ||
2 | 2.03 | 0.8 | 10.67 | 70 |
2 | 1.8 | 0.072 | 10.9 | 73 |
2 | 1.6 | 0.063 | 11.1 | 76 |
3 | 1.6 | 0.063 | 6.87 | 65 |
4 | 1.194 | 0.047 | 5.16 | 66 |
5 | 0.91 | 0.035 | 4.17 | 67 |
8 | 0.711 | 0.028 | 2.46 | 60 |
6 | 0.8 | 0.032 | 3.43 | 66 |
6 | 0.711 | 0.028 | 3.52 | 69 |
8 | 0.61 | 0.024 | 2.57 | 65 |
8 | 0.559 | 0.022 | 2.62 | 68 |
10 | 0.635 | 0.025 | 1.9 | 56 |
10 | 0.559 | 0.022 | 1.98 | 61 |
10 | 0.508 | 0.02 | 2.03 | 64 |
12 | 0.584 | 0.023 | 1.47 | 52 |
12 | 0.457 | 0.018 | 1.66 | 61 |
14 | 0.5 | 0.02 | 1.31 | 52 |
14 | 0.457 | 0.018 | 1.36 | 56 |
14 | 0.417 | 0.016 | 1.4 | 59 |
16 | 0.457 | 0.018 | 1.12 | 50 |
16 | 0.345 | 0.014 | 1.24 | 61 |
16 | 0.315 | 0.012 | 1.27 | 64 |
18 | 0.45 | 0.018 | 0.96 | 46 |
18 | 0.432 | 0.017 | 0.97 | 48 |
18 | 0.315 | 0.012 | 1.1 | 60 |
20 | 0.315 | 0.012 | 0.96 | 56 |
20 | 0.247 | 0.011 | 0.88 | 61 |
22 | 0.315 | 0.012 | 0.84 | 53 |
24 | 0.315 | 0.012 | 0.74 | 49 |
26 | 0.295 | 0.012 | 0.68 | 49 |
28 | 0.295 | 0.012 | 0.61 | 45 |
20 | 0.407 | 0.016 | 0.86 | 46 |
30 | 0.305 | 0.012 | 0.53 | 40 |
30 | 0.247 | 0.011 | 0.57 | 49 |
30 | 0.234 | 0.009 | 0.61 | 52 |
32 | 0.254 | 0.01 | 0.54 | 46 |
34 | 0.234 | 0.009 | 0.51 | 47 |
36 | 0.234 | 0.009 | 0.47 | 45 |
38 | 0.213 | 0.008 | 0.46 | 46 |
40 | 0.254 | 0.01 | 0.38 | 36 |
40 | 0.193 | 0.008 | 0.44 | 48 |
40 | 0.152 | 0.006 | 0.46 | 58 |
42 | 0.193 | 0.008 | 0.41 | 46 |
44 | 0.173 | 0.007 | 0.4 | 49 |
46 | 0.173 | 0.007 | 0.38 | 47 |
48 | 0.173 | 0.007 | 0.38 | 47 |
50 | 0.23 | 0.009 | 0.28 | 30 |
50 | 0.173 | 0.007 | 0.34 | 43 |
50 | 0.132 | 0.005 | 0.38 | 55 |
60 × 50 | 0.193 | 0.008 | - | - |
60 × 50 | 0.173 | 0.007 | - | - |
60 | 0.19 | 0.008 | 0.23 | 30 |
60 | 0.173 | 0.007 | 0.25 | 35 |
60 | 0.122 | 0.005 | 1.3 | 83 |
70 | 0.132 | 0.005 | 0.23 | 40 |
70 | 0.112 | 0.004 | 0.25 | 48 |
80 | 0.14 | 0.006 | 0.18 | 31 |
80 | 0.122 | 0.005 | 0.2 | 38 |
80 | 0.102 | 0.004 | 0.22 | 46 |
90 | 0.112 | 0.004 | 0.17 | 36 |
90 | 0.091 | 0.004 | 0.19 | 46 |
100 | 0.114 | 0.005 | 0.14 | 30 |
100 | 0.102 | 0.004 | 0.15 | 36 |
100 | 0.091 | 0.004 | 0.16 | 41 |
120 × 108 | 0.091 | 0.004 | - | - |
120 | 0.081 | 0.003 | 0.13 | 38 |
120 | 0.071 | 0.003 | 0.14 | 44 |
140 | 0.071 | 0.003 | 0.11 | 37 |
140 | 0.061 | 0.002 | 0.12 | 44 |
150 | 0.061 | 0.002 | 0.11 | 41 |
160 | 0.061 | 0.002 | 0.1 | 38 |
180 | 0.061 | 0.002 | 0.08 | 32 |
180 | 0.051 | 0.002 | 0.09 | 41 |
200 | 0.051 | 0.002 | 0.08 | 36 |
Mesh size and wire diameter can be customized according to special needs. |
Other specifications according to your requirements.
Features:
Good electricity and heat conductivity, good toughness.
Non-magnetic, well sound-proof.
Anti-sparking, anti-static.
Resistant to corrosion, abrasion, rust, salt air, brine, acid, alkali.
Low tensile strength, low hardness.
Soft, flexibility, bent easily, weld easily.
Easy to install, can be cut by scissors.
Long service life.
Application:
Used for filtering electron beam and electronic display screen.
Used in traveling water screen, radio frequency interference shielding, sugar and marine application.
Sieving and filtering granule, powder, porcelain clay and glass, chinaware printing, grain, filtering liquid and gas.
Screen filtration in mine, metallurgy, construction, pharmacy, printing, petroleum, rubber, paper making and food and other industries.
Used for gutter guards, plumbing screen, snail control, fireplace screen, RFI shielding, Faraday cage, house vents.
Decorative mesh for house facades, walls, ceilings, lamps, cabinet.
Used for sculptures and crafts.
Packing:

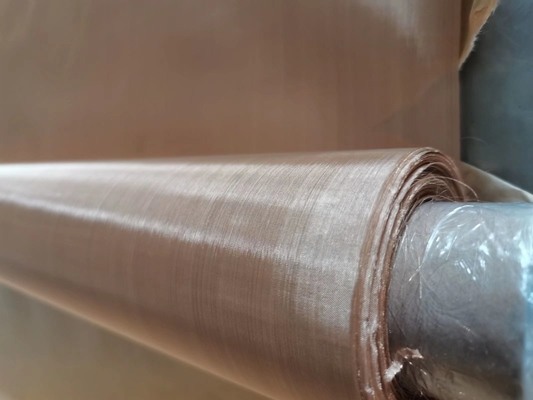

Wire mesh is packed in rolls,winding on a paper tube,wrapped in moisture-proof paper or plastic film, outside wooden cases or wooden pallet.
